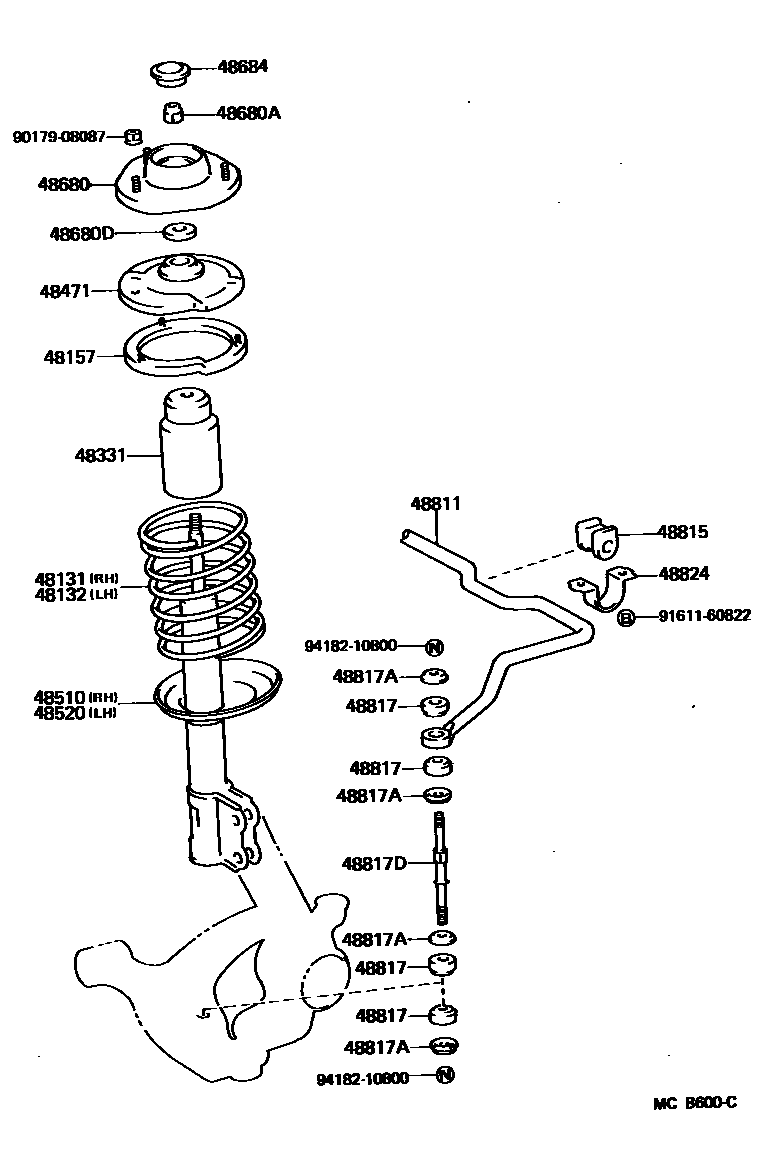

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W/COOLER
W/COOLER
W/COOLER
*HRP 1
*HRP A
*HRP 2 ORS;*HRP 1 ORA (W/COOLER)
*HRP 1
*HRP 1 ORA (W/COOLER)
*HRP A
*HRP 2 ORS (W/COOLER)
48132SPRING, FRONT COIL, LH
W/COOLER
165/70 SR13 TIRE
W/COOLER
*HRP 1
W/COOLER
*HRP A
*HRP 1 OR A(W/COOLER);*HRP 2
*HRP
*HRP A
*HRP 2 OR S(W/COOLER)
*HRP A
*HRP 2 OR S(W/COOLER)
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48471SEAT, FRONT SPRING, UPPER
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-10420
sub48510-10131
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48510-10131
sub48520-10400
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
INDONESIA SPEC
INDONESIA SPEC
48815BUSH, FRONT STABILIZER BAR, NO.1
INDONESIA SPEC
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48824BRACKET, STABILIZER, FRONT
9017908087
main90179-08087
9161160822
main91611-60822
9418210800
main94182-10800
20 parts on this diagram · 1 diagram in section
