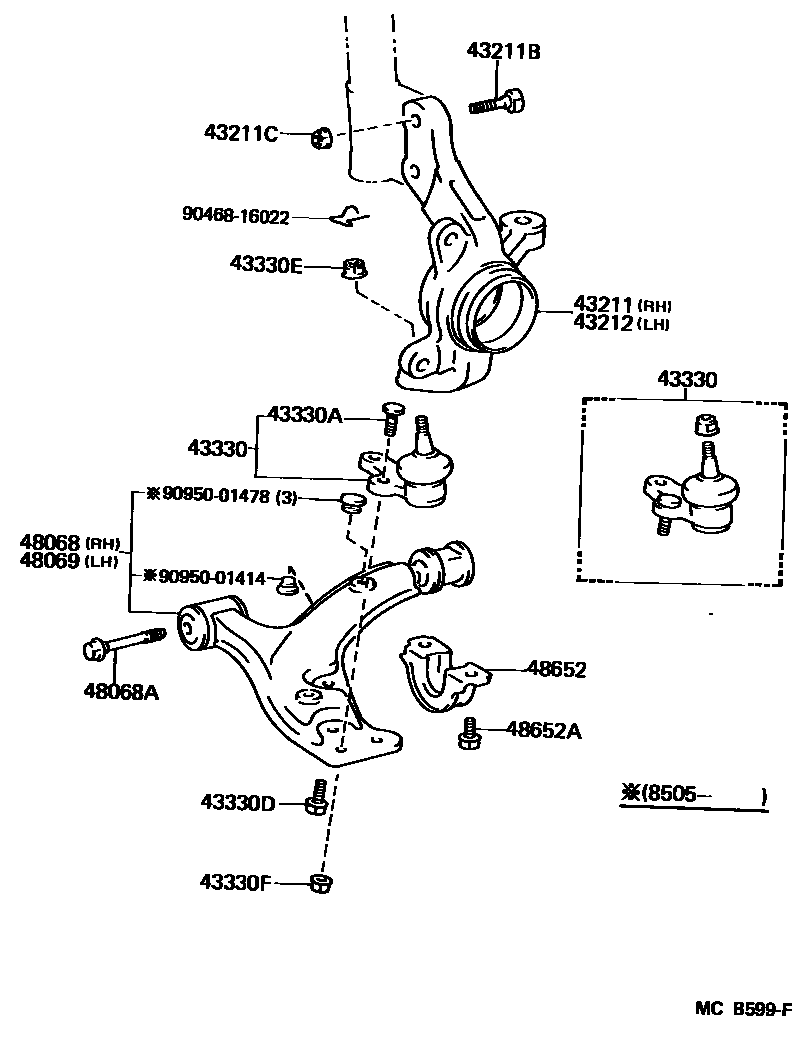

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-10050iEP7#198410-198701

main43211-10051iEP7#198701-198912

43211BBOLT (FOR ABSORBER SETTING)

main90105-12042iEP7#198410-198701

sub90105-12263

main90105-15001iEP7#198701-198912

43211CNUT (FOR ABSORBER SETTING)

main90179-12025iEP7#198410-198701

main90179-15001iEP7#198701-198912

43212KNUCKLE, STEERING, LH

main43212-10030iEP7#198410-198701

main43212-10031iEP7#198701-198912

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19045iEP7#198410-198904

sub43330-19075

main43330-19075iEP7#198904-198912

43330ASERRATION BOLT(FOR FRONT LOWER BALL JOINT)

main90114-10012iEP7#198410-198805

main90114-10036iEP7#198805-198912

sub90114-10032

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-10069iEP7#198410-198510

main90119-10407iEP7#198510-198912

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90179-12007iEP7#198904-198912

sub94115-71200

sub94512-01200

sub94611-11200

main90179-12027iEP7#198410-198904

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10054iEP7#198410-198510

main90179-10087iEP7#198510-198512

main90179-10088iEP7#198512-198912

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10051iEP7#198410-198608

sub48068-16040

main48068-16040iEP7#198608-198912

sub48068-16060

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12089iEP7#198410-198510

sub90119-12099

main90119-12099iEP7#198510-198912

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10031iEP7#198410-198608

sub48069-16040

main48069-16040iEP7#198608-198912

sub48069-16060

48652BRACKET, FRONT LOWER ARM

main48652-10010iEP7#198410-198912

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iEP7#198410-198912

9046816022

main90468-16022

9095001414

main90950-01414

9095001478

main90950-01478

17 parts on this diagram · 1 diagram in section
