BRAKE BOOSTER & VACUUM TUBE

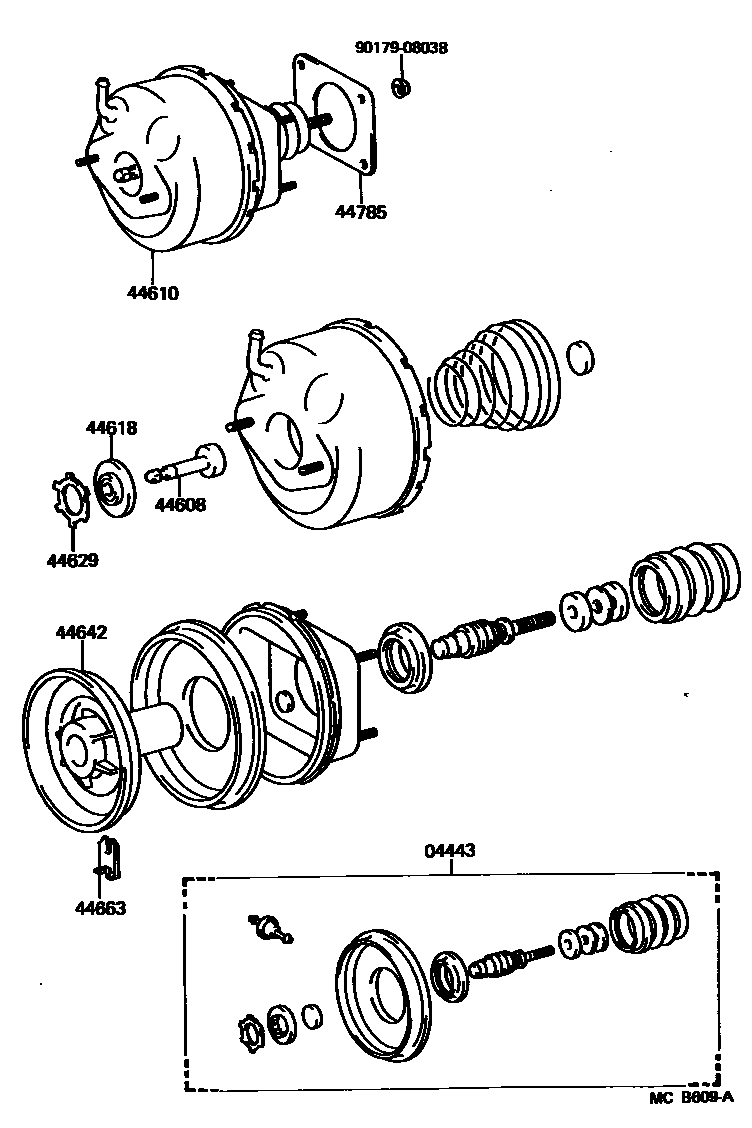

Parts diagram

04443BOOSTER KIT, BRAKE

main04443-10070i¥8,000198410-198912

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520i¥2,660198410-198912

44610BOOSTER ASSY, BRAKE

main44610-10070i¥31,400198410-198912

44618SEAL, BOOSTER BODY

main44621-28120i¥590198410-198912

44629RING, CIRCULAR INTERNAL

main44628-28120i¥390198410-198912

44642PISTON, BRAKE BOOSTER

main44642-10070i¥3,460198410-198912

44663KEY, VALVE STOPPER

main44635-12480i¥200198410-198912

44785GASKET, BRAKE BOOSTER

main44785-14010i¥250198410-198912

9017908038

main90179-08038¥130

9 parts on this diagram · 2 diagrams in section
