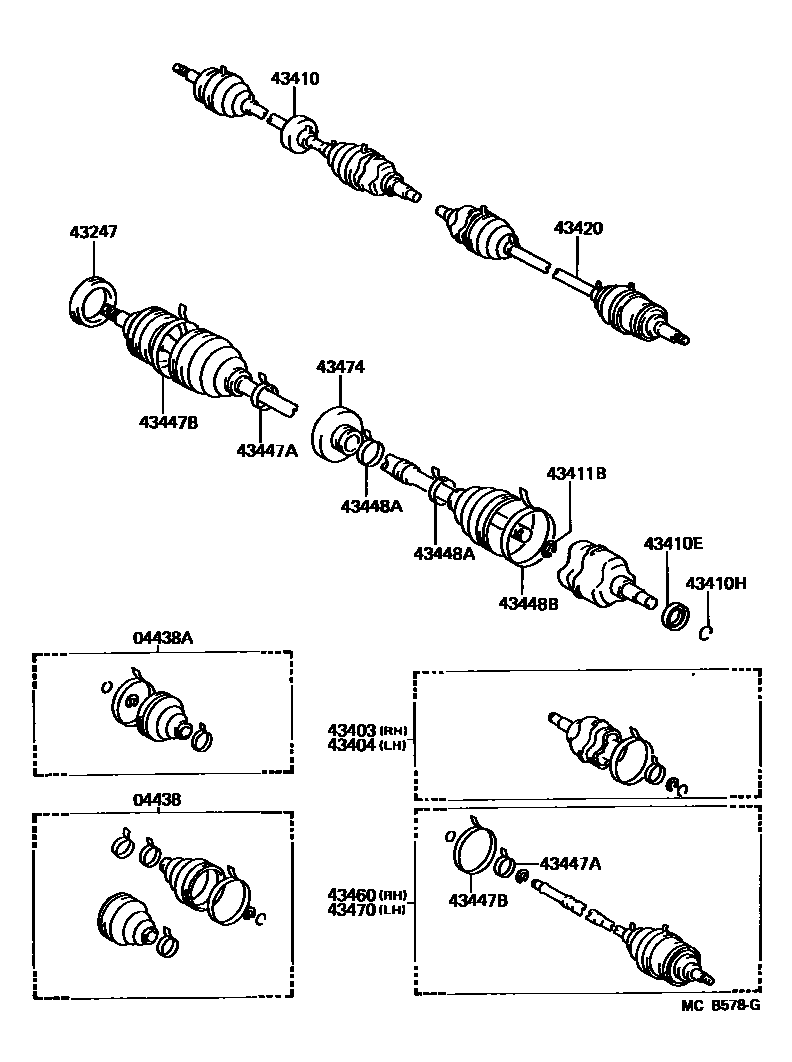

FRONT DRIVE SHAFT
43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2
43410SHAFT ASSY, FRONT DRIVE, RH
sub43410-10020
43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)
43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
sub90520-22029
43420SHAFT ASSY, FRONT DRIVE, LH
sub43420-10020
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43474DAMPER, DRIVE SHAFT
17 parts on this diagram · 1 diagram in section
