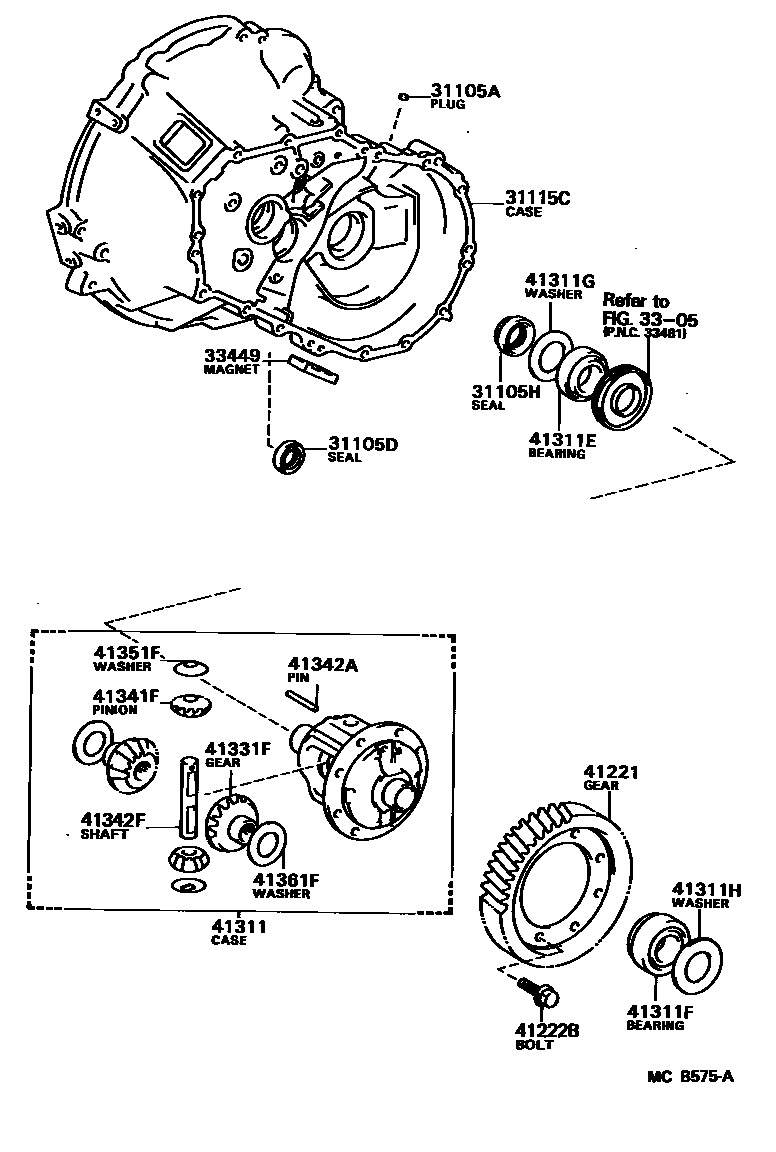

FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
sub90311-34016
31115CCASE, FRONT TRANSAXLE(MTM)
3305
33449MAGNET, TRANSMISSION
sub33449-12020
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.60,T=1.60
T=1.65,T=1.65
T=1.70,T=1.70
T=1.75,T=1.75
T=1.80,T=1.80
T=1.85,T=1.85
T=1.90,T=1.90
T=1.95,T=1.95
T=2.00,T=2.00
T=2.05,T=2.05
T=2.10,T=2.10
T=2.15,T=2.15
T=2.20,T=2.20
T=2.25,T=2.25
T=2.30,T=2.30
T=2.35,T=2.35
T=2.40,T=2.40
T=2.45,T=2.45
T=2.50,T=2.50
T=2.55,T=2.55
T=2.60,T=2.60
T=2.65,T=2.65
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50,T=1.50
T=1.55,T=1.55
T=1.60,T=1.60
T=1.65,T=1.65
T=1.70,T=1.70
T=1.75,T=1.75
T=1.00,MARK 02,T=1.0
T=1.10,MARK 03,T=1.1
T=1.20,MARK 04,T=1.2
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.15,MARK 16,T=1.15
19 parts on this diagram · 2 diagrams in section
