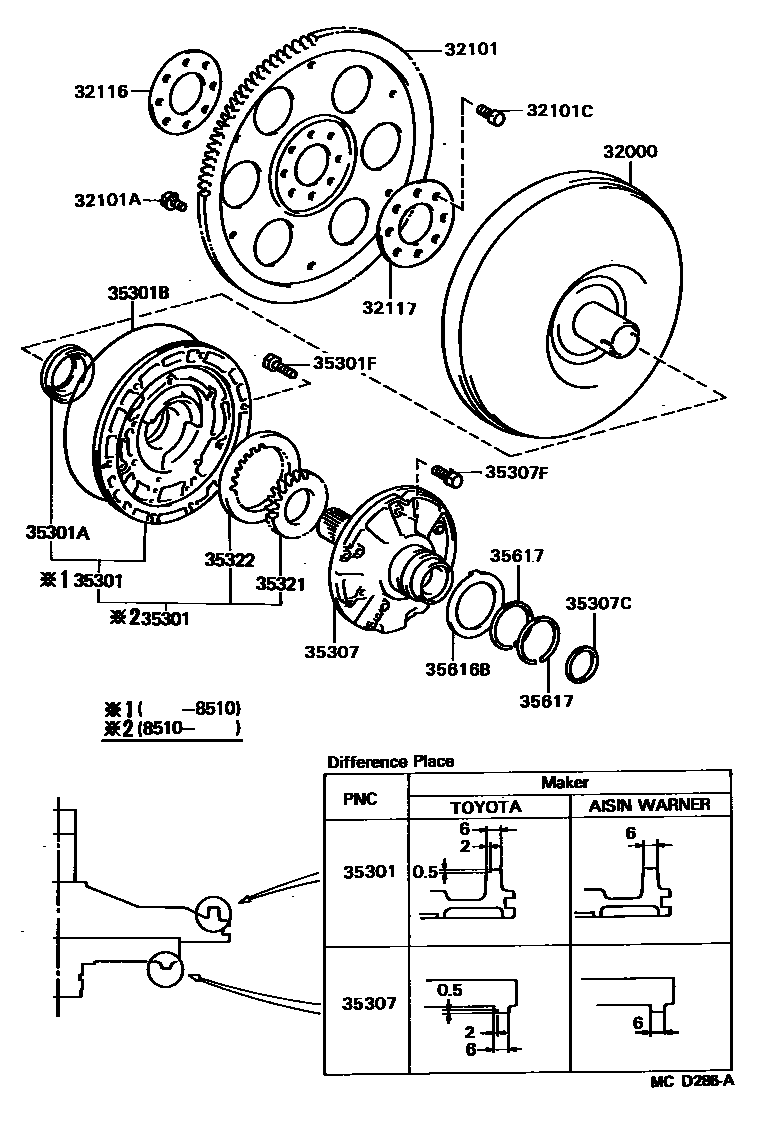

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-10030iEP71..3FC198410-198912

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-10021iEP71..3FC198410-198912

sub32101-10022

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iEP71..3FC198410-198912

*8-1.25PX12-8.4,OLIVE GREEN

main90119-08269×5iEP71..3FC198410-198912

*8-1.25PX12-8,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×6iEP71..3FC198410-198912

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-10020iEP71..3FC198410-198912

32117SPACER, DRIVE PLATE, REAR

main32117-10010iEP71..3FC198410-198912

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iEP71..3FC198604-198912

AISIN-WARNER

main35035-32020iEP71..3FC198604-198912

TOYOTA

sub35035-32H00

main35301-32031iEP71..3FC198410-198604

AISIN-WARNER

main35301-32040iEP71..3FC198411-198604

TOYOTA

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iEP71..3FC198410-198912

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iEP71..3FC198410-198912

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050×7iEP71..3FC198410-198912

*8-1.25PX28-28

35307SHAFT SUB-ASSY, STATOR

main35370-32021iEP71..3FC198410-198412

AISIN-WARNER

main35370-32022iEP71..3FC198412-198912

AISIN-WARNER

sub35370-20H00

sub35370-32H01

main35370-32030iEP71..3FC198411-198412

TOYOTA

main35370-32031iEP71..3FC198412-198912

TOYOTA

sub35370-32H00

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iEP71..3FC198410-198912

T=0.8,T=0.8

main35789-32030iEP71..3FC198410-198912

T=1.4,T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180×11iEP71..3FC198410-198912

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32020iEP71..3FC198410-198604

T=9.465-9.440

main35321-32040iEP71..3FC198604-198912

T=9.440-9.456,MARK A

sub35321-12070

main35321-32050iEP71..3FC198604-198912

T=9.456-9.474,MARK B

sub35321-12090

main35321-32060iEP71..3FC198604-198912

T=9.474-9.490,MARK C

sub35321-12110

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32020iEP71..3FC198410-198604

T=9.465-9.440

main35322-32040iEP71..3FC198604-198912

T=9.440-9.456,MARK A

sub35322-12060

main35322-32050iEP71..3FC198604-198912

T=9.456-9.474,MARK B

sub35322-12080

main35322-32060iEP71..3FC198604-198912

T=9.474-9.490,MARK C

sub35322-12100

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iEP71..3FC198410-198912

35617RING, CLUTCH DRUM OIL SEAL

main35617-22011×2iEP71..3FC198410-198508

main35617-32010×2iEP71..3FC198508-198912

17 parts on this diagram · 1 diagram in section
