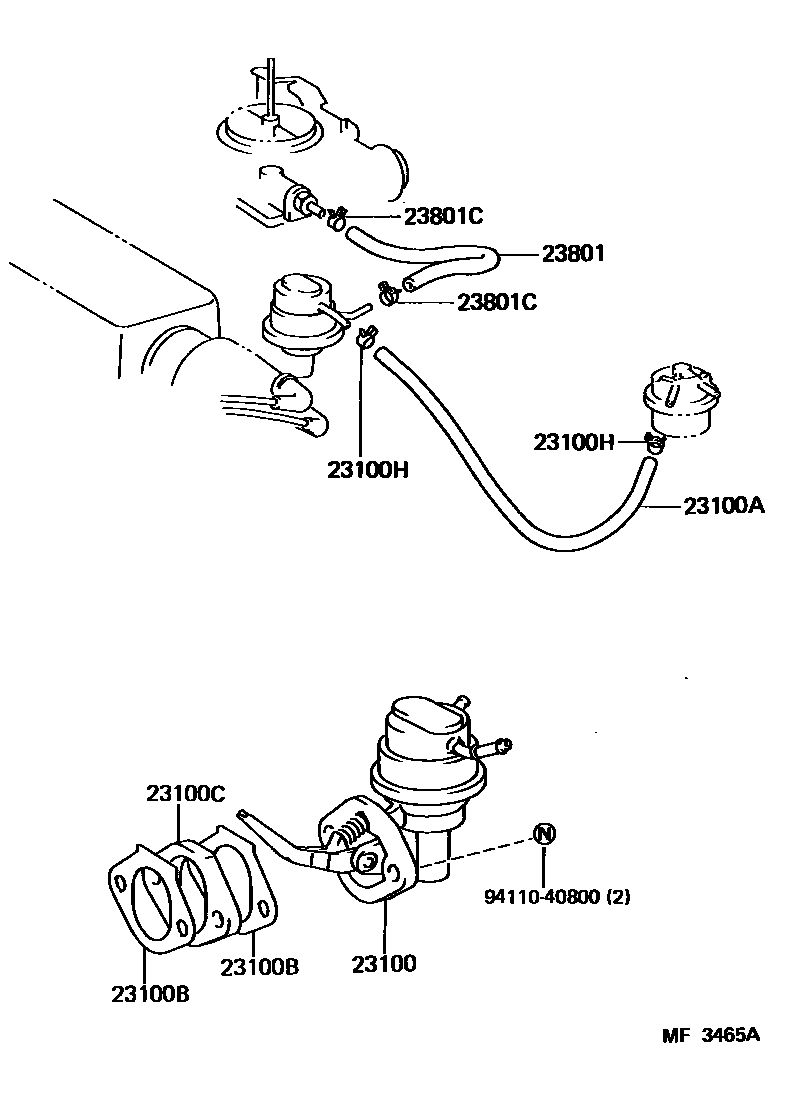

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-10020i1EL,2EL..EP7#198410-198807

main23100-10021i1EL,2EL..EP7#198807-198912

23100AHOSE, FUEL

main95332-06040i1EL,2EL..EP7#198410-198606

*H,L=360

main95333-06036i1EL,2EL..EP7#198606-198702

main95333-06040i1EL,2EL..EP7#198702-198912

23100BGASKET, FUEL PUMP

main90923-05017×2i1EL,2EL..EP7#198410-198912

sub90923-05024

23100CINSULATOR, FUEL PUMP

main23915-10020i1EL,2EL..EP7#198410-198912

sub23915-10021

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i1EL,2EL..EP7#198410-198912

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95332-06010i1EL,2EL..EP7#198410-198701

L=100

main95333-06010i1EL,2EL..EP7#198701-198912

L=100

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-11009×2i1EL,2EL..EP7#198707-198802

sub96135-51100

main90467-11049×2i1EL,2EL..EP7#198802-198912

main96132-30600×2i1EL,2EL..EP7#198410-198707

sub96132-51100

9411040800

main94110-40800

8 parts on this diagram · 1 diagram in section
