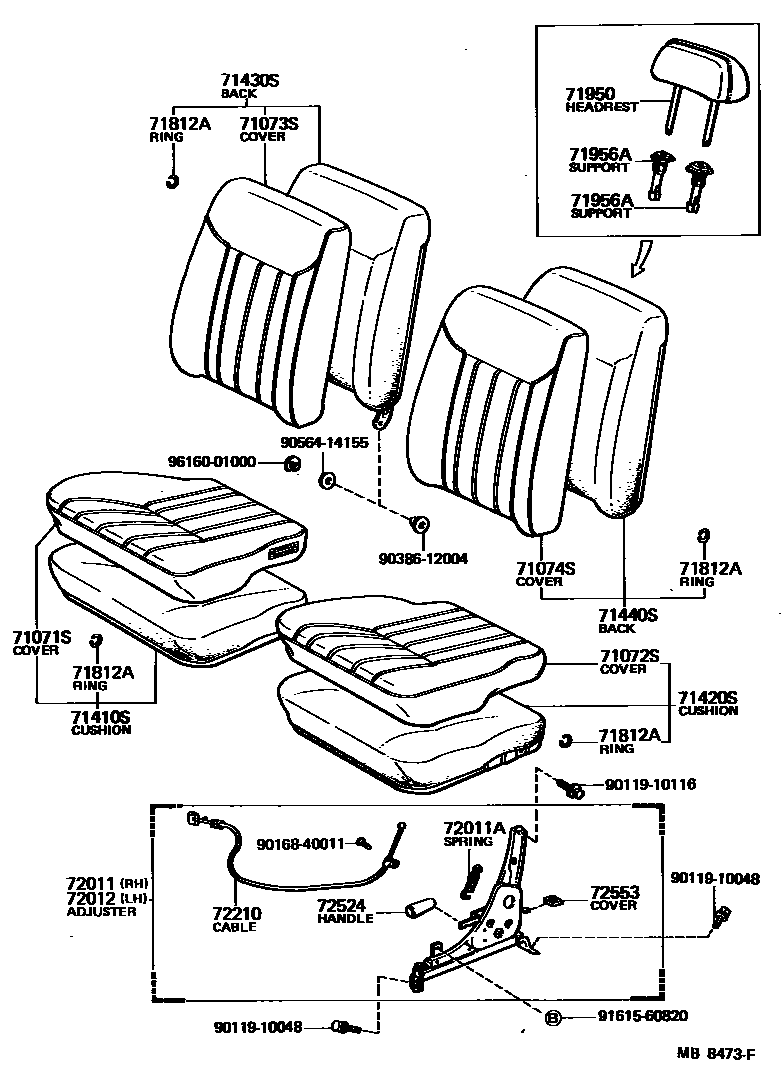

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-10220-01iKP60197802-197808

FB,BLACK,BLACK,TRIM2#

main71071-10220-04iKP60197802-197808

FB,BLUE,BLUE,TRIM8#

main71071-10220-06iKP60197802-197808

FB,LIGHT BROWN,BROWN,TRIM4#

main71071-10221-01iKP6#197808-198005

FB,BLACK,BLACK,TRIM2#

main71071-10221-04iKP6#197808-198005

FB,BLUE,BLUE,TRIM8#

main71071-10221-06iKP6#197808-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71071-10222-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71071-10222-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71071-10222-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71071-10280-01iKP60..GEN197802-197808

VL,BLACK,BLACK,TRIM2#

main71071-10280-04iKP60..GEN197802-197808

VL,BLUE,BLUE,TRIM8#

main71071-10280-06iKP60..GEN197802-197808

VL,LIGHT BROWN,BROWN,TRIM4#

main71071-10281-01iKP6#..GEN197808-197910

VL,BLACK,BLACK,TRIM2#

main71071-10281-04iKP6#..GEN197808-197910

VL,BLUE,BLUE,TRIM8#

main71071-10281-06iKP6#..GEN197808-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71071-10282-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71071-10282-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71071-10282-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71071-10283-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71071-10283-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71071-10283-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71071-10290-01iKP60197802-197808

PF,BLACK,BLACK,TRIM2#

main71071-10290-04iKP60197802-197808

PF,BLUE,BLUE,TRIM8#

main71071-10290-06iKP60197802-197808

PF,LIGHT BROWN,BROWN,TRIM4#

main71071-10291-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197808-197910

PF,BLACK,BLACK,TRIM2#

main71071-10291-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197808-197910

PF,BLUE,BLUE,TRIM8#

main71071-10291-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197808-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71071-10292-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71071-10292-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71071-10292-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71071-10293-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71071-10293-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71071-10293-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71071-10301-01iKP6#..SED198108-198208

FULL FB,BLACK,BLACK,TRIM2#

main71071-10301-04iKP6#..SED..EUR198005-198108

FULL FB,BLUE,BLUE,TRIM8#

main71071-10301-06iKP6#..SED..EUR198005-198108

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71071-10420-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71071-10420-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71071-10420-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71071-10430-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71071-10430-03iKP6#..DLX,STD198208-198409

SEMI FB,GRAY,GRAY,TRIM1#

main71071-10430-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71071-10440-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71071-10440-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71071-10440-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71071-10450-02iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,SEMI FB,RED,RED/MAROON

main71071-10450-09iKP61..S198208-198409

SEMI FB,YELLOW,YELLOW,TRIM1#

main71071-10460-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71071-10460-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71071-10460-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-10200-01iKP60197802-197808

FB,BLACK,BLACK,TRIM2#

main71072-10200-04iKP60197802-197808

FB,BLUE,BLUE,TRIM8#

main71072-10200-06iKP60197802-197808

FB,LIGHT BROWN,BROWN,TRIM4#

main71072-10201-01iKP6#197808-198005

FB,BLACK,BLACK,TRIM2#

main71072-10201-04iKP6#197808-198005

FB,BLUE,BLUE,TRIM8#

main71072-10201-06iKP6#197808-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71072-10202-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71072-10202-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71072-10202-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71072-10260-01iKP60..GEN197802-197808

VL,BLACK,BLACK,TRIM2#

main71072-10260-04iKP60..GEN197802-197808

VL,BLUE,BLUE,TRIM8#

main71072-10260-06iKP60..GEN197802-197808

VL,LIGHT BROWN,BROWN,TRIM4#

main71072-10261-01iKP6#..GEN197808-197910

VL,BLACK,BLACK,TRIM2#

main71072-10261-04iKP6#..GEN197808-197910

VL,BLUE,BLUE,TRIM8#

main71072-10261-06iKP6#..GEN197808-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71072-10262-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71072-10262-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71072-10262-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71072-10263-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71072-10263-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71072-10263-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71072-10270-01iKP60197802-197808

PF,BLACK,BLACK,TRIM2#

main71072-10270-04iKP60197802-197808

PF,BLUE,BLUE,TRIM8#

main71072-10270-06iKP60197802-197808

PF,LIGHT BROWN,BROWN,TRIM4#

main71072-10271-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197808-197910

PF,BLACK,BLACK,TRIM2#

main71072-10271-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197808-197910

PF,BLUE,BLUE,TRIM8#

main71072-10271-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197808-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71072-10272-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71072-10272-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71072-10272-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71072-10273-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71072-10273-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71072-10273-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71072-10281-01iKP6#..SED..EUR198005-198108

FULL FB,BLACK,BLACK,TRIM2#

main71072-10281-04iKP6#..SED198108-198208

FULL FB,BLUE,BLUE,TRIM8#

main71072-10281-06iKP6#..SED..EUR198005-198108

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71072-10400-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71072-10400-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71072-10400-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71072-10410-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71072-10410-03iKP6#..DLX,STD198208-198409

SEMI FB,GRAY,GRAY,TRIM1#

main71072-10410-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71072-10420-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71072-10420-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71072-10420-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71072-10430-02iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,SEMI FB,RED,RED/MAROON

main71072-10430-09iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,SEMI FB,YELLOW,YELLOW

main71072-10440-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71072-10440-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71072-10440-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-10230-01iKP6#197802-198005

FB,BLACK,BLACK,TRIM2#

main71073-10230-04iKP6#197802-198005

FB,BLUE,BLUE,TRIM8#

main71073-10230-06iKP6#197802-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71073-10231-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71073-10231-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71073-10231-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71073-10280-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLACK,BLACK,TRIM2#

main71073-10280-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLUE,BLUE,TRIM8#

main71073-10280-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71073-10281-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71073-10281-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71073-10281-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71073-10282-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71073-10282-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71073-10282-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71073-10291-01iKP6#..SED..EUR198005-198108

FULL FB,BLACK,BLACK,TRIM2#

main71073-10291-04iKP6#..SED..EUR198005-198108

FULL FB,BLUE,BLUE,TRIM8#

main71073-10291-06iKP6#..SED198108-198208

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71073-10300-01iKP6#..GEN197802-197910

VL,BLACK,BLACK,TRIM2#

main71073-10300-04iKP6#..GEN197802-197910

VL,BLUE,BLUE,TRIM8#

main71073-10300-06iKP6#..GEN197802-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71073-10301-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71073-10301-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71073-10301-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71073-10302-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71073-10302-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71073-10302-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71073-10430-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71073-10430-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71073-10430-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71073-10440-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71073-10440-03iKP6#..DLX,STD198208-198409

SEMI FB,GRAY,GRAY,TRIM1#

main71073-10440-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71073-10450-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71073-10450-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71073-10450-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71073-10460-02iKP61..S198208-198409

SEMI FB,RED,RED/MAROON,TRIM1#

main71073-10460-09iKP61..S198208-198409

SEMI FB,YELLOW,YELLOW,TRIM1#

main71073-10470-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71073-10470-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71073-10470-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-10230-01iKP6#197802-198005

FB,BLACK,BLACK,TRIM2#

main71073-10230-04iKP6#197802-198005

FB,BLUE,BLUE,TRIM8#

main71073-10230-06iKP6#197802-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71073-10231-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71073-10231-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71073-10231-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71073-10280-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLACK,BLACK,TRIM2#

main71073-10280-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLUE,BLUE,TRIM8#

main71073-10280-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71073-10281-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71073-10281-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71073-10281-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71073-10282-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71073-10282-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71073-10282-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71073-10291-01iKP6#..SED..EUR198005-198108

FULL FB,BLACK,BLACK,TRIM2#

main71073-10291-04iKP6#..SED198108-198208

FULL FB,BLUE,BLUE,TRIM8#

main71073-10291-06iKP6#..SED..EUR198005-198108

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71073-10300-01iKP6#..GEN197802-197910

VL,BLACK,BLACK,TRIM2#

main71073-10300-04iKP6#..GEN197802-197910

VL,BLUE,BLUE,TRIM8#

main71073-10300-06iKP6#..GEN197802-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71073-10301-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71073-10301-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71073-10301-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71073-10302-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71073-10302-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71073-10302-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71073-10430-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71073-10430-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71073-10430-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71073-10440-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71073-10440-03iKP6#..DLX,STD198208-198409

SEM FB,GRAY,GRAY,TRIM1#

main71073-10440-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71073-10450-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71073-10450-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71073-10450-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71073-10460-02iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,SEMI FB,RED,RED/MAROON

main71073-10460-09iKP60..STD..EUG198302-198409

BELGIUM CAMPAIN,SEMI FB,YELLOW,YELLOW

main71073-10470-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71073-10470-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71073-10470-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-10330-01iKP6#197802-198005

FB,BLACK,BLACK,TRIM2#

main71410-10330-04iKP6#197802-198005

FB,BLUE,BLUE,TRIM8#

main71410-10330-06iKP6#197802-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71410-10331-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71410-10331-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71410-10331-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71410-10390-01iKP6#..GEN197802-197910

VL,BLACK,BLACK,TRIM2#

main71410-10390-04iKP6#..GEN197802-197910

VL,BLUE,BLUE,TRIM8#

main71410-10390-06iKP6#..GEN197802-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71410-10391-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71410-10391-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71410-10391-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71410-10392-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71410-10392-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71410-10392-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71410-10400-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLACK,BLACK,TRIM2#

main71410-10400-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLUE,BLUE,TRIM8#

main71410-10400-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71410-10401-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71410-10401-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71410-10401-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71410-10402-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71410-10402-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71410-10402-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71410-10411-01iKP6#..SED198108-198208

FULL FB,BLACK,BLACK,TRIM2#

main71410-10411-04iKP6#..SED..EUR198005-198108

FULL FB,BLUE,BLUE,TRIM8#

main71410-10411-06iKP6#..SED..EUR198005-198108

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71410-10550-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71410-10550-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71410-10550-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71410-10560-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71410-10560-03iKP6#..DLX,STD198208-198409

SEMI FB,GRAY,GRAY,TRIM1#

main71410-10560-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71410-10570-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71410-10570-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71410-10570-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71410-10580-02iKP61..S198208-198409

SEMI FB,RED,RED/MAROON,TRIM1#

main71410-10580-09iKP61..S198208-198409

SEMI FB,YELLOW,YELLOW,TRIM1#

main71410-10590-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71410-10590-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71410-10590-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-10180-01iKP6#197802-198005

FB,BLACK,BLACK,TRIM2#

main71420-10180-04iKP6#197802-198005

FB,BLUE,BLUE,TRIM8#

main71420-10180-06iKP6#197802-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71420-10181-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71420-10181-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71420-10181-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71420-10240-01iKP6#..GEN197802-197910

VL,BLACK,BLACK,TRIM2#

main71420-10240-04iKP6#..GEN197802-197910

VL,BLUE,BLUE,TRIM8#

main71420-10240-06iKP6#..GEN197802-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71420-10241-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71420-10241-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71420-10241-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71420-10242-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71420-10242-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71420-10242-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71420-10250-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLACK,BLACK,TRIM2#

main71420-10250-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLUE,BLUE,TRIM8#

main71420-10250-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71420-10251-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71420-10251-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71420-10251-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71420-10252-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71420-10252-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71420-10252-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71420-10261-01iKP6#..SED..EUR198005-198108

FULL FB,BLACK,BLACK,TRIM2#

main71420-10261-04iKP6#..SED..EUR198005-198108

FULL FB,BLUE,BLUE,TRIM8#

main71420-10261-06iKP6#..SED..EUR198005-198108

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71420-10380-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71420-10380-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71420-10380-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71420-10390-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71420-10390-03iKP6#..DLX,STD198208-198409

SEMI FB,GRAY,GRAY,TRIM1#

main71420-10390-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71420-10400-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71420-10400-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71420-10400-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71420-10410-02iKP61..S198208-198409

SEMI FB,RED,RED/MAROON,TRIM1#

main71420-10410-09iKP61..S198208-198409

SEMI FB,YELLOW,YELLOW,TRIM1#

main71420-10420-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71420-10420-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71420-10420-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-10250-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLACK,BLACK,TRIM2#

main71430-10250-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLUE,BLUE,TRIM8#

main71430-10250-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71430-10251-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71430-10251-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71430-10251-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71430-10252-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71430-10252-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71430-10252-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71430-10261-01iKP6#..SED..EUR198005-198108

FULL FB,BLACK,BLACK,TRIM2#

main71430-10261-04iKP6#..SED198108-198208

FULL FB,BLUE,BLUE,TRIM8#

main71430-10261-06iKP6#..SED198108-198208

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71430-10270-01iKP6#197802-198005

FB,BLACK,BLACK,TRIM2#

main71430-10270-04iKP6#197802-198005

FB,BLUE,BLUE,TRIM8#

main71430-10270-06iKP6#197802-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71430-10280-01iKP6#..GEN197802-197910

VL,BLACK,BLACK,TRIM2#

main71430-10280-04iKP6#..GEN197802-197910

VL,BLUE,BLUE,TRIM8#

main71430-10280-06iKP6#..GEN197802-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71430-10281-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71430-10281-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71430-10281-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71430-10282-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71430-10282-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71430-10282-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71430-10291-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71430-10291-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71430-10291-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71430-10440-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71430-10440-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71430-10440-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71430-10460-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71430-10460-03iKP6#..DLX,STD198208-198409

SEMI FB,GRAY,GRAY,TRIM1#

main71430-10460-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71430-10480-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71430-10480-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71430-10480-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71430-10500-02iKP61..S198208-198409

SEMI FB,RED,RED/MAROON,TRIM1#

main71430-10500-09iKP61..S198208-198409

SEMI FB,YELLOW,YELLOW,TRIM1#

main71430-10510-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71430-10510-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71430-10510-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

main71430-10610-02iKP60..3D..STD..EUG198304-198409

FINLAND SPEC,SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71430-10610-03iKP60..3D..STD..EUG198304-198409

FINLAND SPEC,SEMI FB,GRAY,GRAY,TRIM1#

main71430-10610-06iKP60..3D..STD..EUG198304-198409

FINLAND SPEC,SEMI FB,BROWN,BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-10210-01iKP6#197802-198005

FB,BLACK,BLACK,TRIM2#

main71440-10210-04iKP6#197802-198005

FB,BLUE,BLUE,TRIM8#

main71440-10210-06iKP6#197802-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71440-10260-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLACK,BLACK,TRIM2#

main71440-10260-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,BLUE,BLUE,TRIM8#

main71440-10260-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-197910

PF,LIGHT BROWN,BROWN,TRIM4#

main71440-10261-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLACK,BLACK,TRIM2#

main71440-10261-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,BLUE,BLUE,TRIM8#

main71440-10261-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197910-198005

PF,LIGHT BROWN,BROWN,TRIM4#

main71440-10262-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,BLACK,BLACK,TRIM2#

main71440-10262-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

PF,BLUE,BLUE,TRIM8#

main71440-10262-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

PF,LIGHT BROWN,BROWN,TRIM4#

main71440-10271-01iKP6#..SED..EUR198005-198108

FULL FB,BLACK,BLACK,TRIM2#

main71440-10271-04iKP6#..SED198108-198208

FULL FB,BLUE,BLUE,TRIM8#

main71440-10271-06iKP6#..SED..EUR198005-198108

FULL FB,LIGHT BROWN,BROWN,TRIM4#

main71440-10280-01iKP6#..GEN197802-197910

VL,BLACK,BLACK,TRIM2#

main71440-10280-04iKP6#..GEN197802-197910

VL,BLUE,BLUE,TRIM8#

main71440-10280-06iKP6#..GEN197802-197910

VL,LIGHT BROWN,BROWN,TRIM4#

main71440-10281-01iKP6#..GEN197910-198005

VL,BLACK,BLACK,TRIM2#

main71440-10281-04iKP6#..GEN197910-198005

VL,BLUE,BLUE,TRIM8#

main71440-10281-06iKP6#..GEN197910-198005

VL,LIGHT BROWN,BROWN,TRIM4#

main71440-10282-01iKP60,62..GEN198005-198208

VL,BLACK,BLACK,TRIM2#

main71440-10282-04iKP60,62..SED..GEN198005-198208

VL,BLUE,BLUE,TRIM8#

main71440-10282-06iKP60,62..GEN198005-198208

VL,LIGHT BROWN,BROWN,TRIM4#

main71440-10291-01iKP6#198005-198208

SEMI FB,BLACK,BLACK,TRIM2#

main71440-10291-04iKP6#..SED198005-198208

SEMI FB,BLUE,BLUE,TRIM8#

main71440-10291-06iKP6#198005-198208

SEMI FB,LIGHT BROWN,BROWN,TRIM4#

main71440-10440-02iKP6#..SED..GEN;KP60..STD..EUG198208-198409

PF,DARK WINE,RED/MAROON,TRIM3#

main71440-10440-03iKP6#..GEN;KP60..STD..EUG198208-198409

PF,LIGHT GRAY,GRAY,TRIM1#

main71440-10440-05iKP6#..GEN;KP60..STD..EUG198208-198409

PF,BEIGE,BEIGE,TRIM4#

main71440-10460-02iKP6#..SED..(DLX,STD)198208-198409

SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71440-10460-03iKP6#..DLX,STD198208-198409

SEMI FB,GRAY,GRAY,TRIM1#

main71440-10460-06iKP6#..DLX,STD198208-198409

SEMI FB,BROWN,BROWN,TRIM4#

main71440-10480-02iKP6#..SED..DLX198208-198409

FULL FB,DARK WINE,RED/MAROON,TRIM3#

main71440-10480-03iKP6#..SED..DLX198208-198409

FULL FB,GRAY,GRAY,TRIM1#

main71440-10480-06iKP6#..SED..DLX198208-198409

FULL FB,BROWN,BROWN,TRIM4#

main71440-10500-02iKP61..S198208-198409

SEMI FB,RED,RED/MAROON,TRIM1#

main71440-10500-09iKP61..S198208-198409

SEMI FB,YELLOW,YELLOW,TRIM1#

main71440-10510-02iKP6#..SED..STD..GEN198208-198409

VL,DARK WINE,RED/MAROON,TRIM3#

main71440-10510-03iKP6#..STD..GEN198208-198409

VL,LIGHT GRAY,GRAY,TRIM1#

main71440-10510-05iKP6#..STD..GEN198208-198409

VL,BEIGE,BEIGE,TRIM4#

main71440-10610-02iKP60..3D..STD..EUG198304-198409

FINLAND SPEC,SEMI FB,DARK WINE,RED/MAROON,TRIM3#

main71440-10610-03iKP60..3D..STD..EUG198304-198409

FINLAND SPEC,SEMI FB,GRAY,GRAY,TRIM1#

main71440-10610-06iKP60..3D..STD..EUG198304-198409

FINLAND SPEC,SEMI FB,BROWN,BROWN,TRIM4#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main71812-30010iKP6#197802-198409

sub90468-18008

71950HEADREST ASSY, FRONT SEAT

main71910-10070-01×2iKP6#197802-198005

BLACK,BLACK,TRIM2#

main71910-10070-04×2iKP6#197802-197902

BLUE,BLUE,TRIM8#

main71910-10070-06×2iKP6#197802-198005

LIGHT BROWN,BROWN,TRIM4#

main71910-10070-14×2iKP6#197902-198005

BLUE,BLUE,TRIM8#

main71910-10071-01×2iKP60,62..GEN198005-198208

BLACK,BLACK,TRIM2#

main71910-10071-04×2iKP60,62..SED..GEN198005-198208

BLUE,BLUE,TRIM8#

main71910-10071-06×2iKP60,62..GEN198005-198208

LIGHT BROWN,BROWN,TRIM4#

main71910-10090-02×2iKP60..RHD..EUG;KP6#..5D..4F..DLX..EUG198208-198409

W/ADJUSTABLE,DARK WINE,RED/MAROON,TRIM3#

main71910-10090-03×2iKP60..RHD..EUG;KP6#..5D..4F..DLX..EUG198208-198409

W/ADJUSTABLE,GRAY,GRAY,TRIM1#

main71910-10090-06×2iKP60..RHD..EUG;KP6#..5D..4F..DLX..EUG198208-198409

W/ADJUSTABLE,BROWN,BROWN,TRIM4#

main71910-10180-02×2iKP6#..SED..GEN198208-198409

DARK WINE,RED/MAROON,TRIM3#

main71910-10180-03×2iKP6#..GEN198208-198409

GRAY,GRAY,TRIM1#

main71910-10180-06×2iKP6#..GEN198208-198409

BROWN,BROWN,TRIM4#

main71910-16011-01×2iKP60,62..SED..GEN198108-198208

LARGE TYPE,BLACK,BLACK,TRIM2#

main71910-16011-04×2iKP60,62..SED..GEN198108-198208

LARGE TYPE,BLUE,BLUE,TRIM8#

main71910-16011-06×2iKP60,62..SED..GEN198108-198208

LARGE TYPE,LIGHT BROWN,BROWN,TRIM4#

main71910-16060-02×2iKP6#..SED..(DLX,STD)..EUR198208-198409

DARK WINE,RED/MAROON,TRIM3#

sub71910-12400

main71910-16060-13×2iKP6#..EUR198208-198409

GRAY,GRAY,TRIM1#

sub71910-12400

main71910-16060-16×2iKP6#..(DLX,STD)..EUR198208-198409

BROWN,BROWN,TRIM4#

sub71910-12400

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-01×2iKP6#197802-198208

W(LOCK),W/LOCK,BLACK,BLACK,TRIM2#

main71930-10060-02×2iKP6#..SED..(DLX,STD)198208-198409

W(LOCK),W/LOCK,DARK WINE,DARK WINE,TRIM3#

main71930-10060-04×2iKP6#..SED198110-198208

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

main71930-10060-06×2iKP6#197802-198005

W(LOCK),W/LOCK,LIGHT BROWN,BROWN,TRIM4#

main71930-10060-13×2iKP6#198208-198409

W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1#

main71930-10060-14×2iKP6#..SED198005-198110

W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#

main71930-10060-25×2iKP6#..DLX,STD198110-198409

W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#

main71930-10060-26×2iKP6#198005-198110

W(LOCK),W/LOCK,LIGHT BROWN,BROWN,TRIM4#

main71931-10010-01×2iKP6#197802-198208

W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2#

main71931-10010-02×2iKP6#..SED..(DLX,STD)198208-198409

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE,TRIM3#

main71931-10010-04×2iKP6#..SED198110-198208

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

main71931-10010-06×2iKP6#197802-198005

W/O(LOCK),W/O LOCK,LIGHT BROWN,BROWN,TRIM4#

main71931-10010-13×2iKP6#198208-198409

W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1#

main71931-10010-14×2iKP6#..SED198005-198110

W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#

main71931-10010-25×2iKP6#..DLX,STD198110-198409

W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#

main71931-10010-26×2iKP6#198005-198110

W/O(LOCK),W/O LOCK,LIGHT BROWN,BROWN,TRIM4#

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72010-10010-01iKP6#..LHD..3D197802-198005

W/WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72010-10010-04iKP6#..LHD..3D197802-198005

W/WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72010-10010-06iKP6#..LHD..3D197802-198005

W/WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72010-10011-01iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

W/O WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72010-10011-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP61..SED..EUG;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198208

W/O WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72010-10011-06iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198208

W/O WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72010-10021-01iKP6#..LHD..3D198101-198208

W/WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72010-10021-04iKP6#..LHD..3D198101-198208

W/WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72010-10021-06iKP6#..LHD..3D198101-198208

W/WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72010-10030-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198005

W/O WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72010-10030-04iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198005

W/O WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72010-10030-06iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197802-198005

W/O WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72010-10050-01iKP62..SDN198005-198101

W/WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72010-10050-04iKP62..SDN198005-198101

W/WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72010-10050-06iKP62..SDN198005-198101

W/WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72010-10090-02iKP6#..5D..(DLX,STD)198208-198409

W/O WALK-IN TYPE,DARK WINE,RED/MAROON,TRIM3#

main72010-10090-03iKP6#..RHD..3D;KP60..LHD..3D..STD;KP6#..LHD..3D..DLX..GEN198208-198409

W/O WALK-IN TYPE,GRAY,GRAY,TRIM1#

main72010-10090-06iKP6#..RHD..3D;KP60..LHD..3D..STD;KP6#..LHD..3D..DLX..GEN198208-198409

W/O WALK-IN TYPE,BROWN,BROWN,TRIM4#

main72010-10100-02iKP6#..LHD..3D..(DLX,STD)198208-198409

W/WALK-IN TYPE,DARK WINE,RED/MAROON,TRIM3#

main72010-10100-03iKP6#..LHD..3D198208-198409

W/WALK-IN TYPE,GRAY,GRAY,TRIM1#

main72010-10100-06iKP6#..LHD..3D..(DLX,STD)198208-198409

W/WALK-IN TYPE,BROWN,BROWN,TRIM4#

72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)

main90506-18015×2iKP6#197802-198409

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72020-10020-01iKP6#..RHD..3D197802-198005

W/WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72020-10020-04iKP6#..RHD..3D197802-198005

W/WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72020-10020-06iKP6#..RHD..3D197802-198005

W/WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72020-10031-01iKP60;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN198005-198101

W/O WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72020-10031-04iKP60..SED;KP62..LHD..5F;KP62..SED..RHD;KP62..SED..4F..EUG;KP62..SED..LHD..4F..GEN198005-198101

W/O WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72020-10031-06iKP6#198101-198208

W/O WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72020-10040-01iKP6#197802-198005

W/O WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72020-10040-04iKP6#197802-198005

W/O WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72020-10040-06iKP6#197802-198005

W/O WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72020-10041-01iKP60,62..RHD..3D198005-198208

W/WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72020-10041-04iKP60,62..RHD..3D198005-198208

W/WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72020-10041-06iKP60,62..RHD..3D198005-198208

W/WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72020-10050-01iKP62..SDN198005-198101

W/O WALK-IN TYPE,BLACK,BLACK,TRIM2#

main72020-10050-04iKP62..SDN198005-198101

W/O WALK-IN TYPE,BLUE,BLUE,TRIM8#

main72020-10050-06iKP62..SDN198005-198101

W/O WALK-IN TYPE,LIGHT BROWN,BROWN,TRIM4#

main72020-10070-02iKP6#..5D..(DLX,STD)198208-198409

W/O WALK-IN TYPE,DARK WINE,RED/MAROON,TRIM3#

main72020-10070-03iKP6#..3D..GEN;KP6#..LHD..3D..EUR198208-198409

W/O WALK-IN TYPE,GRAY,GRAY,TRIM1#

main72020-10070-06iKP6#..3D..GEN;KP6#..LHD..3D..(DLX,STD)..EUR198208-198409

W/O WALK-IN TYPE,BROWN,BROWN,TRIM4#

main72020-10110-02iKP6#..RHD..3D198208-198409

W/WALK-IN TYPE,DARK WINE,RED/MAROON,TRIM3#

main72020-10110-03iKP6#..RHD..3D198208-198409

W/WALK-IN TYPE,GRAY,GRAY,TRIM1#

main72020-10110-06iKP6#..RHD..3D198208-198409

W/WALK-IN TYPE,BROWN,BROWN,TRIM4#

72210CABLE ASSY, SEAT TRACK CONTROL

main72210-10010iKP6#..LHD..3D197802-198208

main72210-10020iKP6#..RHD..3D197802-198208

main72210-10030iKP6#..LHD..3D198208-198409

main72210-10040iKP6#..RHD..3D198208-198409

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-12060-01×2iKP6#197802-198208

BLACK,BLACK,TRIM2#

main72525-12060-04×2iKP6#197802-198005

BLUE,BLUE,TRIM8#

main72525-12060-06×2iKP6#197802-198005

LIGHT BROWN,BROWN,TRIM4#

main72525-12060-14×2iKP6#..SED198005-198208

BLUE,BLUE,TRIM8#

main72525-12060-16×2iKP6#198005-198208

LIGHT BROWN,BROWN,TRIM4#

72553COVER, RECLINING PEDAL

main72553-12020iKP6#..3D197802-197812

main72553-12030iKP6#..3D197812-198409

9011910048

main90119-10048

9011910116

main90119-10116

9016840011

main90168-40011

9038612004

main90386-12004

9056414155

main90564-14155

9161560820

main91615-60820

9616001000

main96160-01000

24 parts on this diagram · 3 diagrams in section
