MAT & CARPET

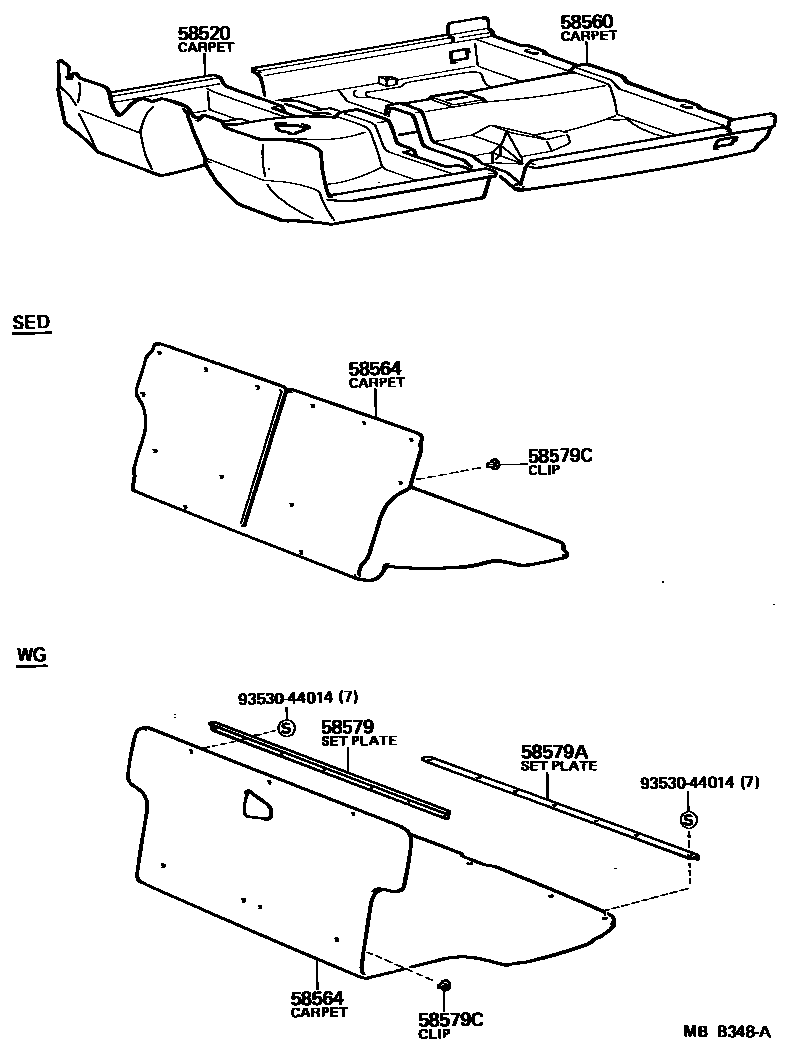

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-10220-01i197802-198005
W/RR HEATER,BLACK,BLACK,TRIM2#
main58510-10220-04i197802-198005
W/RR HEATER,BLUE,BLUE,TRIM8#
main58510-10220-06i197802-198005
W/RR HEATER,LIGHT BROWN,BROWN,TRIM4#
main58510-10221-01i198005-198108
W/RR HEATER,BLACK,BLACK,TRIM2#
main58510-10221-04i198005-198108
W/RR HEATER,BLUE,BLUE,TRIM8#
main58510-10221-06i198005-198108
W/RR HEATER,LIGHT BROWN,BROWN,TRIM4#
main58510-10260-01i197802-198005
BLACK,BLACK,TRIM2#
main58510-10260-04i197802-198005
BLUE,BLUE,TRIM8#
main58510-10260-06i197802-198005
LIGHT BROWN,BROWN,TRIM4#
main58510-10270-01i197802-198108
BLACK,BLACK,TRIM2#
main58510-10270-04i197802-198108
BLUE,BLUE,TRIM8#
main58510-10270-06i197802-198005
LIGHT BROWN,BROWN,TRIM4#
main58510-10270-16i198005-198108
LIGHT BROWN,BROWN,TRIM4#
main58510-10271-01i198108-198208
BLACK,BLACK,TRIM2#
main58510-10271-04i198108-198208
BLUE,BLUE,TRIM8#
main58510-10271-06i198108-198208
LIGHT BROWN,BROWN,TRIM4#
main58510-10310-01i197802-198005
W/RR HEATER,BLACK,BLACK,TRIM2#
main58510-10310-04i197802-198005
W/RR HEATER,BLUE,BLUE,TRIM8#
main58510-10310-06i197802-198005
W/RR HEATER,LIGHT BROWN,BROWN,TRIM4#
main58510-10370-01i198005-198108
W/*CB,BLACK,BLACK,TRIM2#
main58510-10370-04i198005-198108
W/*CB,BLUE,BLUE,TRIM8#
main58510-10370-06i198005-198108
W/*CB,LIGHT BROWN,BROWN,TRIM4#
main58510-10371-01i198108-198208
W/*CB,BLACK,BLACK,TRIM2#
main58510-10371-04i198108-198208
W/*CB,BLUE,BLUE,TRIM8#
main58510-10371-06i198108-198208
W/*CB,LIGHT BROWN,BROWN,TRIM4#
main58510-10380-01i198005-198108
W/*CB,BLACK,BLACK,TRIM2#
main58510-10380-04i198005-198108
W/*CB,BLUE,BLUE,TRIM8#
main58510-10380-06i198005-198108
W/*CB,LIGHT BROWN,BROWN,TRIM4#
main58510-10381-01i198108-198208
W/*CB,BLACK,BLACK,TRIM2#
main58510-10381-04i198108-198208
W/*CB,BLUE,BLUE,TRIM8#
main58510-10381-06i198108-198208
W/*CB,LIGHT BROWN,BROWN,TRIM4#
main58510-10390-01i198005-198108
W/*CB,RR HEATER,BLACK,BLACK,TRIM2#
main58510-10390-04i198005-198108
W/*CB,RR HEATER,BLUE,BLUE,TRIM8#
main58510-10390-06i198005-198108
W/*CB,RR HEATER,LIGHT BROWN,BROWN,TRIM4#
main58510-10391-01i198108-198208
W/*CB,RR HEATER,BLACK,BLACK,TRIM2#
main58510-10391-04i198108-198208
W/*CB,RR HEATER,BLUE,BLUE,TRIM8#
main58510-10391-06i198108-198208
W/*CB,RR HEATER,LIGHT BROWN,BROWN,TRIM4#
main58510-10400-01i198005-198108
BLACK,BLACK,TRIM2#
main58510-10400-04i198005-198108
BLUE,BLUE,TRIM8#
main58510-10400-06i198005-198108
LIGHT BROWN,BROWN,TRIM4#
main58510-10401-01i198108-198208
BLACK,BLACK,TRIM2#
main58510-10401-04i198108-198208
BLUE,BLUE,TRIM8#
main58510-10401-06i198108-198208
LIGHT BROWN,BROWN,TRIM4#
main58510-10411-01i198108-198208
BLACK,BLACK,TRIM2#
main58510-10411-04i198108-198208
BLUE,BLUE,TRIM8#
main58510-10411-06i198108-198208
LIGHT BROWN,BROWN,TRIM4#
main58510-10440-01i198108-198208
W/RR HEATER,BLACK,BLACK,TRIM2#
main58510-10440-04i198108-198208
W/RR HEATER,BLUE,BLUE,TRIM8#
main58510-10440-06i198108-198208
W/RR HEATER,LIGHT BROWN,BROWN,TRIM4#
main58510-10510-02i198208-198308
DARK WINE,RED/MAROON,TRIM3#
main58510-10510-03i198208-198308
GRAY,GRAY,TRIM1#
main58510-10510-16i198208-198308
BROWN,BROWN,TRIM4#
main58510-10511-02i198308-198409
DARK WINE,RED/MAROON,TRIM3#
main58510-10511-03i198308-198409
GRAY,GRAY,TRIM1#
main58510-10511-06i198308-198409
BROWN,BROWN,TRIM4#
main58510-10540-02i198208-198308
W/*CB,DARK WINE,RED/MAROON,TRIM3#
main58510-10540-03i198208-198308
W/*CB,GRAY,GRAY,TRIM1#
main58510-10540-16i198208-198308
W/*CB,BROWN,BROWN,TRIM4#
main58510-10541-02i198308-198409
W/*CB,DARK WINE,RED/MAROON,TRIM3#
main58510-10541-03i198308-198409
W/*CB,GRAY,GRAY,TRIM1#
main58510-10541-06i198308-198409
W/*CB,BROWN,BROWN,TRIM4#
main58510-10560-02i198208-198308
DARK WINE,RED/MAROON,TRIM3#
main58510-10560-03i198208-198308
GRAY,GRAY,TRIM1#
main58510-10560-16i198208-198308
BROWN,BROWN,TRIM4#
main58510-10561-02i198308-198409
DARK WINE,RED/MAROON,TRIM3#
main58510-10561-03i198308-198409
GRAY,GRAY,TRIM1#
main58510-10561-06i198308-198409
BROWN,BROWN,TRIM4#
main58510-10570-02i198208-198308
W/RR HEATER,DARK WINE,RED/MAROON,TRIM3#
main58510-10570-03i198208-198308
W/RR HEATER,GRAY,GRAY,TRIM1#
main58510-10570-16i198208-198308
W/RR HEATER,BROWN,BROWN,TRIM4#
main58510-10571-02i198308-198409
W/RR HEATER,DARK WINE,RED/MAROON,TRIM3#
main58510-10571-03i198308-198409
W/RR HEATER,GRAY,GRAY,TRIM1#
main58510-10571-06i198308-198409
W/RR HEATER,BROWN,BROWN,TRIM4#
main58510-10580-02i198208-198308
W/*CB,DARK WINE,RED/MAROON,TRIM3#
main58510-10580-03i198208-198308
W/*CB,GRAY,GRAY,TRIM1#
main58510-10580-16i198208-198308
W/*CB,BROWN,BROWN,TRIM4#
main58510-10581-02i198308-198409
W/*CB,DARK WINE,RED/MAROON,TRIM3#
main58510-10581-03i198308-198409
W/*CB,GRAY,GRAY,TRIM1#
main58510-10581-06i198308-198409
W/*CB,BROWN,BROWN,TRIM4#
main58510-10590-02i198208-198308
W/*CB,RR HEATER,DARK WINE,RED/MAROON,TRIM3#
main58510-10590-03i198208-198308
W/*CB,RR HEATER,GRAY,GRAY,TRIM1#
main58510-10590-16i198208-198308
W/*CB,RR HEATER,BROWN,BROWN,TRIM4#
main58510-10591-02i198308-198409
W/*CB,RR HEATER,DARK WINE,RED/MAROON,TRIM3#
main58510-10591-03i198308-198409
W/*CB,RR HEATER,GRAY,GRAY,TRIM1#
main58510-10591-06i198308-198409
W/*CB,RR HEATER,BROWN,BROWN,TRIM4#
58560CARPET ASSY, FLOOR, REAR
main58540-10041-01i198005-198208
W/*NLR,BLACK,BLACK,TRIM2#
sub58540-10091
main58540-10041-04i198005-198208
W/*NLR,BLUE,BLUE,TRIM8#
sub58540-10091
main58540-10041-06i198005-198208
W/*NLR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10091
main58540-10050-01i197802-198005
W/*ELR,BLACK,BLACK,TRIM2#
sub58540-10090
main58540-10050-04i197802-198005
W/*ELR,BLUE,BLUE,TRIM8#
sub58540-10090
main58540-10050-06i197802-198005
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10090
main58540-10051-01i198005-198204
W/*ELR,BLACK,BLACK,TRIM2#
sub58540-10091
main58540-10051-04i198005-198204
W/*ELR,BLUE,BLUE,TRIM8#
sub58540-10091
main58540-10051-06i198005-198204
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10091
main58540-10052-02i198208-198304
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
sub58540-10091
main58540-10052-03i198208-198304
W/SEAT BELT,GRAY,GRAY,TRIM1#
sub58540-10091
main58540-10052-16i198208-198304
W/SEAT BELT,BROWN,BROWN,TRIM4#
sub58540-10091
main58540-10054-02i198304-198308
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
sub58540-10092
main58540-10054-03i198304-198308
W/SEAT BELT,GRAY,GRAY,TRIM1#
sub58540-10092
main58540-10054-16i198304-198308
W/SEAT BELT,BROWN,BROWN,TRIM4#
sub58540-10092
main58540-10056-02i198308-198409
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10056-03i198308-198409
W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10056-06i198308-198409
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10081-01i198005-198208
W/*NLR,BLACK,BLACK,TRIM2#
sub58540-10131
main58540-10081-04i198005-198208
W/*NLR,BLUE,BLUE,TRIM8#
sub58540-10131
main58540-10081-06i198005-198208
W/*NLR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10131
main58540-10090-01i197802-198005
BLACK,BLACK,TRIM2#
main58540-10090-04i197802-198005
BLUE,BLUE,TRIM8#
main58540-10090-06i197802-198005
LIGHT BROWN,BROWN,TRIM4#
main58540-10091-01i198005-198208
BLACK,BLACK,TRIM2#
main58540-10091-02i198208-198304
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10091-03i198208-198304
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10091-04i198005-198208
BLUE,BLUE,TRIM8#
main58540-10091-06i198005-198208
LIGHT BROWN,BROWN,TRIM4#
main58540-10091-16i198208-198304
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10092-02i198304-198308
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10092-03i198304-198308
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10092-16i198304-198308
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10093-02i198308-198409
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10093-03i198308-198409
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10093-06i198308-198409
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10130-01i197802-198005
BLACK,BLACK,TRIM2#
main58540-10130-04i197802-198005
BLUE,BLUE,TRIM8#
main58540-10130-06i197802-198005
LIGHT BROWN,BROWN,TRIM4#
main58540-10131-01i198005-198208
BLACK,BLACK,TRIM2#
main58540-10131-02i198208-198304
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10131-03i198208-198304
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10131-04i198005-198208
BLUE,BLUE,TRIM8#
main58540-10131-06i198005-198208
LIGHT BROWN,BROWN,TRIM4#
main58540-10131-16i198208-198304
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10132-02i198304-198308
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10132-03i198304-198308
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10132-16i198304-198308
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10133-02i198308-198409
W/O SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10133-03i198308-198409
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10133-06i198308-198409
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10150-01i197802-198005
W/*ELR,BLACK,BLACK,TRIM2#
sub58540-10240
main58540-10150-04i197802-198005
W/*ELR,BLUE,BLUE,TRIM8#
sub58540-10240
main58540-10150-06i197802-198005
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10240
main58540-10151-01i198005-198204
W/*ELR,BLACK,BLACK,TRIM2#
main58540-10151-04i198005-198204
W/*ELR,BLUE,BLUE,TRIM8#
main58540-10151-06i198005-198204
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main58540-10152-02i198208-198304
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10152-03i198208-198304
W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10152-16i198208-198304
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10153-02i198304-198308
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10153-03i198304-198308
W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10153-16i198304-198308
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10154-02i198308-198409
W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#
main58540-10154-03i198308-198409
W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-10154-06i198308-198409
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58540-10190-01i197802-198005
W/*NLR,BLACK,BLACK,TRIM2#
sub58540-10090
main58540-10190-04i197802-198005
W/*NLR,BLUE,BLUE,TRIM8#
sub58540-10090
main58540-10190-06i197802-198005
W/*NLR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10090
main58540-10200-01i197802-198005
W/*NLR,BLACK,BLACK,TRIM2#
sub58540-10130
main58540-10200-04i197802-198005
W/*NLR,BLUE,BLUE,TRIM8#
sub58540-10130
main58540-10200-06i197802-198005
W/*NLR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10130
main58540-10310-01i198204-198208
W/*ELR,BLACK,BLACK,TRIM2#
sub58540-10091
main58540-10310-04i198204-198208
W/*ELR,BLUE,BLUE,TRIM8#
sub58540-10091
main58540-10310-06i198204-198208
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub58540-10091
main58540-10320-01i198204-198208
W/*ELR,BLACK,BLACK,TRIM2#
main58540-10320-04i198204-198208
W/*ELR,BLUE,BLUE,TRIM8#
main58540-10320-06i198204-198208
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main58540-96444-01i197810-198005
BLACK,BLACK,TRIM2#
main58540-96444-04i197810-198005
BLUE,BLUE,TRIM8#
main58540-96444-06i197810-198005
LIGHT BROWN,BROWN,TRIM4#
main58540-96445-01i197810-198005
W/*ELR,BLACK,BLACK,TRIM2#
main58540-96445-04i197810-198005
W/*ELR,BLUE,BLUE,TRIM8#
main58540-96445-06i197810-198005
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main58540-96447-01i197810-198005
W/*NLR,BLACK,BLACK,TRIM2#
main58540-96447-04i197810-198005
W/*NLR,BLUE,BLUE,TRIM8#
main58540-96447-06i197810-198005
W/*NLR,LIGHT BROWN,BROWN,TRIM4#
main58540-96456-01i198005-198208
BLACK,BLACK,TRIM2#
main58540-96456-03i198208-198304
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-96456-06i198005-198208
LIGHT BROWN,BROWN,TRIM4#
main58540-96456-16i198208-198304
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-96458-01i198005-198204
W/*ELR,BLACK,BLACK,TRIM2#
main58540-96458-06i198005-198204
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main58540-96459-01i198005-198208
W/*NLR,BLACK,BLACK,TRIM2#
sub58540-96456
main58540-96459-06i198005-198208
W/*NLR,LIGHT BROWN,BROWN,TRIM4#
sub58540-96456
main58540-96467-01i198204-198208
W/*ELR,BLACK,BLACK,TRIM2#
main58540-96467-03i198208-198304
W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-96467-06i198204-198208
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main58540-96467-16i198208-198304
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58540-96473-03i198304-198308
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-96473-16i198304-198308
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-96474-03i198304-198308
W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-96474-16i198304-198308
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58540-96475-03i198308-198409
W/O SEAT BELT,GRAY,GRAY,TRIM1#
main58540-96475-06i198308-198409
W/O SEAT BELT,BROWN,BROWN,TRIM4#
main58540-96476-03i198308-198409
W/SEAT BELT,GRAY,GRAY,TRIM1#
main58540-96476-06i198308-198409
W/SEAT BELT,BROWN,BROWN,TRIM4#
58564CARPET, REAR FLOOR
main58570-10020-01i197802-198005
BN,*LRDT,BLACK,BLACK,TRIM2#
main58570-10020-04i197802-198005
BN,*LRDT,BLUE,BLUE,TRIM8#
main58570-10020-06i197802-198005
BN,*LRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10030-01i197802-197911
SP,*LRDT,BLACK,BLACK,TRIM2#
main58570-10030-04i197802-197911
SP,*LRDT,BLUE,BLUE,TRIM8#
main58570-10030-06i197802-197911
SP,*LRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10031-01i197911-198005
SP,*LRDT,BLACK,BLACK,TRIM2#
main58570-10031-04i197911-198005
SP,*LRDT,BLUE,BLUE,TRIM8#
main58570-10031-06i197911-198005
SP,*LRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10032-01i198005-198208
SP,*LRDT,BLACK,BLACK,TRIM2#
main58570-10032-04i198005-198208
SP,*LRDT,BLUE,BLUE,TRIM8#
main58570-10032-06i198005-198208
SP,*LRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10100-01i197802-198005
BN,*SRDT,BLACK,BLACK,TRIM2#
main58570-10100-04i197802-198005
BN,*SRDT,BLUE,BLUE,TRIM8#
main58570-10100-06i197802-198005
BN,*SRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10120-01i197802-197911
SP,*SRDT,BLACK,BLACK,TRIM2#
main58570-10120-04i197802-197911
SP,*SRDT,BLUE,BLUE,TRIM8#
main58570-10120-06i197802-197911
SP,*SRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10121-01i197911-198005
SP,*SRDT,BLACK,BLACK,TRIM2#
main58570-10121-04i197911-198005
SP,*SRDT,BLUE,BLUE,TRIM8#
main58570-10121-06i197911-198005
SP,*SRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10122-01i198005-198208
SP,*SRDT,BLACK,BLACK,TRIM2#
main58570-10122-04i198005-198208
SP,*SRDT,BLUE,BLUE,TRIM8#
main58570-10122-06i198005-198208
SP,*SRDT,LIGHT BROWN,BROWN,TRIM4#
main58570-10140-01i198005-198208
SP,*SRDT,W/*RW,BLACK,BLACK,TRIM2#
main58570-10140-04i198005-198208
SP,*SRDT,W/*RW,BLUE,BLUE,TRIM8#
main58570-10140-06i198005-198208
SP,*SRDT,W/*RW,LIGHT BROWN,BROWN,TRIM4#
main58570-10190-02i198208-198409
W/RR SEPARATE SEAT,DARK WINE,RED/MAROON,TRIM3#
main58570-10190-03i198208-198409
W/RR SEPARATE SEAT,GRAY,GRAY,TRIM1#
main58570-10190-03i198302-198409
BELGIUM CAMPAIN,GRAY,GRAY
main58570-10190-06i198208-198409
W/RR SEPARATE SEAT,BROWN,BROWN,TRIM4#
main58570-10210-02i198208-198409
W/RR BENCH SEAT,DARK WINE,RED/MAROON,TRIM3#
main58570-10210-03i198208-198409
W/RR BENCH SEAT,GRAY,GRAY,TRIM1#
main58570-10210-06i198208-198409
W/RR BENCH SEAT,BROWN,BROWN,TRIM4#
main58570-96442-01i197810-198208
BLACK,BLACK,TRIM2#
main58570-96442-03i198208-198409
GRAY,GRAY,TRIM1#
main58570-96442-04i197810-198005
BLUE,BLUE,TRIM8#
main58570-96442-06i197810-198005
LIGHT BROWN,BROWN,TRIM4#
main58570-96442-16i198005-198208
LIGHT BROWN,BROWN,TRIM4#
main58570-96442-26i198208-198409
BROWN,BROWN,TRIM4#
main58571-96441-01i197810-198208
BLACK,BLACK,TRIM2#
main58571-96441-04i197810-198005
BLUE,BLUE,TRIM8#
main58571-96441-06i197810-198005
LIGHT BROWN,BROWN,TRIM4#
main58571-96441-16i198005-198208
LIGHT BROWN,BROWN,TRIM4#
58579SET PLATE, REAR FLOOR CARPET, NO.1
main58573-96440i197810-198409
58579ASET PLATE, REAR FLOOR CARPET, NO.2
main58566-13030i197810-198409
58579CCLIP, REAR FLOOR CARPET SET
main90467-06023-01i198108-198208
BLACK,BLACK,TRIM2#
sub90467-06023
main90467-06023-02i198208-198409
DARK WINE,RED/MAROON,TRIM3#
sub90467-06023
main90467-06023-03i198208-198409
GRAY,GRAY,TRIM1#
sub90467-06023
main90467-06023-04i198108-198208
BLUE,BLUE,TRIM8#
sub90467-06023
main90467-06023-06i198108-198208
LIGHT BROWN,BROWN,TRIM4#
sub90467-06023
main90467-06023-16i198208-198409
BROWN,BROWN,TRIM4#
sub90467-06023
main90467-07162-01i197802-198208
BLACK,BLACK,TRIM2#
sub90467-07162
main90467-07162-04i197802-198005
BLUE,BLUE,TRIM8#
sub90467-07162
main90467-07162-16i197802-198005
LIGHT BROWN,BROWN,TRIM4#
sub90467-07162
main90467-07162-24i198005-198108
BLUE,BLUE,TRIM8#
sub90467-07162
main90467-07162-26i198005-198208
LIGHT BROWN,BROWN,TRIM4#
sub90467-07162
main90467-07162-46i198208-198409
BROWN,BROWN,TRIM4#
sub90467-07162
main90467-07162-53i198208-198409
GRAY,GRAY,TRIM1#
sub90467-07162
9353044014
main93530-44014

7 parts on this diagram · 1 diagram in section

MAT & CARPET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
