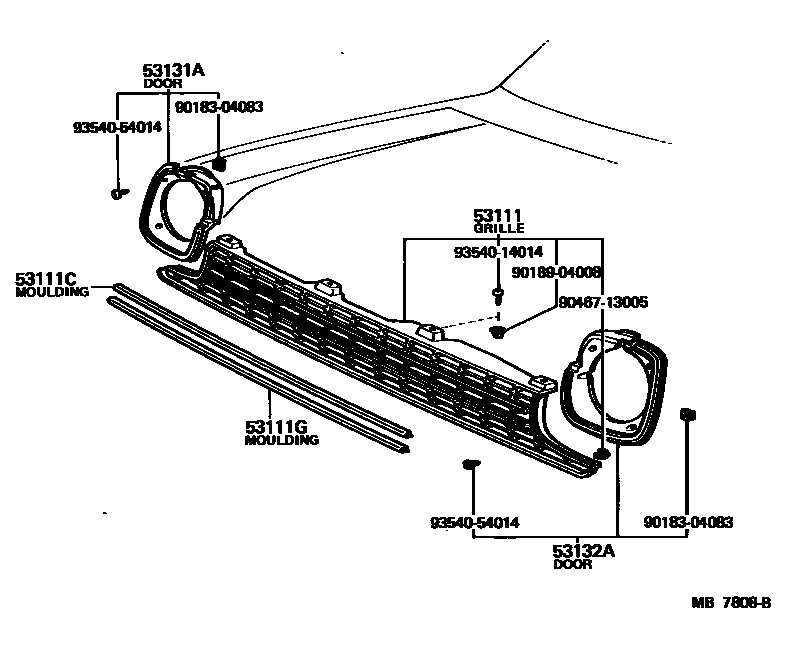

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53111-19255iKP6#197802-198005

sub53111-10130

main53111-19256iKP6#198005-198208

sub53111-10131

main53111-19257iKP6#..DLX,STD198208-198409

sub53111-10132

main53111-19476iKP61..S198208-198409

sub53111-10181

53111CMOULDING, RADIATOR GRILLE, UPPER

main75511-10060iKP6#197802-198005

53111GMOULDING, RADIATOR GRILLE, LOWER

main75512-10010iKP6#197802-198005

53131ADOOR, HEADLAMP, RH

main53131-19335iKP6#..4D197810-197904

CHROME PLATED

main53131-19345iKP6#197802-198005

PAINTED

main53131-19355iKP6#..SED197802-197904

CHROME PLATED,PAINTED

main53131-19475iKP6#198005-198208

PAINTED

main53131-19476iKP61..S198208-198304

main53131-19477iKP61..S198304-198409

main53131-19556iKP6#..DLX,STD198208-198409

53132ADOOR, HEADLAMP, LH

main53132-19335iKP6#..4D197810-197904

CHROME PLATED

main53132-19345iKP6#197802-198005

PAINTED

main53132-19355iKP6#..SED197802-197904

CHROME PLATED,PAINTED

main53132-19475iKP6#198005-198208

PAINTED

main53132-19476iKP61..S198208-198304

main53132-19477iKP61..S198304-198409

main53132-19556iKP6#..DLX,STD198208-198409

9018304083

main90183-04083

9018904008

main90189-04008

9046713005

main90467-13005

9354014014

main93540-14014

9354054014

main93540-54014

10 parts on this diagram · 3 diagrams in section
