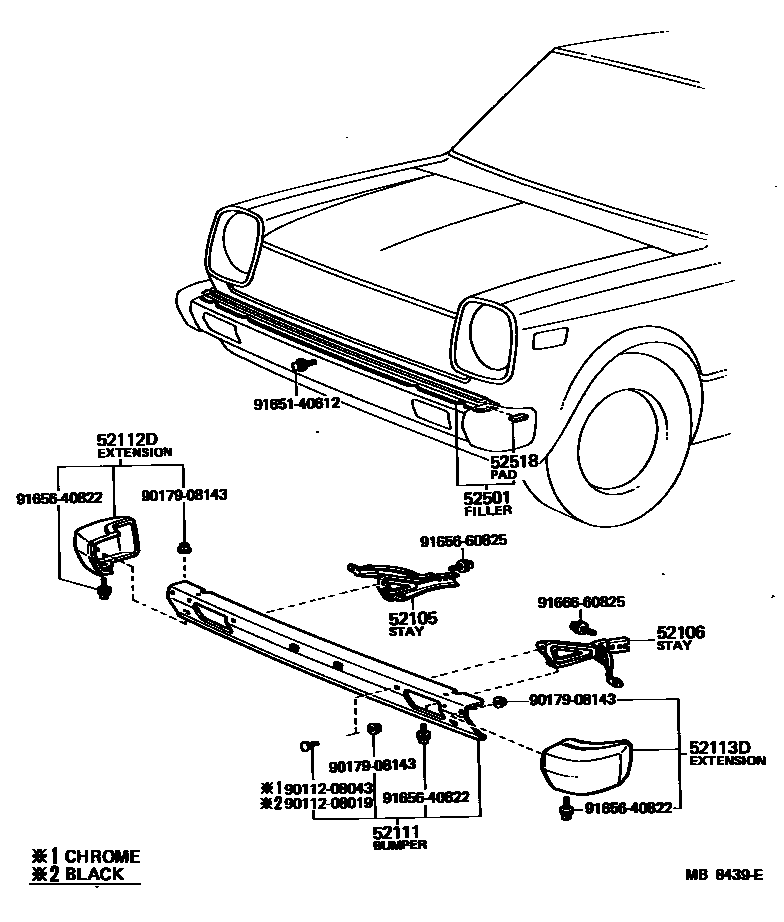

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-10030iKP60..SED¥3,760197802-198005

SMALL TYPE

main52011-10031iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN¥3,590198005-198208

SMALL TYPE

main52011-10040iKP6#¥3,870197802-198005

BIG TYPE

main52011-10041iKP6#¥3,780198005-198208

BIG TYPE

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-10030iKP60..SED¥3,760197802-198005

SMALL TYPE

main52012-10031iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN¥3,590198005-198208

SMALL TYPE

main52012-10040iKP6#¥3,870197802-198005

BIG TYPE

main52012-10041iKP6#¥3,780198005-198208

BIG TYPE

52111BUMPER ASSY, FRONT

main52018-19085iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN¥25,000198005-198208

BIG TYPE

sub52018-10060¥22,400

main52018-19095iKP6#..SED..LHD..EUG¥25,000198005-198208

BIG TYPE,W/*HC

sub52018-10070¥22,400

main52018-19095iKP6#..SED..LHD..EUG¥25,000198005-198208

W/*HC

sub52018-10070¥22,400

main52111-19355iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG¥24,800197802-198005

CHROME PLATED

sub52111-10050¥23,400

main52111-19365iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG¥25,000197802-198005

BLACK PAINTED

sub52111-10060¥22,300

main52111-19375iKP62..SED197802-198005

CHROME PLATED,W/*HC

sub52111-10070

main52111-19385iKP62..SED¥24,800197802-198005

BLACK PAINTED,W/*HC

sub52111-10080

main52111-19615iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN¥25,000198005-198208

SMALL TYPE

sub52111-10120¥22,400

52112DEXTENSION, FRONT BUMPER, RH

main52102-19145iKP60..SED¥4,230197802-198005

SMALL TYPE

main52102-19146iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN¥4,910198005-198208

SMALL TYPE

main52102-19155iKP6#¥5,700197802-198005

BIG TYPE

main52102-19156iKP6#¥6,400198005-198208

BIG TYPE

52113DEXTENSION, FRONT BUMPER, LH

main52103-19125iKP60..4D¥4,230197802-198005

SMALL TYPE

main52103-19126iKP60;KP61..EUG;KP62..RHD;KP62..LHD..5F;KP62..4F..EUG;KP62..LHD..4F..GEN¥4,910198005-198208

SMALL TYPE

main52103-19135iKP6#¥5,700197802-198005

BIG TYPE

main52103-19136iKP6#¥6,400198005-198208

BIG TYPE

52501FILLER SUB-ASSY, FRONT BUMPER

main52501-10010iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG¥3,450197802-198005

BIG TYPE

sub52501-10020

main52501-10020iKP60..SED..LHD..EUG197802-198005

BIG TYPE,W/*HC

main52501-16020iKP6#¥4,270198005-198208

BIG TYPE

52518PAD, FRONT BUMPER FILLER

main52518-10010iKP6#197802-198005

9011208019

main90112-08019¥330

9011208043

main90112-08043¥370

9017908143

main90179-08143¥110

9165140612

main91651-40612¥70

9165640822

main91656-40822¥180

9165660825

main91656-60825¥220

9166660825

main91666-60825¥210

14 parts on this diagram · 3 diagrams in section
