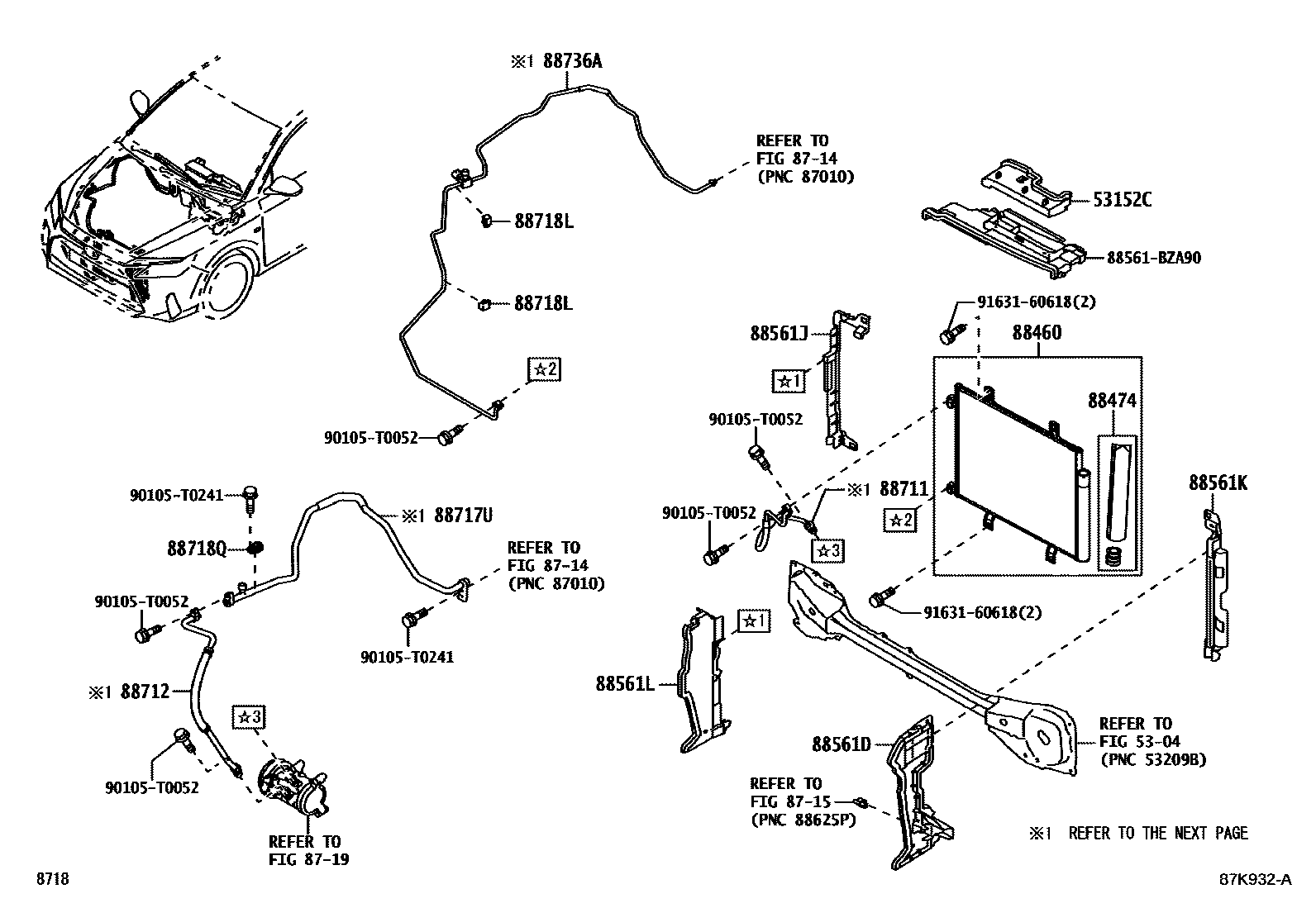

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1TUBE ASSY 0003 1CONDENSER 0004 1TUBE ASSY 0006 1CONDENSER 0007 1TUBE ASSY

5304

53152CGUIDE, RADIATOR GRILLE AIR

main53152-BZ050iNGC10#..THP202208

main53152-BZ060iNGC102..MA202303

8714

8715

8719

88460CONDENSER ASSY, COOLER

main88460-BZ340iNGC10#202208

88474DRYER, COOLER

main88474-B2010iNGC10#202208

88561DGRILLE, AIR INLET NO.3

main88561-BZB10iNGC10#202208

88561JGRILLE, AIR INLET NO.1

main88561-BZB20iNGC10#202208

88561KGRILLE, AIR INLET NO.2

main88561-BZB30iNGC10#202208

88561LGRILLE, AIR INLET NO.4

main88561-BZB00iNGC10#202208

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ830iNGC102..MA202303

main88711-BZ880iNGC10#..GEN,PHL,TH202208

main88711-BZ890iNGC101,102..GCC202208

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-BZA00iNGC102..MA202303

main88712-BZA60iNGC10#..GEN,PHL,TH202208

main88712-BZB00iNGC101,102..GCC202208

88717UTUBE, SUCTION, NO.1

main88707-BZ040iNGC101,102..GCC202401

main88717-BZ570iNGC100202208

main88717-BZ580iNGC101,102..RHD..GEN202208

main88717-BZ590iNGC102..MA202303

main88717-BZ600iNGC101,102..LHD..(GEN,PHL)202208

main88717-BZ610iNGC101,102..GCC202208-202401

88718LCLAMP, PIPING

main88718-0D210×2iNGC10#,NYC100..THP202208

main88718-0D290×2iNGC102..MA202303

88718QCLAMP, PIPING

main88718-BZ800iNGC10#..GEN,MA,PHL,TH202208

main88718-BZ810iNGC101,102..GCC202208

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-BZJ10iNGC100202208

main88716-BZJ20iNGC101,102..RHD..GEN202208

main88716-BZJ30iNGC102..MA202303

main88716-BZJ40iNGC101,102..GCC202208-202401

main88716-BZM60iNGC101,102..GCC202401

88561BZA90COVER, COOLER UNIT

main88561-BZA90

90105T0052

main90105-T0052

90105T0241

main90105-T0241

9163160618

main91631-60618

21 parts on this diagram · 6 diagrams in section
