HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL(AUTO) 0002 1CONTROL PANEL(MANUAL) 0003 1AIR DUCT(FRONT) 0004 1AIR DUCT(REAR) 0005 1AIR DUCT(FRONT) 0006 1AIR DUCT(REAR) 0007 1SENSOR

5501

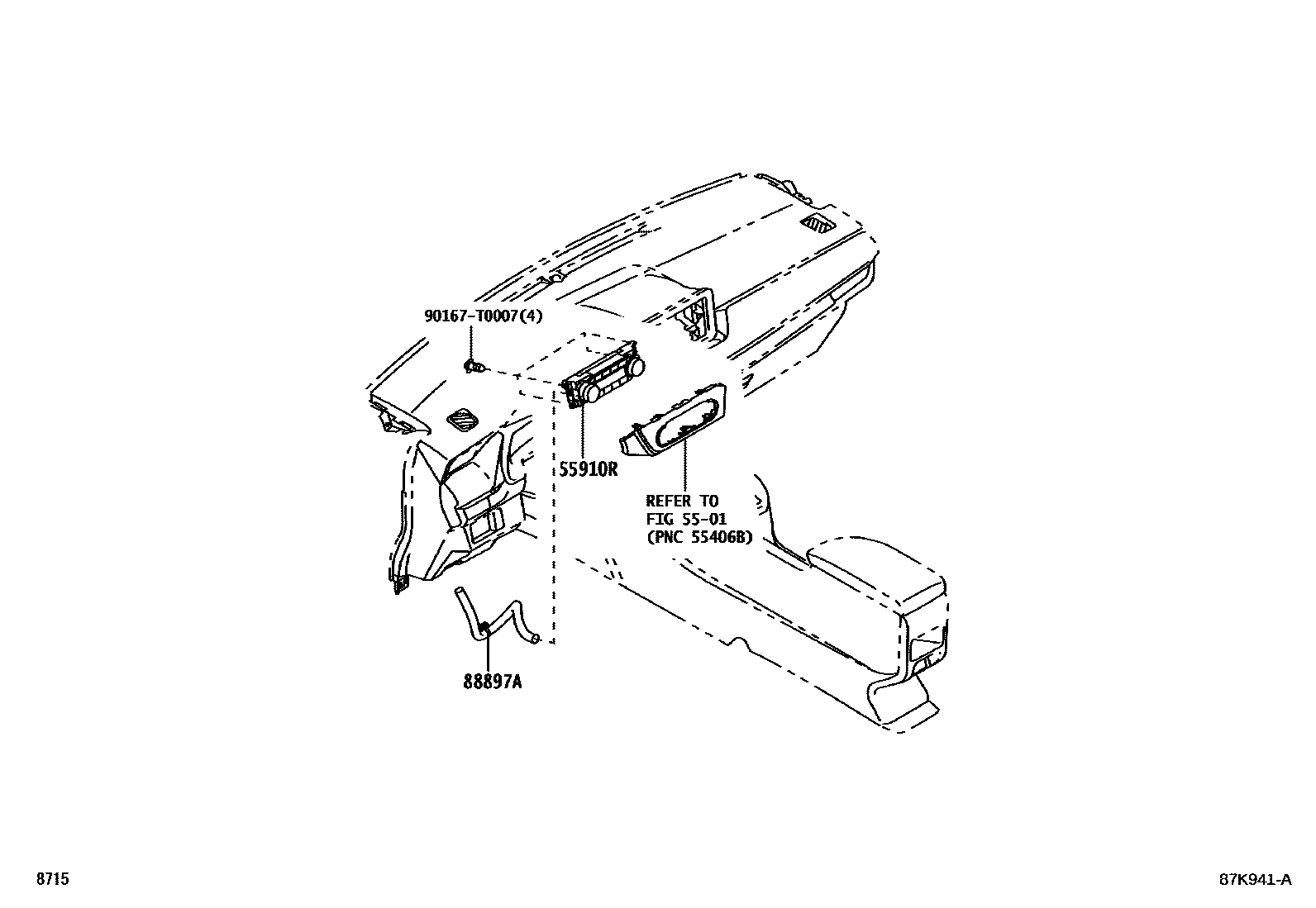

55910RCONTROL ASSY, HEATER

main55910-BZA00iNGC101,102..LHD..L202208

main55910-BZA40iNGC101..5F..M..GEN;NGC102..LHD..M..GEN;NGC101..CVT..(L,M)..GEN202208

BANGLADESH

main55910-BZA50iNGC102..5F..H;NGC100,102..RHD..M202208

main55910-BZA60iNGC101,102..H..GCC202208

MEXICO

main55910-BZA80iNGC102..RHD..CVT..H202208

main55910-BZB10iNGC101,102..M..GCC202208

main55910-BZC50iNGC102..RHD..CVT..H..GEN202208

NEPAL

main55910-BZC60iNGC101,102..PHL202208

main55910-BZB20iNGC100202501

SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)

88897APIPE, ASPIRATOR

main88505-BZ050iNGC101..PHL;NGC101,102..CVT..H202208

GRADE PACKAGE-HI(SRI LANKA)

90167T0007

main90167-T0007

4 parts on this diagram · 7 diagrams in section
