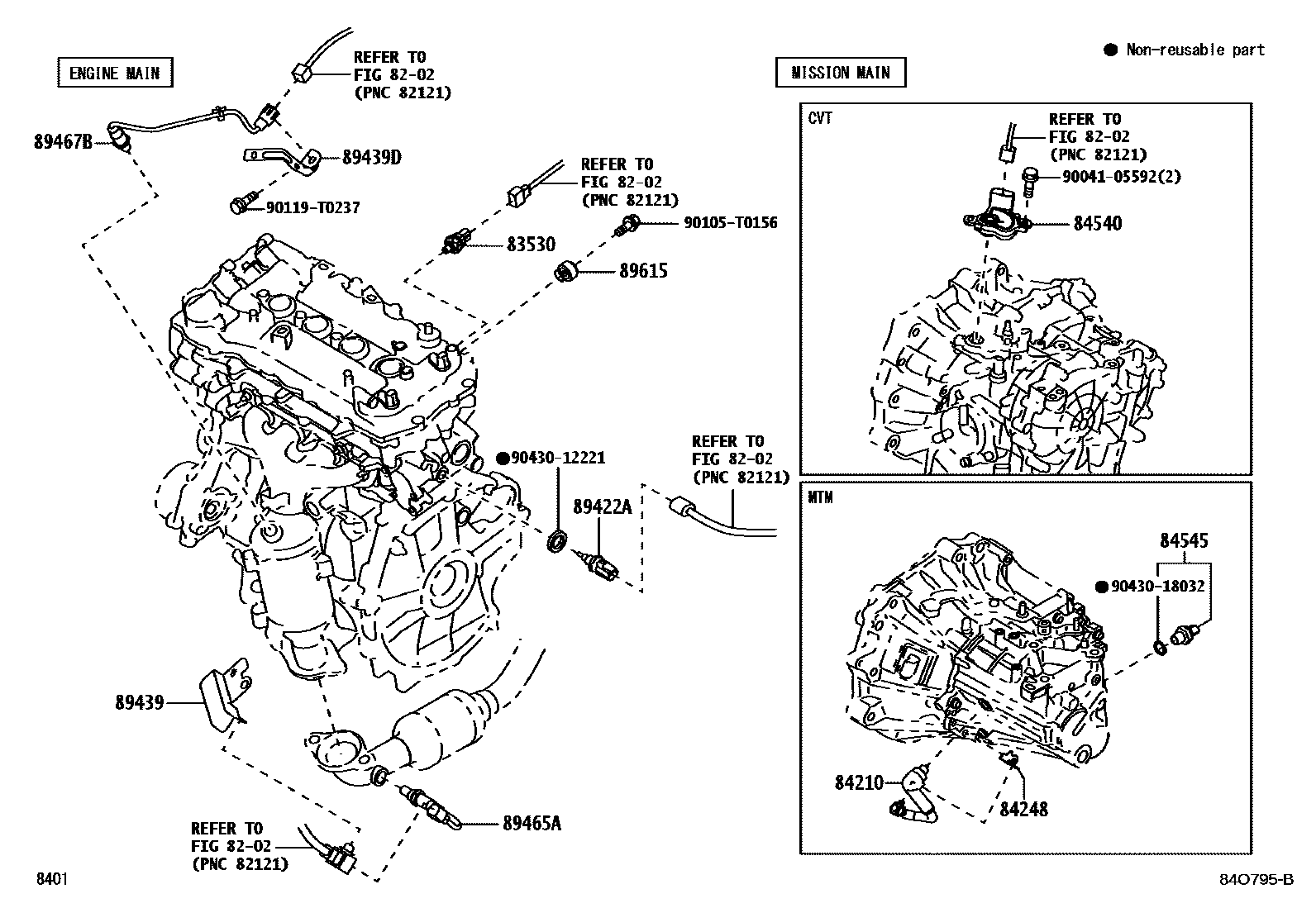

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1CONSOLE 0008 1SWITCH 0009 1SWITCH 0010 1BODY 0011 1BODY 0012 1SEAT & BODY 0013 1STEERING 0014 1STEERING 0015 1STEERING 0016 1 0017 1STEERING

8202

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNGC10#,NYC100..THP202208

main83530-52050iNGC102..MA202303

84210SWITCH ASSY, BACK-UP LAMP

main84210-BZ120iNGC101,102..5F202208

84248CLAMP, CENTER CLUSTER MODULE SWITCH HARNESS

main84248-BZ110iNGC101,102..5F202208

84540SWITCH ASSY, NEUTRAL START

main84540-B2040iNGC10#..CVT202208

84545SWITCH, NEUTRAL POSITION

main84545-BZ010iNGC101,102..5F202208

89422ASENSOR, WATER TEMPERATURE

main89422-33030iNGC10#202208

89439BRACKET, SENSOR

main89439-BZ200iNGC101,102202208

main89439-BZ260iNGC100202208

89439DBRACKET, SENSOR, NO.1

main89439-BZ210iNGC101,102202208

89465ASENSOR, OXYGEN NO.2

main89465-52A00iNGC100202208

main89465-BZ610iNGC101,102202208

89467BSENSOR, AIR FUEL RATIO

main89467-52290iNGC100202208

main89467-BZ020iNGC101,102202208

89615SENSOR, KNOCK CONTROL

main89615-20090iNGC10#202208

9004105592

main90041-05592

90105T0156

main90105-T0156

90119T0237

main90119-T0237

9043012221

main90430-12221

9043018032

main90430-18032

17 parts on this diagram · 17 diagrams in section
