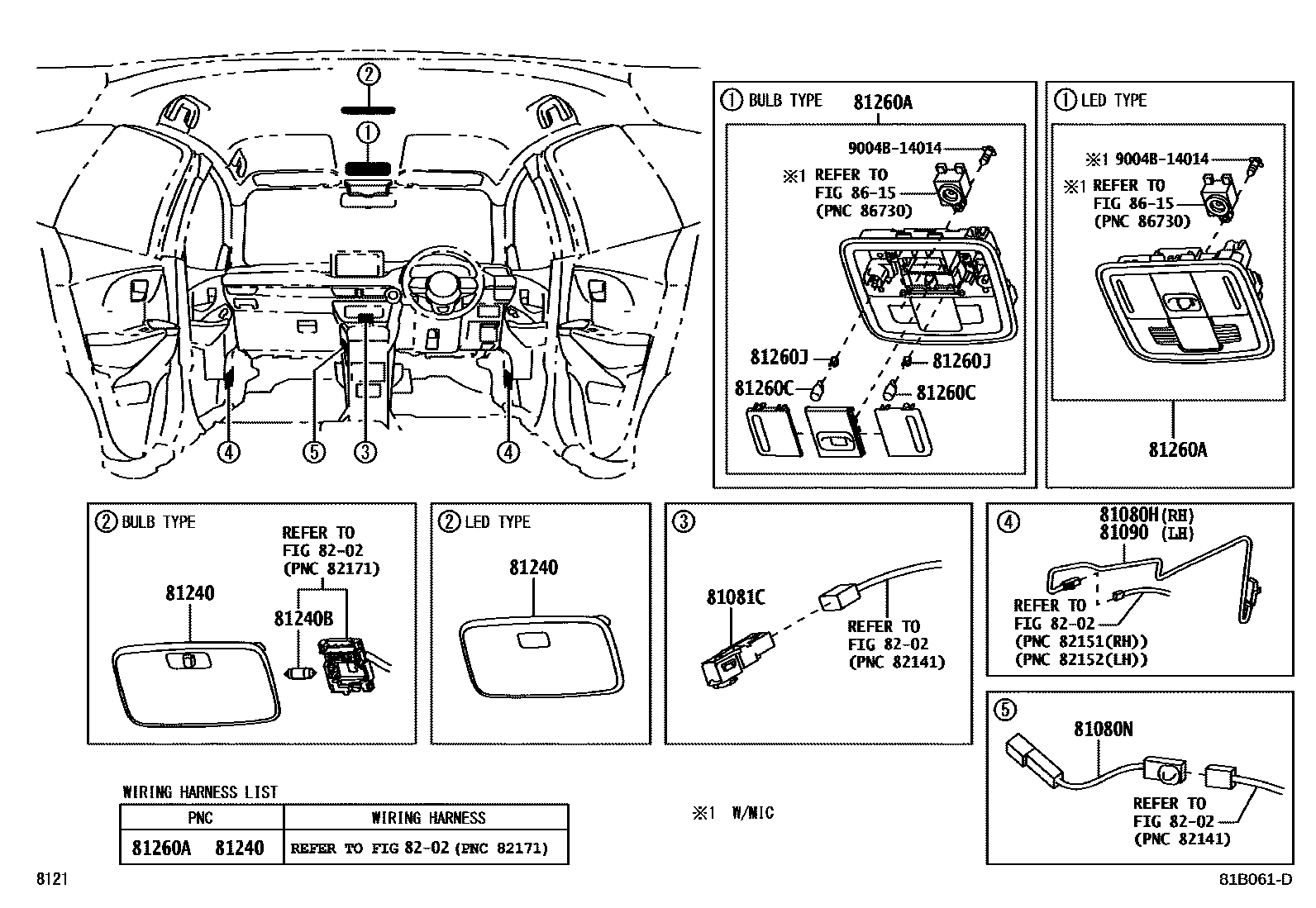

INTERIOR LAMP

0001 1ROOM LAMP 0002 1ROOM LAMP 0003 1ROOM LAMP 0004 1ROOM LAMP 0005 1LUGGAGE LAMP

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-BZ080iNGC100202208-202307

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)

main81080-BZ081iNGC100202308

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-BZ130iNGC102..H..MA202303-202304

main81080-BZ131iNGC100202308

GRADE PACKAGE-HI(TH)

81081CLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.4

main81081-BZ020iNGC102..H..MA202303-202307

main81081-BZ021iNGC100202308

GRADE PACKAGE-HI(TH)

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-BZ060iNGC100202208-202307

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)

main81090-BZ061iNGC100202308

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)

81240LAMP ASSY, ROOM, NO.1

main81240-0K090-B0iNGC101;NGC102..GCC,GEN,MA202208

GRADE PACKAGE-LO(TH),LT.GRAY,TRIM2#

main81240-0K090-E0iNGC101..RHD..M;NGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN;NGC102..RHD..CVT..GEN202208

NEUTRAL BEIGE,TRIM4#

main81240-48040-B0iNGC102..PHL202208-202401

LT.GRAY,TRIM2#

main81240-BZ160-B0iNGC102..PHL202401

LT.GRAY,TRIM2#,2 SWITCH

81240BBULB, ROOM LAMP, NO.1

main84999-B1030iNGC102..H..MA202303

main90981-14011iNGC101;NGC102..L,M;NGC102..H..(GCC,GEN)202208

12V 8W,GRADE PACKAGE-LO(TH)

81260ALAMP ASSY, MAP

main81260-BZ050-B0iNGC102..LHD..M..GEN202208

LT.GRAY,TRIM2#

main81260-BZ050-E0iNGC101..LHD..H..GEN;NGC102..RHD..CVT..H..GEN202208

NEUTRAL BEIGE,TRIM4#

main81260-BZ110-B0iNGC100202208

GRADE PACKAGE-LO(TH),LT.GRAY,TRIM2#

main81260-BZ110-E0iNGC101,102..GCC;NGC101..5F..M..GEN;NGC101,102..RHD..M..GEN202208

NEUTRAL BEIGE,TRIM4#

main81260-BZ130-B0iNGC102..PHL202208

MEXICO&AUDIOLESS PACKAGE,LT.GRAY,TRIM2#

main81260-BZ340-B0iNGC102..M..MA202303

LT.GRAY,TRIM2#

main81260-BZ350-B0iNGC102..H..MA202303

LT.GRAY,TRIM2#

main81260-BZ120-E0iNGC102..GCC202208

UNITED ARAB EMIRATES,NEUTRAL BEIGE,TRIM4#

main81260-BZ140-B0iNGC100202304

8"BACK-UP PKG,LT.GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main84999-BZ160×2iNGC102..H..MA202303

12V 0.8W

main90981-11013×2iNGC101;NGC102..GCC,GEN202208

12V 5W T10

sub99132-12050

main90981-11067×2iNGC102..M..MA202303

12V 5W

81260JSOCKET, BULB(FOR MAP LAMP)

main83101-87705×2iNGC101;NGC102..GCC,GEN202208

GRADE PACKAGE-LO(TH)

8202

8615

9004B14014

main9004B-14014

12 parts on this diagram · 5 diagrams in section
