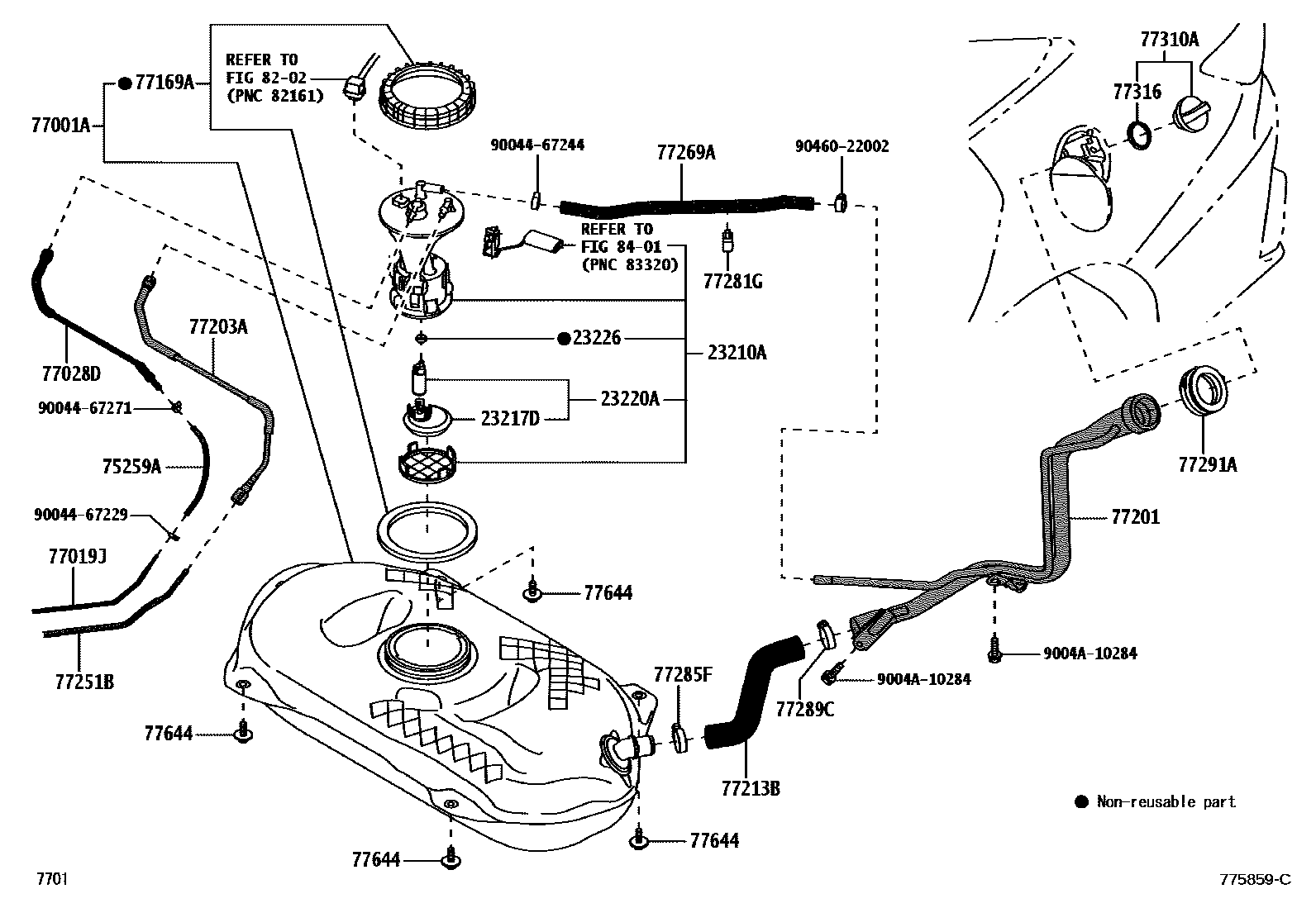

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID CABLE 0006 1FUEL LID CABLE

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-BZ430i1NRVE,2NRVE,3NRVE..NGC10#202208

23217DFILTER, FUEL PUMP

main23105-BZ020i1NRVE,2NRVE,3NRVE..NGC10#202208

23220APUMP ASSY, FUEL W/FILTER

main23220-BZ050i1NRVE,2NRVE,3NRVE..NGC10#202208

23226RING, O(FOR FUEL PUMP)

main9004B-30027i1NRVE,2NRVE,3NRVE..NGC10#202208

75259AHOSE, FUEL

main77259-BZ120iNGC10#202208

77001ATANK SUB-ASSY, FUEL

main77001-BZ640iNGC10#..THP202208

main77001-BZ870iNGC102..MA202303

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77263-BZ280iNGC10#..RHD202208

main77263-BZ350iNGC101,102..LHD202208

77028DTUBE SUB-ASSY, FUEL EMISSION, REAR

main77028-BZ050iNGC102..MA202303

main77028-BZ160iNGC10#..THP202208

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iNGC10#,NYC100..THP202208

main77169-B2030iNGC102..MA202303

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ270iNGC101..5F..M;NGC102..5F..L;NGC100,101..CVT;NGC102..THP..(H,M)202208

main77201-BZ400iNGC102..MA202303

main77201-BZ410iNGC101..LHD..CVT..M..GEN202208

COSTA RICA

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ370iNGC10#..THP202208

main77203-BZ480iNGC102..MA202303

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ320iNGC10#202208

L=299

77251BTUBE, FUEL MAIN

main77251-BZ420iNGC101,102..RHD202208

main77251-BZ430iNGC101,102..LHD202208

main77251-BZ500iNGC100202208

77269AHOSE, FUEL TANK BREATHER

main77269-BZ260iNGC10#..THP202208

main77269-BZ280iNGC102..MA202303

77281GCLAMP, FUEL HOSE

main77281-BZ120iNGC10#202208

77285FCLAMP, FUEL TUBE, NO.1

main90044-60129iNGC10#202208

77289CCLAMP, FUEL TUBE, NO.4

main90044-60129iNGC10#202208

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-BZ050iNGC10#202208

77310ACAP ASSY, FUEL TANK

main77300-52030iNGC10#202208

77316GASKET, FUEL TANK CAP

main77316-52040iNGC10#202208

77644BOLT, FUEL TANK

main90041-20292iNGC10#202208

8202

8401

9004467229

main90044-67229

9004467244

main90044-67244

9004467271

main90044-67271

9004A10284

main9004A-10284

9046022002

main90460-22002
