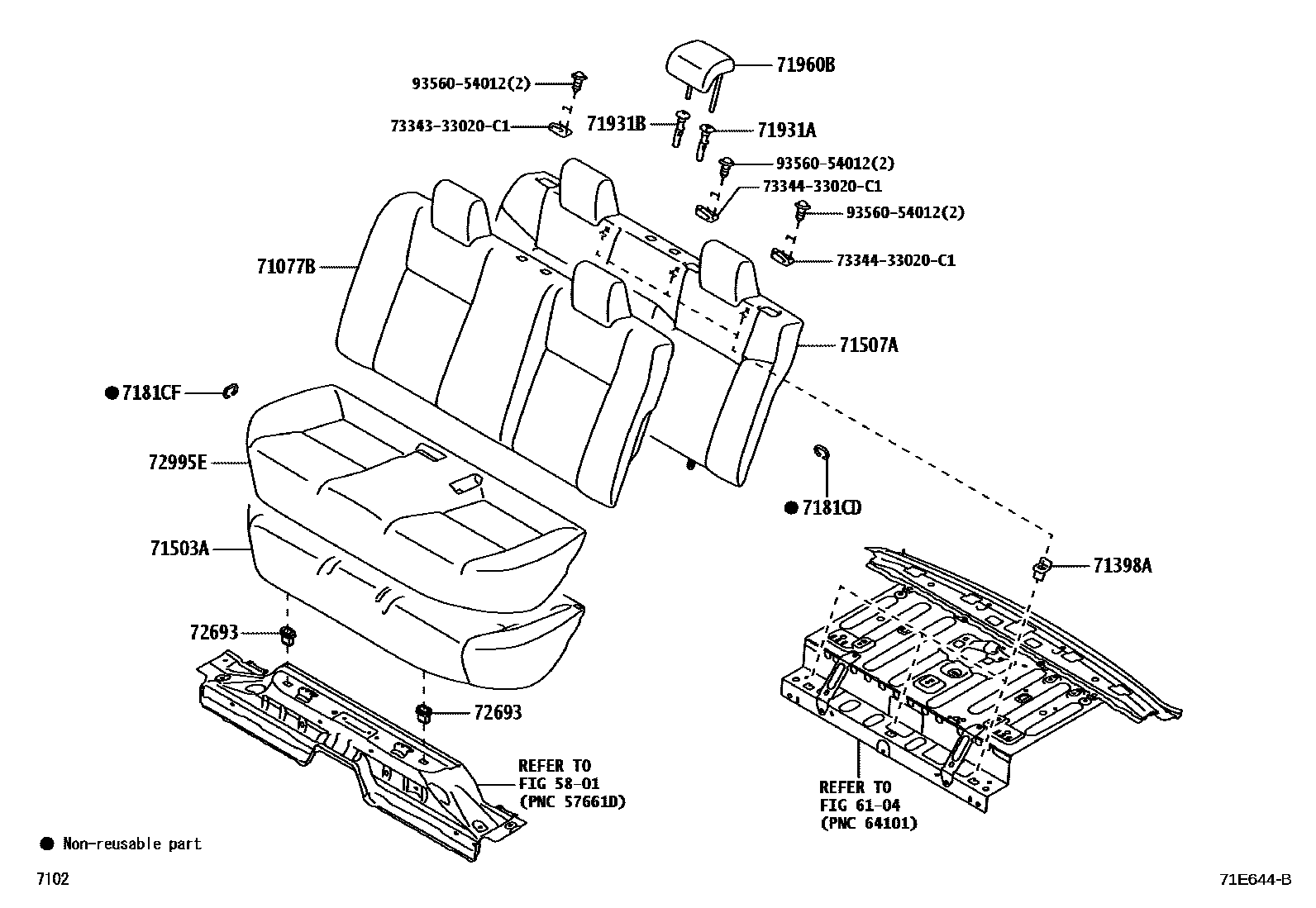

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

5801

6104

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-BZJ70-D5iNGC100202208

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),DK.ROSE,TRIM3#

main71077-BZN50-C4iNGC101,102..L;NGC101,102..M..GCC202208

GRADE PACKAGE-LO(TH),BLACK,TRIM2#

main71077-BZN50-C4iNGC100202208

BLACK,TRIM2#

main71077-BZN50-E4iNGC101,102..M..GCC202208

BEIGE,TRIM4#

main71077-BZN60-C4iNGC102..RHD..CVT..H..GEN202208-202304

SINGAPORE,BLACK,TRIM2#

sub71077-BZN60

main71077-BZN60-C4iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202208-202304

BLACK,TRIM2#

sub71077-BZN60

main71077-BZN60-C5iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202304

BLACK,TRIM2#

sub71077-BZN60

main71077-BZN60-C5iNGC102..RHD..CVT..H..GEN202304

SINGAPORE,BLACK,TRIM2#

sub71077-BZN60

main71077-BZN60-E4iNGC101..5F..M..GEN;NGC101,102..H..GCC;NGC101,102..RHD..M..GEN202208

BEIGE,TRIM4#

sub71077-BZN60

main71077-BZN70-C3iNGC100;NGC101,102..CVT..H..GEN202208-202304

BLACK,TRIM2#

sub71077-BZN70

main71077-BZN70-C3iNGC100202208-202304

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,TRIM2#

sub71077-BZN70

main71077-BZN70-C4iNGC100;NGC101,102..CVT..H..GEN202304

BLACK,TRIM2#

sub71077-BZN70

main71077-BZN70-C4iNGC100;NGC101,102..CVT..H..GEN202304

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,TRIM2#

sub71077-BZN70

main71077-BZN70-E4iNGC101..LHD..H..GEN;NGC102..RHD..CVT..H..GEN202208

BEIGE,TRIM4#

sub71077-BZN70

main71077-BZN80-C3iNGC102..M..MA202303-202304

BLACK,TRIM2#

sub71077-BZN80

main71077-BZN80-C4iNGC102..M..MA202304

BLACK,TRIM2#

sub71077-BZN80

main71077-BZN90-C2iNGC102..H..MA202303-202304

BLACK,TRIM2#

sub71077-BZN90

main71077-BZN90-C3iNGC102..H..MA202304

BLACK,TRIM2#

sub71077-BZN90

71398AHOLDER, REAR SEATBACK

main71398-02040iNGC10#202208

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-BZ650iNGC10#..THP202208

main71503-BZ660iNGC102..MA202303

71507APAD SUB-ASSY, REAR SEATBACK

main71507-BZ580iNGC10#,NYC100..THP202208

main71507-BZ590iNGC102..MA202303

7181CDRING, HOG, SMALL (FOR REAR SEATBACK)

main90468-18008iNGC10#,NYC100..THP202208

7181CFRING, HOG, SMALL (FOR REAR SEAT CUSHION)

main90468-18008iNGC10#202208

71931ASUPPORT, REAR SEAT HEADREST

main71930-02370-C3iNGC100202208

W(LOCK)&W(BUTTON),BLACK,TRIM2#,3#

sub71930-02370

main71930-02370-C3iNGC100202208

W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#

sub71930-02370

main71930-02370-C3iNGC100202208

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-02370

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71931-02130-C3iNGC101..RHD..M;NGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN;NGC102..RHD..CVT..GEN202208

W/O(LOCK),BLACK,TRIM2#

main71931-02130-C3iNGC100202208

W/O(LOCK),BLACK,TRIM2#,3#

main71931-02130-C3iNGC100202208

W/O(LOCK),BLACK,TRIM2#,4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-BZ120-C2iNGC100202208

GRADE PACKAGE-LO(TH),BLACK,TRIM2#

main71960-BZ120-C2iNGC100202208

BLACK,TRIM2#

main71960-BZ120-E2iNGC101,102..M..GCC202208

BEIGE,TRIM4#

main71960-BZ130-C1iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202208-202304

BLACK,TRIM2#

sub71960-BZ130

main71960-BZ130-C1iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202208-202304

SINGAPORE,BLACK,TRIM2#

sub71960-BZ130

main71960-BZ130-C3iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202304

BLACK,TRIM2#

sub71960-BZ130

main71960-BZ130-C3iNGC102..RHD..CVT..H..GEN202304

SINGAPORE,BLACK,TRIM2#

sub71960-BZ130

main71960-BZ130-E2iNGC101..5F..M..GEN;NGC101,102..H..GCC;NGC101,102..RHD..M..GEN202208

BEIGE,TRIM4#

sub71960-BZ130

main71960-BZ140-C0iNGC100;NGC101,102..CVT..H..GEN202208-202304

BLACK,TRIM2#

sub71960-BZ140

main71960-BZ140-C0iNGC100202208-202304

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,TRIM2#

sub71960-BZ140

main71960-BZ140-C5iNGC100202304

GRAY NO.205,TRIM2#

sub71960-BZ140

main71960-BZ140-C5iNGC101,102..CVT..H..GEN;NGC100,NYC100..THP..(G,M)202304

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),GRAY NO.205,TRIM2#

sub71960-BZ140

main71960-BZ140-E1iNGC101..LHD..H..GEN;NGC102..RHD..CVT..H..GEN202208

MELLOW WHITE NO.2,TRIM4#

sub71960-BZ140

main71960-BZ150-C1iNGC102..M..MA202303-202304

BLACK,TRIM2#

sub71960-BZ150

main71960-BZ150-C3iNGC102..M..MA202304

BLACK,TRIM2#

sub71960-BZ150

main71960-BZ160-C0iNGC102..H..MA202303-202304

BLACK,TRIM2#

sub71960-BZ160

main71960-BZ160-C2iNGC102..H..MA202304

GRAY NO.205,TRIM2#

sub71960-BZ160

main71960-BZ170-D1iNGC100202208

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),DK. ROSE,TRIM3#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iNGC10#202208

72995ECOVER, REAR SEAT CUSHION

main71075-BZK90-D2iNGC100202208

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),DK.ROSE,TRIM3#

main71075-BZN90-C2iNGC101,102..L;NGC101,102..M..GCC202208

BLACK,TRIM2#

main71075-BZN90-C2iNGC100202208

GRADE PACKAGE-LO(TH),BLACK,TRIM2#

main71075-BZN90-E2iNGC101,102..M..GCC202208

BEIGE,TRIM4#

main71075-BZP00-C2iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202208-202304

SINGAPORE,BLACK,TRIM2#

sub71075-BZP00

main71075-BZP00-C2iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202208-202304

BLACK,TRIM2#

sub71075-BZP00

main71075-BZP00-C3iNGC102..5F..H;NGC101,102..H..(GCC,PHL);NGC101,102..M..(GEN,PHL)202304

SINGAPORE,BLACK,TRIM2#

sub71075-BZP00

main71075-BZP00-C3iNGC102..RHD..CVT..H..GEN202304

BLACK,TRIM2#

sub71075-BZP00

main71075-BZP00-E2iNGC101..5F..M..GEN;NGC101,102..H..GCC;NGC101,102..RHD..M..GEN202208

BEIGE,TRIM4#

sub71075-BZP00

main71075-BZP10-C1iNGC100;NGC101,102..CVT..H..GEN202208-202304

BLACK,TRIM2#

sub71075-BZP10

main71075-BZP10-C1iNGC100202208-202304

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,TRIM2#

sub71075-BZP10

main71075-BZP10-C2iNGC100202304

GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,TRIM2#

sub71075-BZP10

main71075-BZP10-C2iNGC100;NGC101,102..CVT..H..GEN202304

BLACK,TRIM2#

sub71075-BZP10

main71075-BZP10-E1iNGC101..LHD..H..GEN;NGC102..RHD..CVT..H..GEN202208

BEIGE,TRIM4#

sub71075-BZP10

main71075-BZP20-C2iNGC102..M..MA202303-202304

BLACK,TRIM2#

sub71075-BZP20

main71075-BZP20-C3iNGC102..M..MA202304

BLACK,TRIM2#

sub71075-BZP20

main71075-BZP30-C1iNGC102..H..MA202303-202304

BLACK,TRIM2#

sub71075-BZP30

main71075-BZP30-C2iNGC102..H..MA202304

BLACK,TRIM2#

sub71075-BZP30

7334333020C1GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-33020C1

7334433020C1GUIDE, REAR SEAT SHOULDER BELT, LH

main73344-33020C1

9356054012

main93560-54012

16 parts on this diagram · 3 diagrams in section
