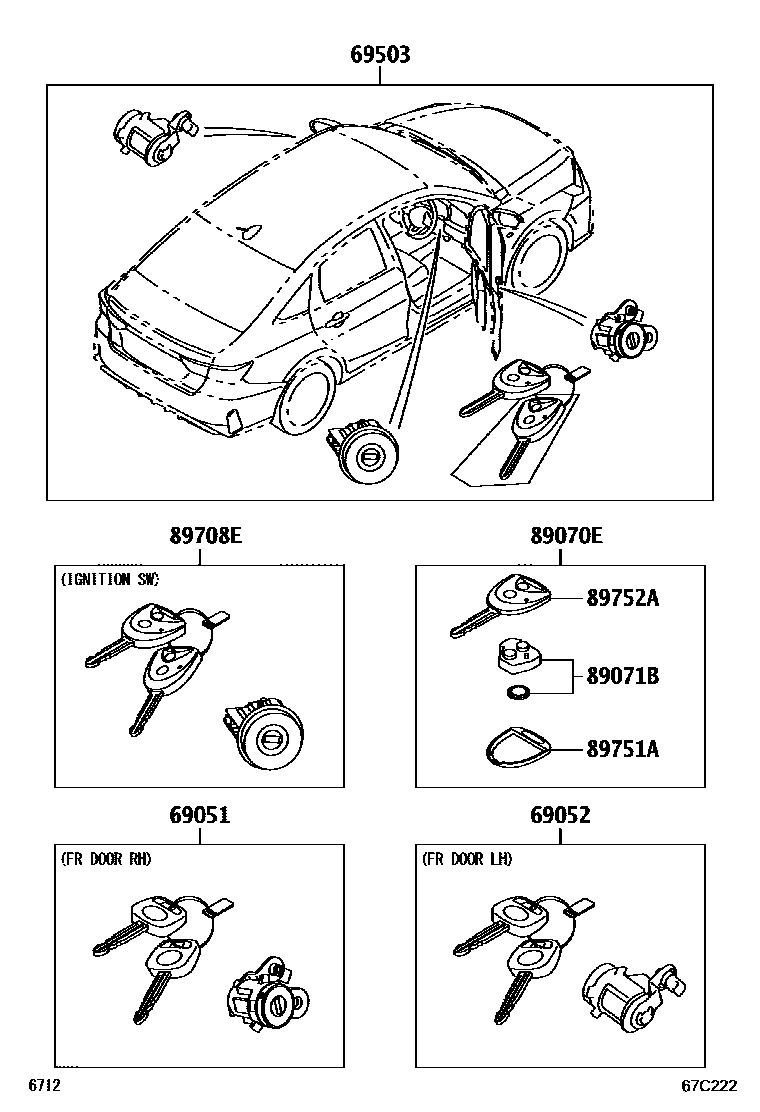

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-BZ330iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-BZ220iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208
69503CYLINDER SET, LOCK
main69005-BZF80iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208-202406
sub69005-BZF81
main69005-BZF81iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202407
SINGAPORE
89070ETRANSMITTER ASSY, DOOR CONTROL
main89070-BZ550iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208-202402
SINGAPORE
sub89070-BZ551
main89070-BZ551iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202403
SINGAPORE
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-BZ150iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208-202402
sub89071-BZ151
main89071-BZ151iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202403
SINGAPORE
89708ECYLINDER SET, LOCK W/TRANSMITTER
main89708-BZ321iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202403
SINGAPORE
89751ACOVER, TRANSMITTER HOUSING
main89751-BZ160iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208
SINGAPORE
main89751-BZ210iNGC102..MA,PHL;NGC101,102..H..GCC;NGC102..LHD..(H,M)..GEN;NGC102..RHD..CVT..H..GEN;NGC100,101..(H,M)..(GEN,PHL,TH)202208
SINGAPORE
89752ACASE, TRANSMITTER HOUSING
main89752-BZ260iNGC102..MA,PHL;NGC101,102..H..GCC;NGC102..LHD..(H,M)..GEN;NGC102..RHD..CVT..H..GEN;NGC100,101..(H,M)..(GEN,PHL,TH)202208
SINGAPORE
main89752-BZ340iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208
SINGAPORE
8 parts on this diagram · 5 diagrams in section
