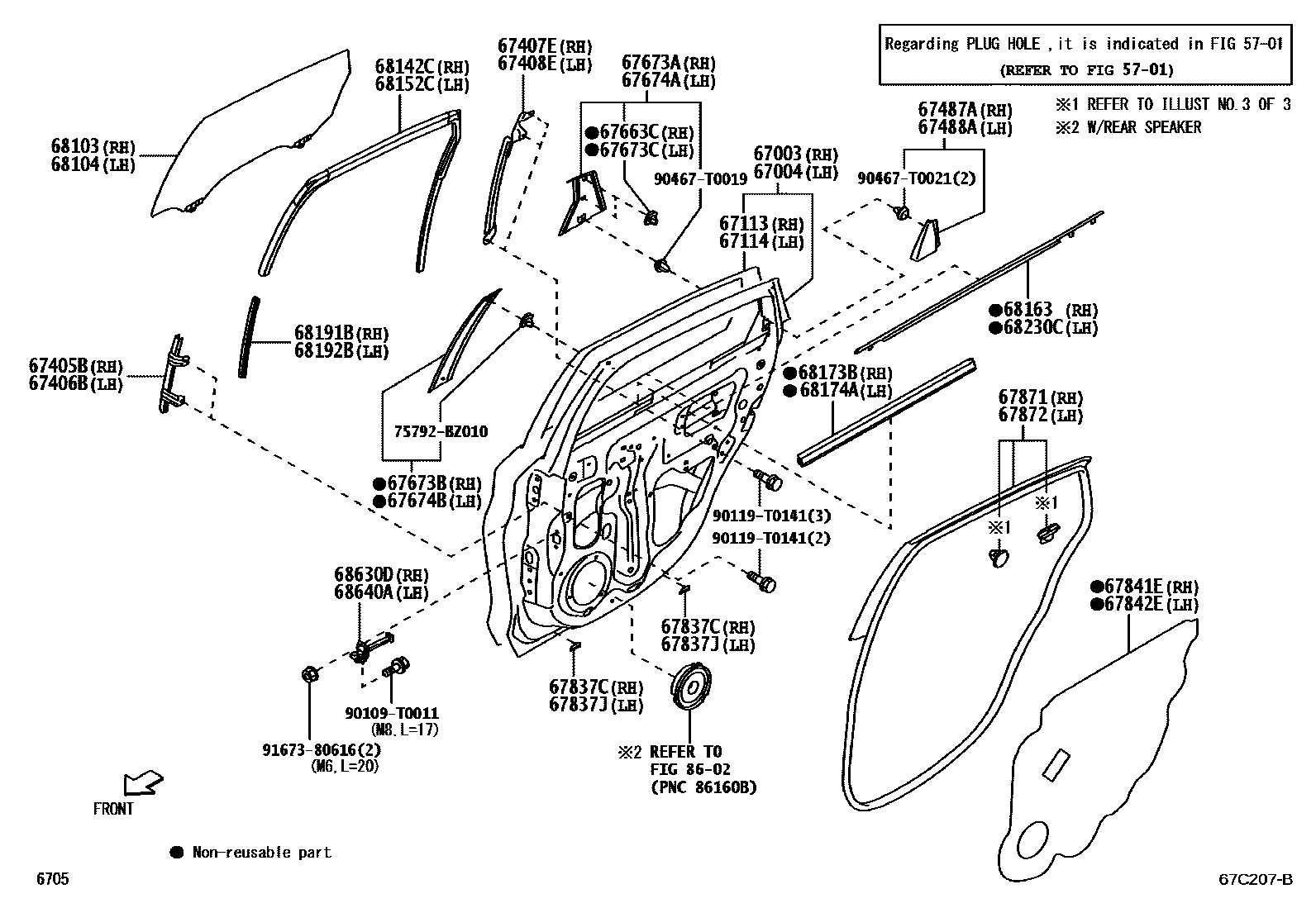

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WEATHERSTRIP RETAINER & CLIP

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-BZ760iNGC10#..GEN,MA,PHL,TH202208

main67003-BZ770iNGC101,102..GCC202208

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-BZ760iNGC10#..GEN,MA,PHL,TH202208

main67004-BZ770iNGC101,102..GCC202208

67113PANEL, REAR DOOR, OUTER RH

main67113-BZ440iNGC10#202208

67114PANEL, REAR DOOR, OUTER LH

main67114-BZ440iNGC10#202208

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-BZ110iNGC10#202208

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-BZ110iNGC10#202208

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-BZ220iNGC10#202208

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-BZ220iNGC10#202208

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-BZ110iNGC10#202208

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-BZ110iNGC10#202208

67663CCLIP(FOR DOOR FRAME GARNISH)

main75792-BZ010iNGC10#202208

67673AGARNISH, REAR DOOR FRAME, RH

main75765-BZ020iNGC10#202208

67673BGARNISH, REAR DOOR FRAME, RH

main75761-BZ010iNGC10#202208

67673CCLIP(FOR REAR DOOR FRAME GARNISH)

main75792-BZ010iNGC10#202208

67674AGARNISH, REAR DOOR FRAME, LH

main75766-BZ020iNGC10#202208

67674BGARNISH, REAR DOOR FRAME, LH

main75762-BZ010iNGC10#202208

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K090iNGC10#¥80202208

67837JSEAL, DOOR DUST PROOF

main67837-0K090iNGC10#¥80202208

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-BZ480iNGC101..L;NGC102..5F..L202208

GRADE PACKAGE-LO(TH)

main67841-BZ490iNGC10#..H,M;NGC102..CVT..L202208

MEXICO

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-BZ260iNGC101..L;NGC102..5F..L202208

GRADE PACKAGE-LO(TH)

main67842-BZ270iNGC10#..H,M;NGC102..CVT..L202208

MEXICO

67871WEATHERSTRIP, REAR DOOR, RH

main67871-BZ280iNGC10#202208

67872WEATHERSTRIP, REAR DOOR, LH

main67872-BZ280iNGC10#202208

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-BZ490iNGC10#,NYC100..THP202208

main68103-BZ520iNGC102..MA202303

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-BZ490iNGC10#,NYC100..THP202208

main68104-BZ520iNGC102..MA202303

68142CRUN, REAR DOOR GLASS, RH

main68142-BZ250iNGC10#202208

68152CRUN, REAR DOOR GLASS, LH

main68152-BZ250iNGC10#202208

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68163-BZ260iNGC100,101;NGC102..L,M;NGC102..5F..H;NGC102..LHD..H..(GCC,GEN)202208

SINGAPORE

main68163-BZ260iNGC100,101;NGC102..L,M;NGC102..5F..H;NGC102..LHD..H..(GCC,GEN)202208

NEPAL

main68163-BZ260iNGC100,101;NGC102..L,M;NGC102..5F..H;NGC102..LHD..H..(GCC,GEN)202208

BANGLADESH

main68163-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

UNITED ARAB EMIRATES

main68163-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

GCC

main68163-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

QATAR

main68163-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

YEMEN,JORDAN,LEBANON

main68163-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

GRADE PACKAGE-HI(TH)

main68163-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

GRADE PACKAGE-HI(SRI LANKA)

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-BZ290iNGC10#202208

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-BZ290iNGC10#202208

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68144-BZ150iNGC10#202208

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68144-BZ150iNGC10#202208

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68164-BZ260iNGC100,101;NGC102..L,M;NGC102..5F..H;NGC102..LHD..H..(GCC,GEN)202208

SINGAPORE

main68164-BZ260iNGC100,101;NGC102..L,M;NGC102..5F..H;NGC102..LHD..H..(GCC,GEN)202208

NEPAL

main68164-BZ260iNGC100,101;NGC102..L,M;NGC102..5F..H;NGC102..LHD..H..(GCC,GEN)202208

BANGLADESH

main68164-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

UNITED ARAB EMIRATES

main68164-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

GCC

main68164-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

QATAR

main68164-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

YEMEN,JORDAN,LEBANON

main68164-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

GRADE PACKAGE-HI(TH)

main68164-BZ270iNGC102..PHL;NGC102..RHD..CVT..H202208

GRADE PACKAGE-HI(SRI LANKA)

68630DCHECK ASSY, REAR DOOR, RH

main68630-BZ210iNGC10#,NYC100..THP202208

main68630-BZ230iNGC102..MA202303

68640ACHECK ASSY, REAR DOOR, LH

main68630-BZ210iNGC10#,NYC100..THP202208

main68630-BZ230iNGC102..MA202303

8602

75792BZ010CLIP, DOOR WINDOW FRAME MOULDING

main75792-BZ010

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90467T0019

main90467-T0019

90467T0021

main90467-T0021

9167380616

main91673-80616¥60

42 parts on this diagram · 3 diagrams in section
