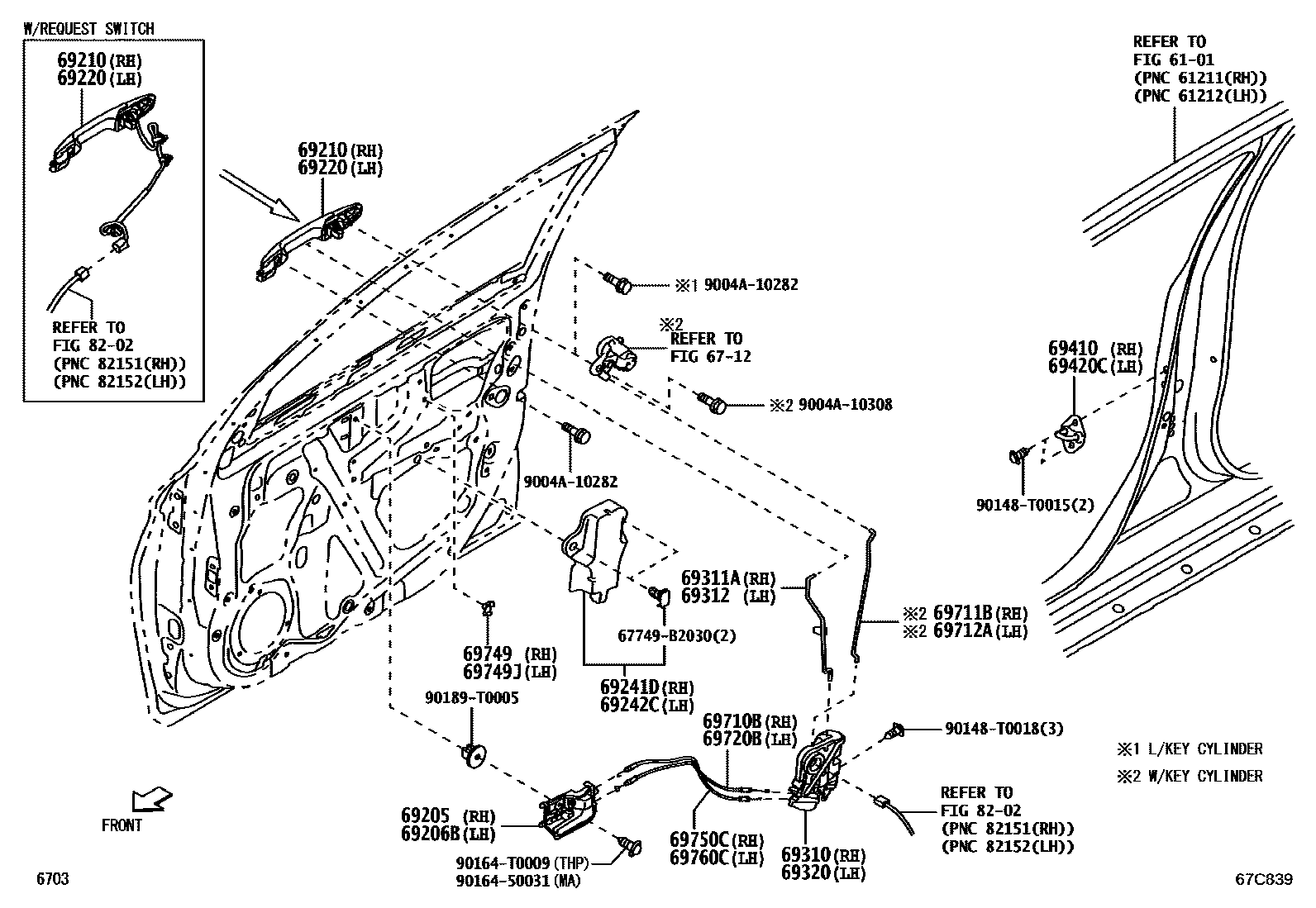

FRONT DOOR LOCK & HANDLE

6101

6712

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-BZ230-C0iNGC101,102..L202208

BLACK,TRIM2#,4#

main69270-BZ240-C1iNGC101..RHD..M;NGC101..LHD..H;NGC102..H..GCC;NGC101..5F..M..GEN;NGC102..RHD..CVT..H..GEN202208

BLACK,TRIM2#,4#

main69270-BZ270-C1iNGC102..MA202303

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-BZ230-C0iNGC101,102..L202208

BLACK,TRIM2#,4#

main69280-BZ240-C1iNGC100202208

BLACK,TRIM2#,4#

main69280-BZ270-C1iNGC102..MA202303

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-BZ730-A0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

SUPER WHITE 2,040

main69210-BZ730-A1iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

PLATINUM WHITE PEARL MC.,089

main69210-BZ730-B0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

GRAY ME.,S44

main69210-BZ730-B1iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

METAL STREAM ME,1K0

main69210-BZ730-C0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

ATTITUDE BLACK MC.,218

main69210-BZ730-D0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

SCARLET SE.,R77

main69210-BZ730-D1iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

RED M.M.,3R3

main69210-BZ740-A0iNGC102..RHD..M..GEN202208

SUPER WHITE 2,040

main69210-BZ740-A1iNGC102..RHD..M..GEN202208

PLATINUM WHITE PEARL MC.,089

main69210-BZ740-B0iNGC102..RHD..M..GEN202208

GRAY ME.,S44

main69210-BZ740-B1iNGC102..RHD..M..GEN202208

METAL STREAM ME,1K0

main69210-BZ740-B2iNGC100202410

CEMENT GRAY ME.,2YY

main69210-BZ740-C0iNGC102..RHD..CVT..H..GEN;NGC100,101,NYC100..RHD..THP..(G,H,M)202208

ATTITUDE BLACK MC.,218

main69210-BZ740-D0iNGC102..RHD..M..GEN202208

SINGAPORE,SCARLET SE.,R77

main69210-BZ740-D1iNGC102..RHD..M..GEN202208

SINGAPORE,RED M.M.,3R3

main69210-BZ750-A0iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..GEN202208

SUPER WHITE 2,040

main69210-BZ750-A1iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

PLATINUM WHITE PEARL MC.,089

main69210-BZ750-B0iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

GRAY ME.,S44

main69210-BZ750-B1iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

METAL STREAM ME,1K0

main69210-BZ750-C0iNGC101,102..H..GCC;NGC101,102,NYC100..LHD..(H,M)..GEN202208

ATTITUDE BLACK MC.,218

main69210-BZ750-D0iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

SCARLET SE.,R77

main69210-BZ750-D1iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..GEN202208

RED M.M.,3R3

main69210-BZ780-A0iNGC102..MA202303

PLATINUM WHITE PEARL MC.,089

main69210-BZ780-B0iNGC102..MA202303

SILVER ME.,1D4

main69210-BZ780-B1iNGC102..MA202303

CELESTITE GRAY ME.,1K3

main69210-BZ780-C0iNGC102..MA202303

ATTITUDE BLACK MC.,218

main69210-BZ780-D0iNGC102..MA202303

SCARLET SE.,R77

main69210-BZ780-J0iNGC102..MA202303

NEBULA BLUE ME.,8X2

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-BZ730-A0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

SUPER WHITE 2,040

main69220-BZ730-A1iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

PLATINUM WHITE PEARL MC.,089

main69220-BZ730-B0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

GRAY ME.,S44

main69220-BZ730-B1iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

METAL STREAM ME,1K0

main69220-BZ730-C0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

ATTITUDE BLACK MC.,218

main69220-BZ730-D0iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

SCARLET SE.,R77

main69220-BZ730-D1iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

RED M.M.,3R3

main69220-BZ740-A0iNGC102..RHD..M..GEN202208

SINGAPORE,SUPER WHITE 2,040

main69220-BZ740-A1iNGC101..RHD..(H,M);NGC102..RHD..CVT..H..GEN202208

PLATINUM WHITE PEARL MC.,089

main69220-BZ740-B0iNGC102..RHD..M..GEN202208

GRAY ME.,S44

main69220-BZ740-B1iNGC102..RHD..M..GEN202208

METAL STREAM ME,1K0

main69220-BZ740-B2iNGC100202410

CEMENT GRAY ME.,2YY

main69220-BZ740-C0iNGC102..RHD..CVT..H..GEN;NGC100,101,NYC100..RHD..THP..(G,H,M)202208

SINGAPORE,ATTITUDE BLACK MC.,218

main69220-BZ740-D0iNGC102..RHD..M..GEN202208

SINGAPORE,SCARLET SE.,R77

main69220-BZ740-D1iNGC102..RHD..M..GEN202208

SINGAPORE,RED M.M.,3R3

main69220-BZ750-A0iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..GEN202208

SUPER WHITE 2,040

main69220-BZ750-A1iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

PLATINUM WHITE PEARL MC.,089

main69220-BZ750-B0iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

GRAY ME.,S44

main69220-BZ750-B1iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

METAL STREAM ME,1K0

main69220-BZ750-C0iNGC101,102..H..GCC;NGC101,102,NYC100..LHD..(H,M)..GEN202208

ATTITUDE BLACK MC.,218

main69220-BZ750-D0iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..(GEN,PHL)202208

SCARLET SE.,R77

main69220-BZ750-D1iNGC101,102..H..GCC;NGC101,102..LHD..(H,M)..GEN202208

RED M.M.,3R3

main69220-BZ780-A0iNGC102..MA202303

PLATINUM WHITE PEARL MC.,089

main69220-BZ780-B0iNGC102..MA202303

SILVER ME.,1D4

main69220-BZ780-B1iNGC102..MA202303

CELESTITE GRAY ME.,1K3

main69220-BZ780-C0iNGC102..MA202303

ATTITUDE BLACK MC.,218

main69220-BZ780-D0iNGC102..MA202303

SCARLET SE.,R77

main69220-BZ780-J0iNGC102..MA202303

NEBULA BLUE ME.,8X2

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main75787-BZ090iNGC10#202208

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main75788-BZ090iNGC10#202208

69310LOCK ASSY, FRONT DOOR, RH

main69310-BZ420iNGC102..5F..H;NGC101..CVT..L;NGC102..RHD..M..GEN202208

main69310-BZ430iNGC102,NYC100..LHD..(H,M)..GEN202208

BAHAMAS

main69310-BZ440iNGC101,102..H..GCC;NGC101,102,NYC100..LHD..(H,M)..GEN202208

main69310-BZ460iNGC101,102..M..GCC;NGC101,102..LHD..L202208

main69310-BZ610iNGC102..RHD..M..GEN202208

SINGAPORE

main69310-BZ620iNGC100,102..MA,TH202208

W.SAMOA

main69310-BZ410iNGC101..CVT..L202208

BRB,CYM,JAM,TTO,ATG,KNA(COUNTRY CODE)

main69310-BZ450iNGC101,102..M..GCC202208

UNITED ARAB EMIRATES

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-BZ150iNGC10#202208

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-BZ150iNGC10#202208

69320LOCK ASSY, FRONT DOOR, LH

main69320-BZ380iNGC100,102..MA,TH202208

W.SAMOA

main69320-BZ390iNGC102..RHD..M..GEN202208

SINGAPORE

main69320-BZ410iNGC101,102..M..GCC;NGC101,102..LHD..L202208

main69320-BZ420iNGC102..5F..H;NGC101..CVT..L;NGC102..RHD..M..GEN202208

main69320-BZ590iNGC102,NYC100..LHD..(H,M)..GEN202208

BAHAMAS

main69320-BZ600iNGC101,102..H..GCC;NGC101,102,NYC100..LHD..(H,M)..GEN202208

main69320-BZ210iNGC101..CVT..L202208

BRB,CYM,JAM,TTO,ATG,KNA(COUNTRY CODE)

main69320-BZ400iNGC101,102..M..GCC202208

UNITED ARAB EMIRATES

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D070iNGC10#202208

69420CPLATE ASSY, DOOR LOCK STRIKER

main69410-0D070iNGC10#202208

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-BZ170iNGC10#,NYC100..THP202208

main69710-BZ190iNGC102..MA202303

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-BZ170iNGC101,102..RHD;NGC101,102..LHD..L;NGC10#..M..(GCC,TH)202208

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-BZ170iNGC102..5F..H;NGC101..CVT..L;NGC102..LHD..H;NGC101,NYC100..LHD;NGC102..THP..(L,M)202208

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-BZ170iNGC10#,NYC100..THP202208

main69710-BZ190iNGC102..MA202303

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iNGC10#202208

69749JCLAMP, FRONT DOOR LOCK

main69749-32040iNGC10#202208

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-BZ170iNGC10#,NYC100..THP202208

main69750-BZ190iNGC102..MA202303

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-BZ170iNGC10#,NYC100..THP202208

main69760-BZ190iNGC102..MA202303

8202

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030

9004A10282

main9004A-10282

9004A10308

main9004A-10308

90148T0015

main90148-T0015

90148T0018

main90148-T0018

9016450031

main90164-50031

90164T0009

main90164-T0009

90189T0005

main90189-T0005

31 parts on this diagram · 1 diagram in section
