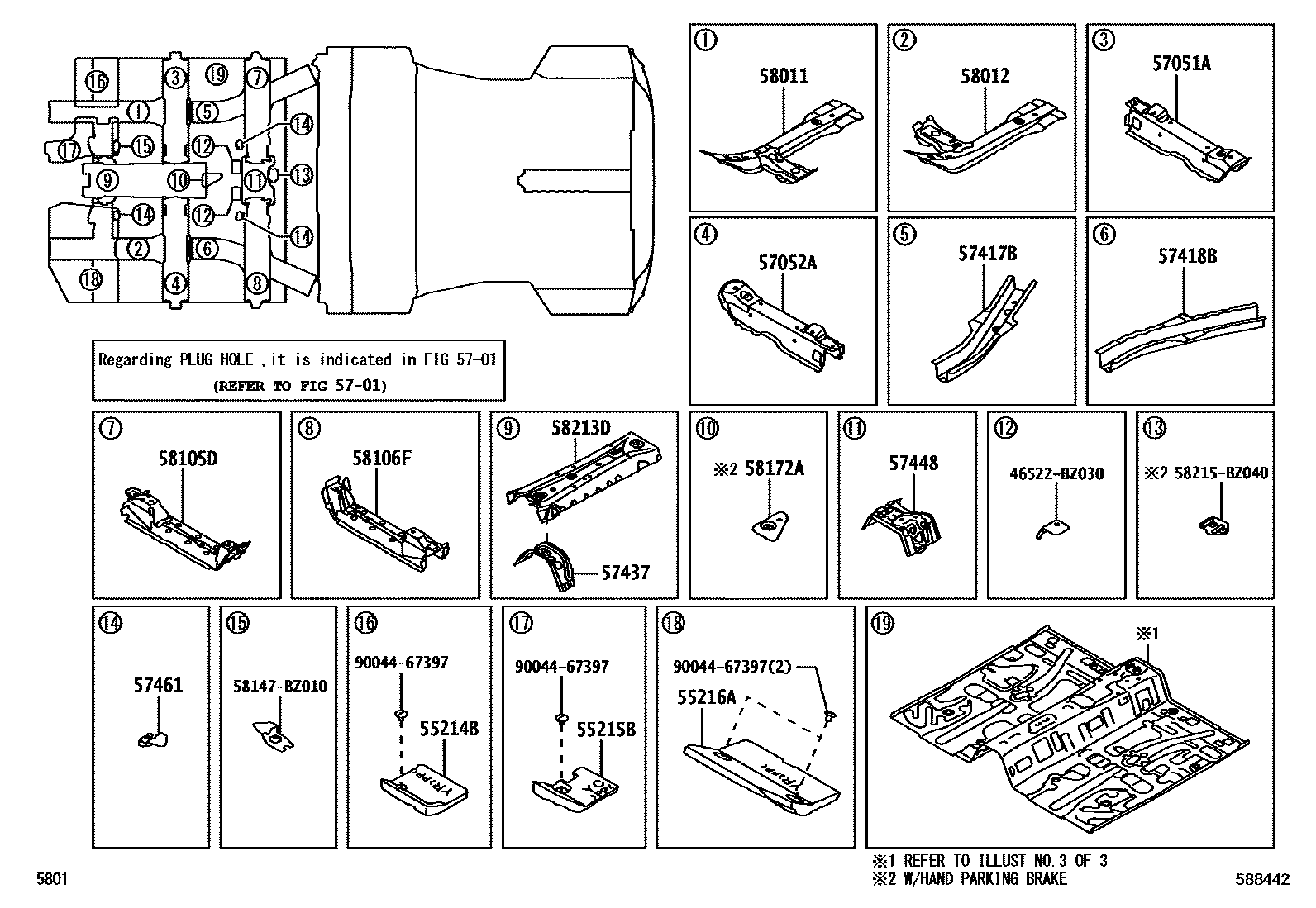

FLOOR PAN & LOWER BACK PANEL

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1FRONT FLOOR

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-BZ180iNGC10#..RHD202208

main55214-BZ190iNGC101,102,NYC100..LHD202208

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-BZ160iNGC10#..RHD..CVT202208

main55215-BZ170iNGC102..5F..H202208

main55215-BZ180iNGC101,102,NYC100..LHD202208

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-BZ110iNGC10#..RHD202208

main55216-BZ120iNGC101,102,NYC100..LHD202208

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-BZ280iNGC10#202208

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-BZ200iNGC10#202208

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-BZ110iNGC102..LHD..H..GEN202208

MEXICO&W/O LATIN NCAP PACKAGE

main57417-BZ110iNGC102..LHD..H..GEN202208

MEXICO

main57417-BZ120iNGC102..MA202303

main57417-BZ170iNGC102..5F..L;NGC100,101..GEN,PHL,TH;NGC102..(H,M)..(GEN,PHL)202208

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-BZ020iNGC102..MA202303

main57418-BZ070iNGC102..LHD..H..GEN202208

MEXICO

main57418-BZ070iNYC100..THP;NGC102..CVT..L;NGC101,102..GCC202208

MEXICO&W/O LATIN NCAP PACKAGE

main57418-BZ080iNGC102..5F..L;NGC100,101..GEN,PHL,TH;NGC102..(H,M)..(GEN,PHL)202208

57437REINFORCEMENT, CENTER FLOOR, CENTER

main58214-BZ090iNGC10#202208

57448RETAINER, CENTER FLOOR CROSSMEMBER

main57055-BZ030iNGC102..RHD..CVT..GEN202208

BRUNEI

main57055-BZ030iNGC102..RHD..CVT..GEN202208

BANGLADESH

main57055-BZ030iNGC102..RHD..M..GEN202208

INDONESIA&SAFETY PACKAGE

main57055-BZ030iNGC102..RHD..CVT..GEN202208

SINGAPORE

main57055-BZ040iNGC101..RHD..M;NGC102..RHD..GEN;NGC101,102..M..(GCC,PHL)202208

FIJI

main57055-BZ040iNGC101..LHD..CVT..M..GEN202208

NEPAL

main57055-BZ040iNGC101..LHD..CVT..M..GEN202208

VANUATU

57461BRACKET, FLOOR PANEL

main58137-BZ020iNGC10#202208

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58025-BZ070iNGC10#202208

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58026-BZ070iNGC10#202208

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-BZ140iNGC102..RHD..M..GEN202208

SINGAPORE

main58105-BZ140iNGC102..RHD..M..GEN202208

BRUNEI

main58105-BZ140iNGC102..RHD..M..GEN202208

BANGLADESH

main58105-BZ140iNGC102..RHD..CVT..GEN202208

INDONESIA&SAFETY PACKAGE

main58105-BZ150iNGC101..LHD..CVT..M..GEN202208

FIJI

main58105-BZ150iNGC101..RHD..M;NGC102..RHD..GEN;NGC101,102..M..(GCC,PHL)202208

NEPAL

main58105-BZ150iNGC101..RHD..M;NGC102..RHD..GEN;NGC101,102..M..(GCC,PHL)202208

VANUATU

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-BZ040iNGC102..RHD..CVT..GEN202208

BANGLADESH

main58106-BZ040iNGC102..RHD..M..GEN202208

INDONESIA&SAFETY PACKAGE

main58106-BZ040iNGC102..RHD..M..GEN202208

SINGAPORE

main58106-BZ040iNGC102..RHD..M..GEN202208

BRUNEI

main58106-BZ050iNGC101..RHD..H202208

FIJI

main58106-BZ050iNGC101..RHD..H202208

VANUATU

main58106-BZ050iNGC101..RHD..H202208

NEPAL

58172APLATE, PARKING BRAKE MOUNTING

main46521-BZ050iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA)202208

MEXICO

main46521-BZ050iNGC102..LHD..H..GEN202208

MEXICO&W/O LATIN NCAP PACKAGE

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-BZ200iNGC102..MA202208-202311

main58213-BZ220iNGC102..MA202311

46522BZ030

main46522-BZ030

58147BZ010BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-BZ010

58215BZ040REINFORCEMENT, FRONT FLOOR, FRONT

main58215-BZ040

9004467397

main90044-67397

21 parts on this diagram · 4 diagrams in section
