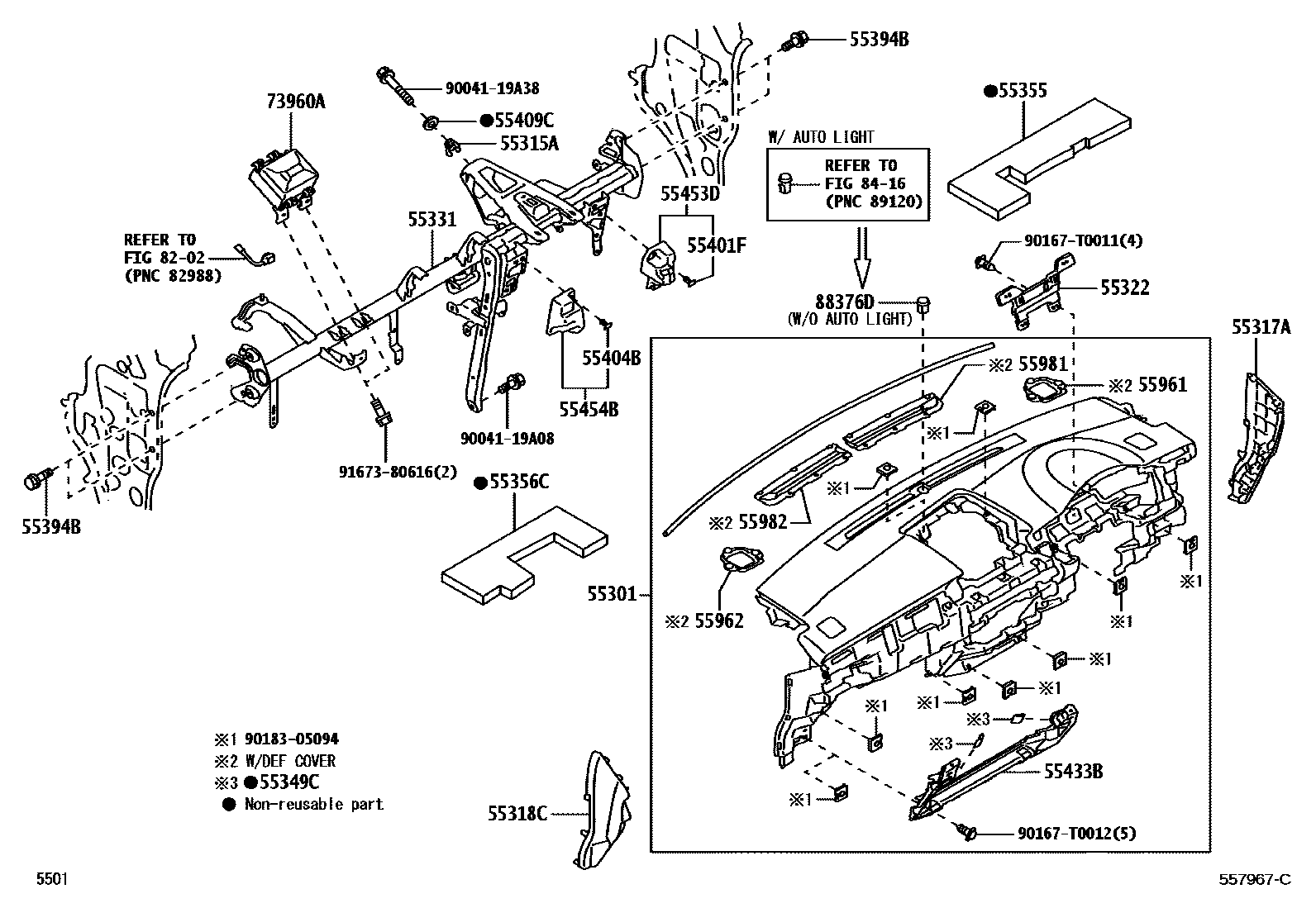

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

55301PANEL SUB-ASSY, INSTRUMENT

main55310-BZ040-C0iNGC102..RHD..M..GEN202208

NEPAL,BLACK,TRIM2#,4#

main55310-BZ050-C0iNGC100202208

BLACK,TRIM2#,3#

main55310-BZ060-C0iNGC101..5F..L;NGC102..LHD..GEN;NGC101..LHD..CVT..M..GEN202208

BLACK,TRIM2#,4#

main55310-BZ070-C0iNGC101,102..PHL202208

BLACK,TRIM2#

main55310-BZ090-C0iNGC102..MA202303

BLACK,TRIM2#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2020iNGC10#202208

55317APANEL, INSTRUMENT SIDE, RH

main55317-BZ050-C0iNGC101..RHD..M;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#,3#

main55318-BZ060-C0iNGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN202208

BLACK,TRIM2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-BZ060-C0iNGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN202208

BLACK,TRIM2#,4#

main55318-BZ050-C0iNGC101..RHD..M;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#,3#

55322BRACKET, INSTRUMENT PANEL, NO.1

main55322-BZ230iNGC10#202208

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZD00iNGC10#..RHD..CVT202208

main55305-BZD10iNGC102..5F..H202208

main55305-BZD20iNGC101,102..LHD..CVT202208

main55305-BZD30iNGC101,102..LHD..5F202208

55349CCUSHION, INSTRUMENT PANEL

main55349-0D360×2iNGC10#,NYC100..THP202208

main55349-0D370×2iNGC102..MA202303

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-BZ210iNGC10#202208

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-BZ210iNGC10#202208

55394BBOLT, INSTRUMENT PANEL

main90041-19A09×4iNGC10#202208

55401FCLIP(FOR SAFETY PAD)

main55345-BZ010×2iNGC10#..RHD202208

55404BCLIP, SAFETY PAD SET

main55345-BZ010×2iNGC10#..RHD202208

55409CPLUG, HOLE

main90048-71319iNGC10#202208

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-BZ040-C0iNGC101..RHD..M;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#,3#

main55433-BZ050-C0iNGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN202208

BLACK,TRIM2#,4#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ200iNGC10#..RHD202208

main55453-BZ210iNGC101,102,NYC100..LHD202208

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ200iNGC10#..RHD202208

main55454-BZ210iNGC101,102,NYC100..LHD202208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-BZ060-C0iNYC100..G..TH;NGC101,102..PHL;NGC102..RHD..GEN202208

BLACK,TRIM2#,3#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-BZ060-C0iNYC100..G..TH;NGC101,102..PHL;NGC102..RHD..GEN202208

BLACK,TRIM2#,3#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-BZ120-C0iNYC100..G..TH;NGC101,102..PHL;NGC102..RHD..GEN202208

BLACK,TRIM2#,3#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-BZ120-C0iNYC100..G..TH;NGC101,102..PHL;NGC102..RHD..GEN202208

BLACK,TRIM2#,3#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-BZ040iNGC10#,NYC100..THP202208

main73960-BZ050iNGC102..MA202303

8202

8416

88376DCAP, BLIND

main88376-B2010iNGC102..RHD..M..GEN202208

GRADE PACKAGE-LO(TH)

9004119A08

main90041-19A08

9004119A38

main90041-19A38

90167T0011

main90167-T0011

90167T0012

main90167-T0012

9018305094

main90183-05094

9167380616

main91673-80616

30 parts on this diagram · 11 diagrams in section
