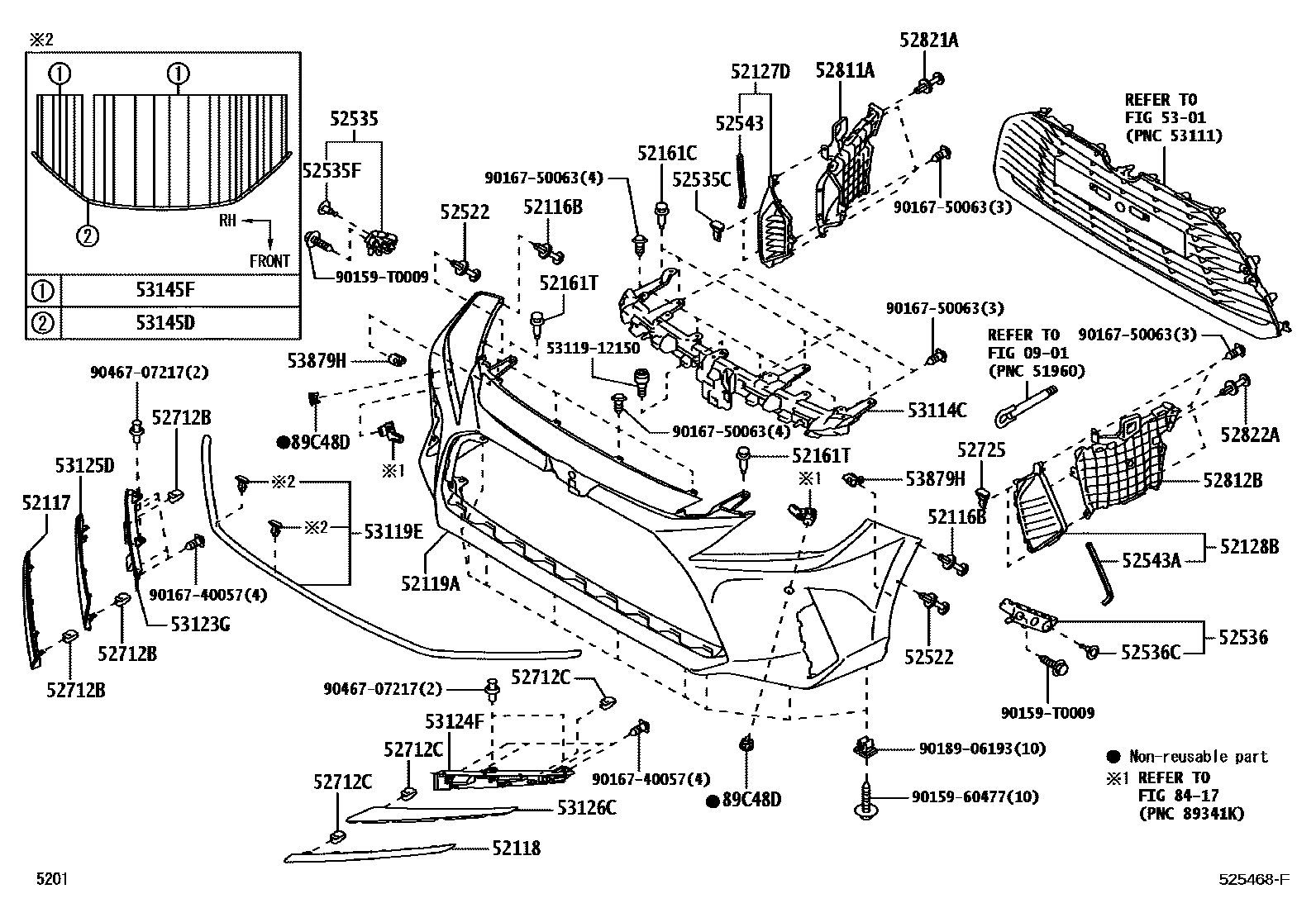

FRONT BUMPER & BUMPER STAY
0901
52116BRETAINER, FRONT BUMPER
52117MOULDING, BUMPER SIDE, RH
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
GRADE PACKAGE-HI(TH),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(SRI LANKA),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1K0 ,R77 ,S44
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
52118MOULDING, BUMPER SIDE, LH
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
GRADE PACKAGE-HI(TH),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1K0 ,R77 ,S44
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(SRI LANKA),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
52119ACOVER, FRONT BUMPER
PAINT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
PAINT REQ.
PAINT REQ.,SINGAPORE
PAINT REQ.,MEXICO
main52119-BZ911iNGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL);NGC101,NYC100..H..(GEN,PHL,TH)202208
PAINT REQ.,GRADE PACKAGE-HI(TH)
main52119-BZ911iNGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL);NGC101,NYC100..H..(GEN,PHL,TH)202208
PAINT REQ.
main52119-BZ911iNGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL);NGC101,NYC100..H..(GEN,PHL,TH)202208
PAINT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
main52119-BZ911iNGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL);NGC101,NYC100..H..(GEN,PHL,TH)202208
PAINT REQ.,GRADE PACKAGE-HI(SRI LANKA)
PAINT REQ.
52127DCOVER, FRONT BUMPER HOLE, RH
NO PAINT REQ.,GRADE PACKAGE-HI(SRI LANKA),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3,R77 ,S44
NO PAINT REQ.,BLACK,089 ,1K0 ,R77 ,S44
NO PAINT REQ.,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
NO PAINT REQ.,GRADE PACKAGE-HI(TH),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
NO PAINT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,2PS,2YY ,3R3 ,R77 ,S44
NO PAINT REQ.,BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
NO PAINT REQ.,GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
NO PAINT REQ.
52128BCOVER, FRONT BUMPER HOLE, LH
BLACK,089 ,1K0 ,R77 ,S44
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(TH),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
GRADE PACKAGE-HI(SRI LANKA),BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44
BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
52161CPIECE, FRONT BUMPER
52161TPIECE, FRONT BUMPER
52522RETAINER, FRONT BUMPER UPPER SIDE
52535RETAINER, FRONT BUMPER SIDE, RH
52535CRETAINER, FRONT BUMPER SIDE
52535FCLIP, FRONT BUMPER SIDE RETAINER
52536RETAINER, FRONT BUMPER SIDE, LH
52536CCLIP, FRONT BUMPER SIDE RETAINER
52543SEAL, FRONT BUMPER SIDE, RH
52543ASEAL, FRONT BUMPER SIDE
52712BCLIP, FRONT BUMPER MOULDING
52712CCLIP, FRONT BUMPER MOULDING, NO.2
52725RETAINER, FRONT BUMPER SIDE MOULDING
52811ADUCT, COOL AIR INTAKE, NO.1
52812BDUCT, COOL AIR INTAKE, NO.2
52821ACLIP, AIR INTAKE DUCT
52822ACLIP, AIR INTAKE DUCT
5301
53114CGRILLE, RADIATOR, INNER
53119EPROTECTOR, RADIATOR GRILLE
53123GMOULDING, RADIATOR GRILLE SIDE, RH
53124FMOULDING, RADIATOR GRILLE SIDE, LH
53125DMOULDING, RADIATOR GRILLE, NO.5
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
53126CMOULDING, RADIATOR GRILLE, NO.6
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER)
53145DCLIP, RADIATOR GRILLE
GRAY TO BLACK
53145FCLIP, RADIATOR GRILLE GARNISH
53879HRETAINER, FRONT FENDER LINER
8417
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
SINGAPORE,SUPER WHITE 2,040
SUPER WHITE 2,040
MEXICO,SUPER WHITE 2,040
GRADE PACKAGE-HI(TH),SUPER WHITE 2,040
GRADE PACKAGE-HI(SRI LANKA),SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SINGAPORE,PLATINUM WHITE PEARL MC.,089
MEXICO,PLATINUM WHITE PEARL MC.,089
GRADE PACKAGE-HI(TH),PLATINUM WHITE PEARL MC.,089 ,2PS
GRADE PACKAGE-HI(SRI LANKA),PLATINUM WHITE PEARL MC.,089 ,2PS
GRADE PACKAGE-HI(SRI LANKA),GRAY ME.,S44
main89348-BZ290-B0iNYC100..H..TH;NGC101..H..GEN;NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL)202208
GRAY ME.,S44
main89348-BZ290-B0iNYC100..H..TH;NGC101..H..GEN;NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL)202208
SINGAPORE,GRAY ME.,S44
main89348-BZ290-B0iNYC100..H..TH;NGC101..H..GEN;NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL)202208
MEXICO,GRAY ME.,S44
main89348-BZ290-B0iNYC100..H..TH;NGC101..H..GEN;NGC102..RHD..CVT..GEN;NGC102..LHD..H..(GEN,PHL)202208
GRADE PACKAGE-HI(TH),GRAY ME.,S44
SILVER ME.,1D4
MEXICO,METAL STREAM ME,1K0
GRADE PACKAGE-HI(TH),METAL STREAM ME,1K0
GRADE PACKAGE-HI(SRI LANKA),METAL STREAM ME,1K0
METAL STREAM ME,1K0
SINGAPORE,METAL STREAM ME,1K0
CELESTITE GRAY ME.,1K3
ATTITUDE BLACK MC.,218
SINGAPORE,ATTITUDE BLACK MC.,218
MEXICO,ATTITUDE BLACK MC.,218
GRADE PACKAGE-HI(TH),ATTITUDE BLACK MC.,218
GRADE PACKAGE-HI(SRI LANKA),ATTITUDE BLACK MC.,218
GRADE PACKAGE-HI(TH),SCARLET SE.,R77
SCARLET SE.,R77
SINGAPORE,SCARLET SE.,R77
MEXICO,SCARLET SE.,R77
GRADE PACKAGE-HI(SRI LANKA),SCARLET SE.,R77
MEXICO,RED M.M.,3R3
GRADE PACKAGE-HI(TH),RED M.M.,3R3
GRADE PACKAGE-HI(SRI LANKA),RED M.M.,3R3
RED M.M.,3R3
SINGAPORE,RED M.M.,3R3
NEBULA BLUE ME.,8X2
5311912150SUPPORT, RADIATOR GRILLE, SIDE
9015960477
90159T0009
main90159-T0009
9016740057
9016750063
9018906193
9046707217
43 parts on this diagram · 2 diagrams in section
