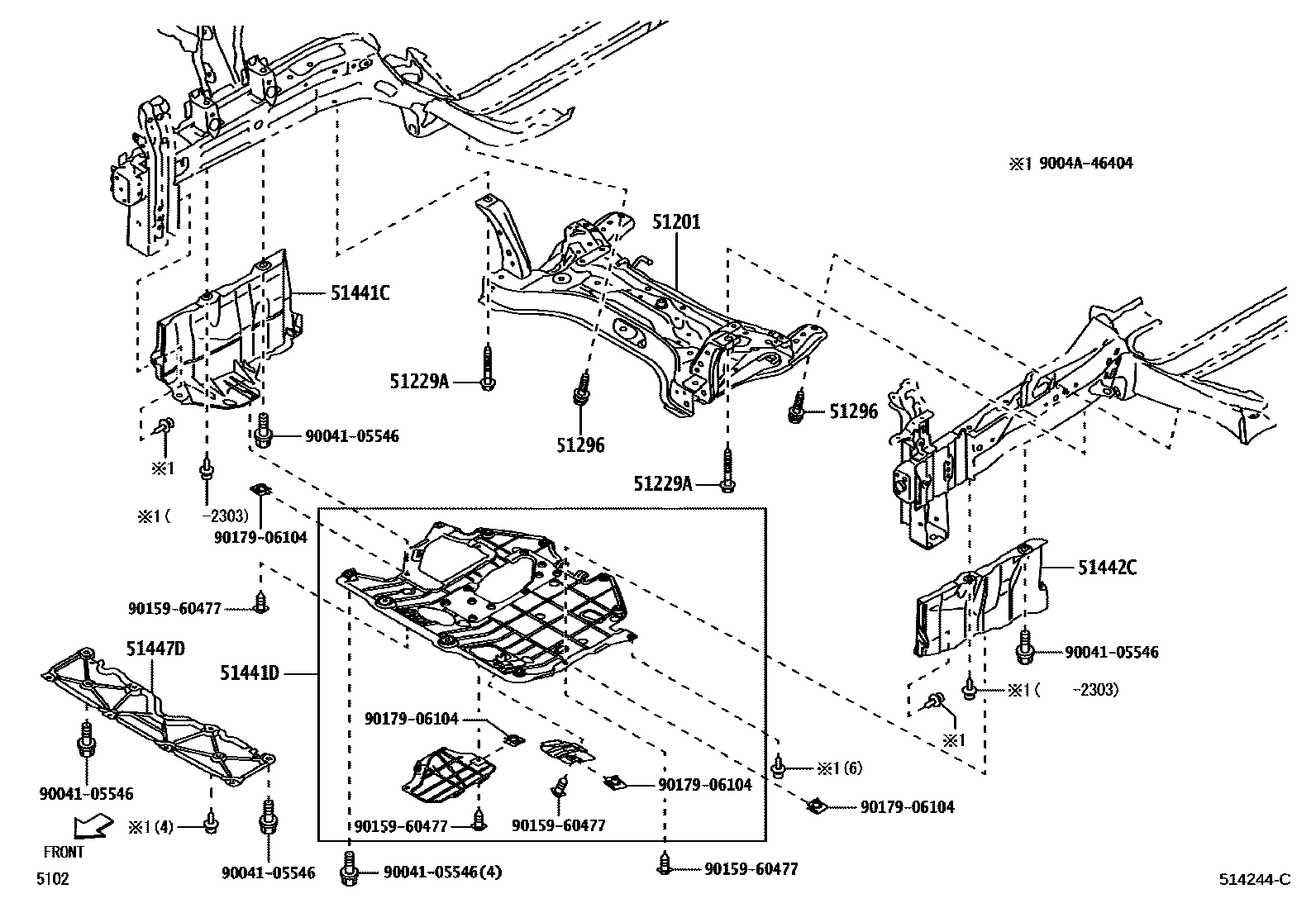

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-BZ170iNGC10#202208

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-05594×2iNGC10#202208

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main91673-A1025×2iNGC10#202208

51441CCOVER, ENGINE UNDER, RH

main51441-BZ310iNGC10#..THP202208

main51441-BZ340iNGC102..MA202303

51441DCOVER, ENGINE UNDER

main51405-BZ180iNGC10#202208

51442CCOVER, ENGINE UNDER, LH

main51442-BZ150iNGC102..MA202303

main51442-BZ200iNGC10#..THP202208

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-BZ020iNGC10#202208

9004105546

main90041-05546

9004A46404

main9004A-46404

9015960477

main90159-60477

9017906104

main90179-06104

11 parts on this diagram · 1 diagram in section
