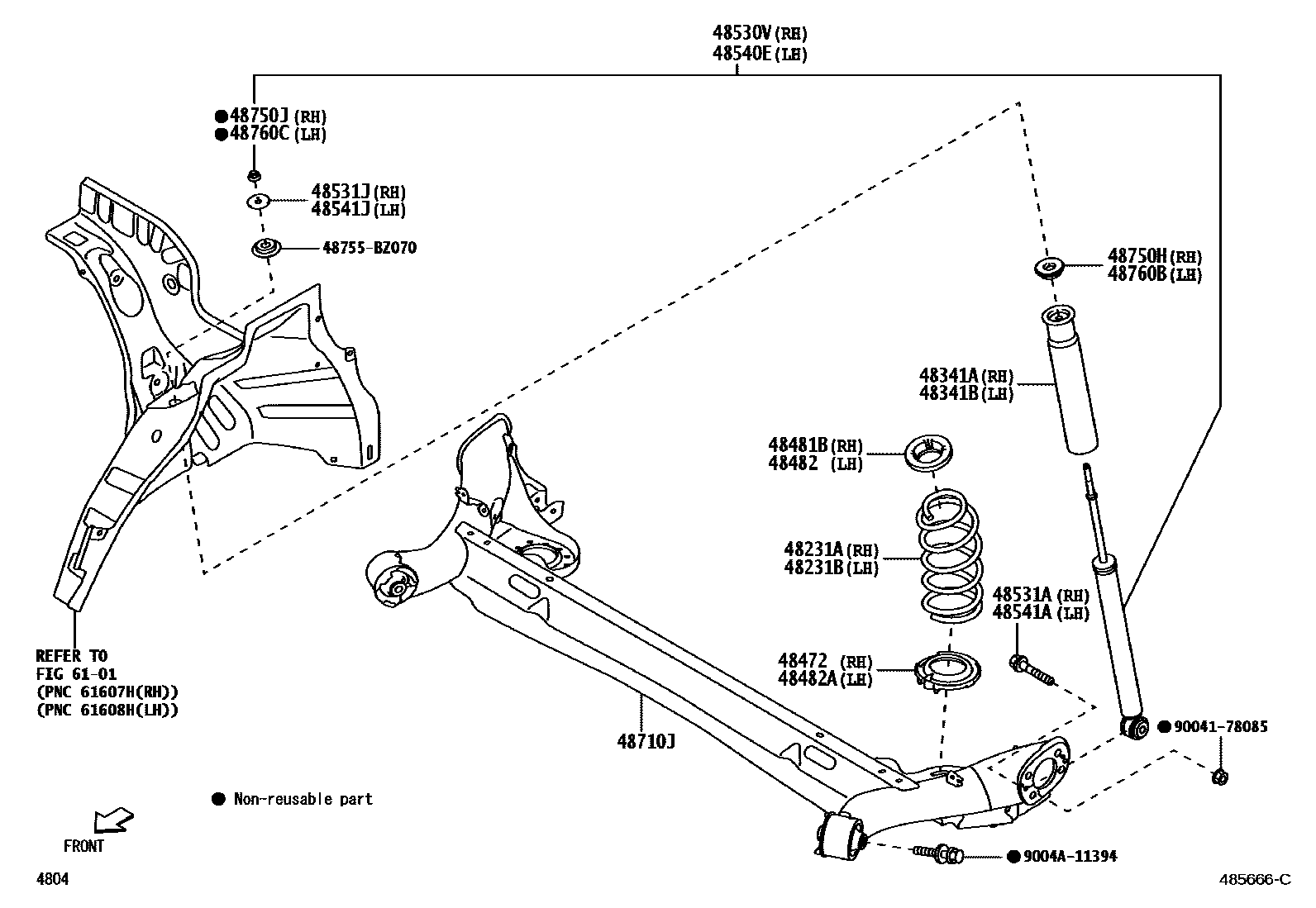

REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-BZA30iNGC100,101;NGC102..5F..L;NGC102..THP..(H,M)202208

main48231-BZA50iNGC101..5F..M..GEN;NGC101..LHD..H..GEN202208

CAMBODIA

main48231-BZC10iNGC102..MA202303

48231BSPRING, COIL, REAR LH

main48231-BZA30iNGC100,101;NGC102..5F..L;NGC102..THP..(H,M)202208

main48231-BZA50iNGC101..5F..M..GEN;NGC101..LHD..H..GEN202208

CAMBODIA

main48231-BZC10iNGC102..MA202303

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-BZ220iNGC10#202208

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-BZ220iNGC10#202208

48472SEAT, REAR SPRING, LOWER

main48482-BZ190iNGC10#202208

48481BSEAT, REAR SPRING, UPPER RH

main48481-BZ120iNGC10#202208

48482SEAT, REAR SPRING, UPPER LH

main48481-BZ120iNGC10#202208

48482ASEAT, REAR SPRING, LOWER

main48482-BZ190iNGC10#202208

48530VABSORBER SET, SHOCK, REAR RH

main48531-8Z034iNGC101;NGC102..THP..M;NGC102..H..GCC;NGC102..5F..(H,L)202208

MARK 48531-BZB60

main48531-8Z035iNGC102..RHD..M..GEN202208

MARK 48531-BZB70

main48531-8Z036iNGC101,102..RHD..M..GEN202208

MARK 48531-BZB80,NEPAL

main48531-8Z041iNGC102..MA202303

MARK 48531-BZD40

main48531-8Z037iNGC102..RHD..CVT..H..GEN202208

MARK 48531-BZC90,NEPAL

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main90041-01716iNGC10#202208

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90201-10320iNGC10#202208

48540EABSORBER SET, SHOCK, REAR LH

main48531-8Z034iNGC101;NGC102..THP..M;NGC102..H..GCC;NGC102..5F..(H,L)202208

MARK 48531-BZB60

main48531-8Z035iNGC102..RHD..M..GEN202208

MARK 48531-BZB70

main48531-8Z036iNGC101,102..RHD..M..GEN202208

MARK 48531-BZB80,NEPAL

main48531-8Z041iNGC102..MA202303

MARK 48531-BZD40

main48531-8Z037iNGC102..RHD..CVT..H..GEN202208

MARK 48531-BZC90,NEPAL

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main90041-01716iNGC10#202208

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90201-10320iNGC10#202208

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-BZ480iNGC10#,NYC100..THP202208

main48710-BZ530iNGC102..MA202303

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-BZ070iNGC10#202208

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94188-01001iNGC10#202208

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-BZ070iNGC10#202208

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94188-01001iNGC10#202208

6101

48755BZ070SUPPORT, REAR SUSPENSION

main48755-BZ070

9004178085

main90041-78085

9004A11394

main9004A-11394

23 parts on this diagram · 1 diagram in section
