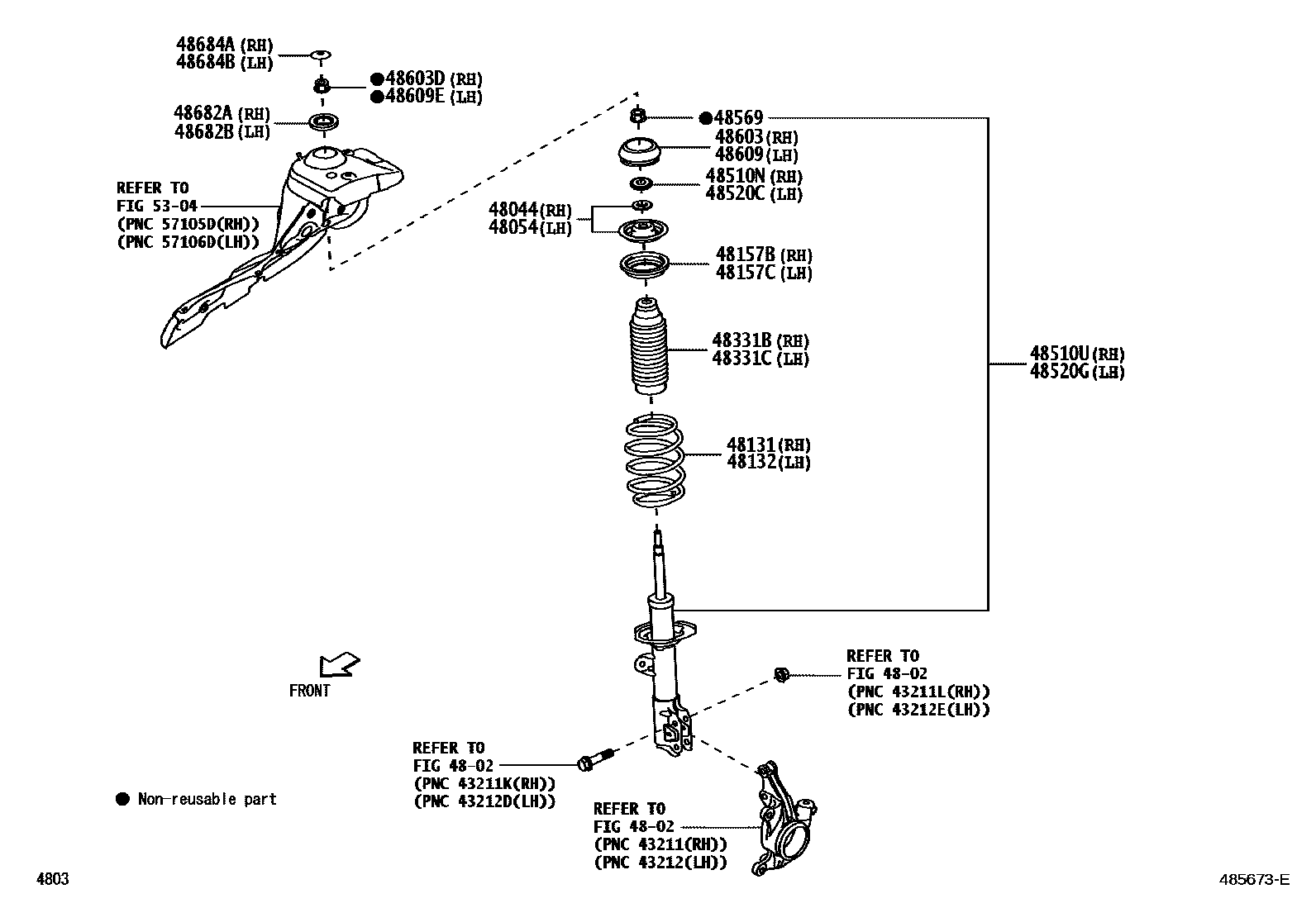

FRONT SPRING & SHOCK ABSORBER

0001 1SHOCK ABSORBER 0002 1STABILIZER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-BZ140iNGC102..MA202303

main48044-BZ190iNGC10#,NYC100..THP202208

48054SEAT SUB-ASSY, FRONT SPRING, NO.2

main48044-BZ140iNGC102..MA202303

main48044-BZ190iNGC10#,NYC100..THP202208

48131SPRING, FRONT COIL, RH

main48131-BZA40iNGC100,101..CVT;NGC102..THP..CVT..(H,M)202208

main48131-BZA50iNGC101,102..5F202208

main48131-BZC30iNGC101..CVT..L;NGC102..RHD..CVT..H..GEN202208

HONDURAS

main48131-BZE70iNGC102..MA202303

main48131-BZE20iNGC101..5F..M..GEN202208

NICARAGUA

48132SPRING, FRONT COIL, LH

main48131-BZA40iNGC100,101..CVT;NGC102..THP..CVT..(H,M)202208

main48131-BZA50iNGC101,102..5F202208

main48131-BZC30iNGC101..CVT..L;NGC102..RHD..CVT..H..GEN202208

HONDURAS

main48131-BZE70iNGC102..MA202303

main48131-BZE20iNGC101..5F..M..GEN202208

NICARAGUA

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-BZ080iNGC10#202208

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-BZ080iNGC10#202208

48331BBUMPER, FRONT SPRING, RH

main48331-BZ250iNGC10#;NYC100..THP..H202208

48331CBUMPER, FRONT SPRING, LH

main48331-BZ250iNGC10#;NYC100..THP..H202208

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90043-89155iNGC10#202208

48510UABSORBER SET, SHOCK, FRONT RH

main48510-B9000iNGC102..MA202303-202308

MARK 48510-BZJ40

main48510-B9001iNGC102..MA202308

MARK 48510-BZJ40

main48510-B9830iNGC101;NGC102..THP..M;NGC102..H..GCC;NGC102..5F..(H,L)202208-202308

MARK 48510-BZF10

main48510-B9831iNGC101;NGC102..THP..M;NGC102..H..GCC;NGC102..5F..(H,L)202308

MARK 48510-BZF10

main48510-B9840iNGC102..RHD..M..GEN202208-202308

MARK 48510-BZF20,SINGAPORE

main48510-B9841iNGC102..RHD..M..GEN202308

MARK 48510-BZF20,SINGAPORE

main48510-B9850iNGC101..5F..M..GEN;NGC101..LHD..H..GEN202208-202308

MARK 48510-BZF30,NEPAL

main48510-B9851iNGC101..5F..M..GEN;NGC101..LHD..H..GEN202308

MARK 48510-BZF30,NEPAL

main48510-B9860iNGC102..RHD..CVT..H..GEN202208-202308

MARK 48510-BZG90,NEPAL

main48510-B9861iNGC102..RHD..CVT..H..GEN202308

MARK 48510-BZG90,NEPAL

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90043-89155iNGC10#202208

48520GABSORBER SET, SHOCK, FRONT LH

main48520-B9520iNGC101;NGC102..THP..M;NGC102..H..GCC;NGC102..5F..(H,L)202208-202308

MARK 48520-BZB20

main48520-B9521iNGC101;NGC102..THP..M;NGC102..H..GCC;NGC102..5F..(H,L)202308

MARK 48520-BZB20

main48520-B9530iNGC102..RHD..M..GEN202208-202308

MARK 48520-BZB30

main48520-B9531iNGC102..RHD..M..GEN202308

MARK 48520-BZB30

main48520-B9540iNGC101..5F..M..GEN;NGC101..LHD..H..GEN202208-202308

MARK 48520-BZB40,SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)

main48520-B9541iNGC101..5F..M..GEN;NGC101..LHD..H..GEN202308

MARK 48520-BZB40,SRI LANKA&GRADE PACKAGE-HI(SRI LANKA)

main48520-B9590iNGC102..MA202303-202308

MARK 48520-BZD40

main48520-B9591iNGC102..MA202308

MARK 48520-BZD40

main48520-B9550iNGC102..RHD..CVT..H..GEN202208-202308

MARK 48520-BZC90,NEPAL

main48520-B9551iNGC102..RHD..CVT..H..GEN202308

MARK 48520-BZC90,NEPAL

48569NUT, SHOCK ABSORBER PISTON

main90041-78085×2iNGC10#202208-202308

main90178-T0064×2iNGC10#;NYC100..THP202308

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-BZ190iNGC10#202208

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90041-78085iNGC10#202208-202308

main90178-T0064iNGC10#202308

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-BZ190iNGC10#202208

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90041-78085iNGC10#202208-202308

main90178-T0064iNGC10#202308

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-BZ030iNGC10#202208

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-BZ030iNGC10#202208

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-BZ130iNGC10#202208

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-BZ130iNGC10#202208

5304

23 parts on this diagram · 2 diagrams in section
