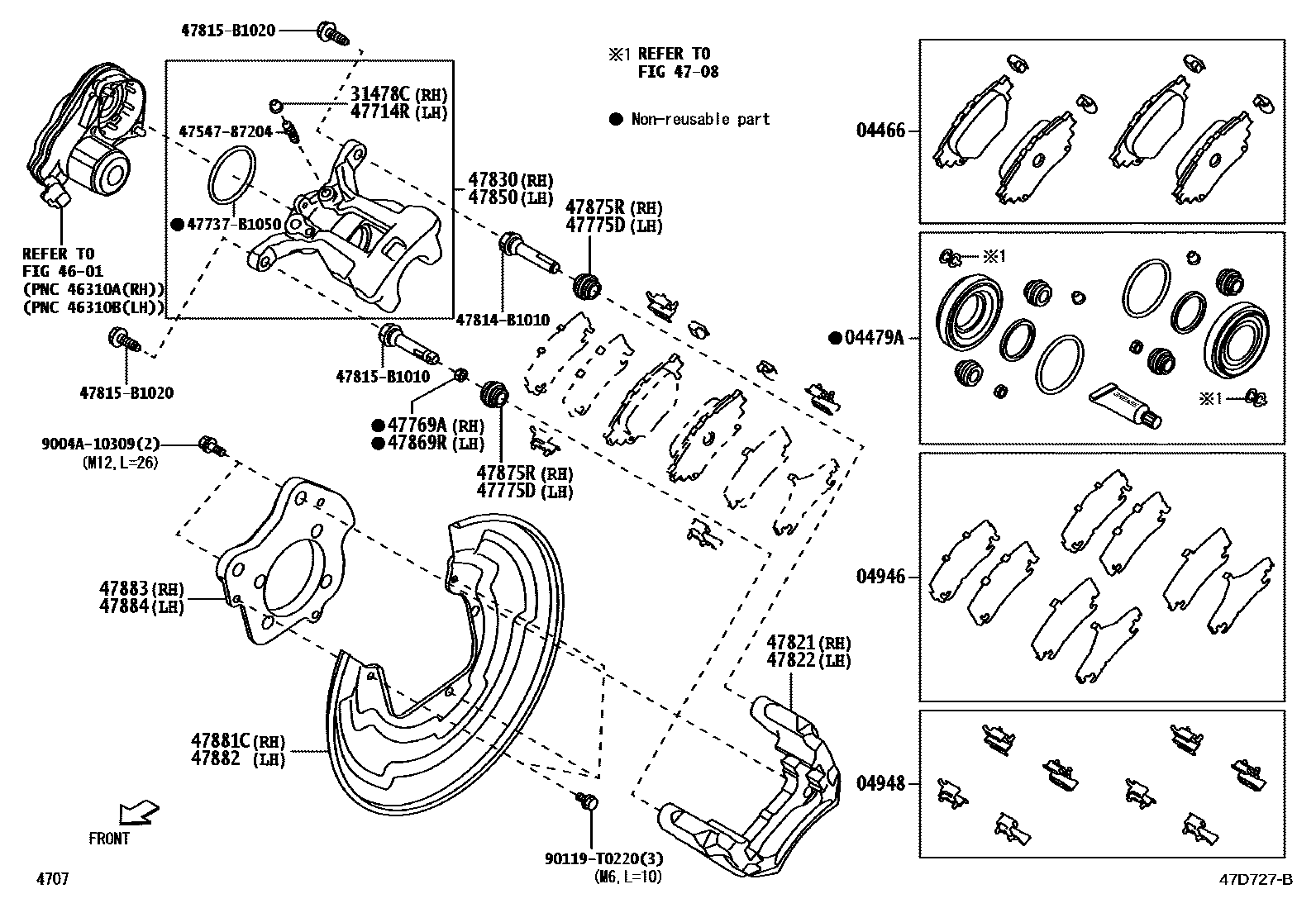

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-B1010iNGC100202208-202209

MARK ADVICS VC123,GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA)

sub04466-B1011

main04466-B1011iNGC100202209

GRADE PACKAGE-HI(TH)

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

04948FITTING KIT, DISC BRAKE, REAR

main04948-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main47548-87501iNGC100202208

GRADE PACKAGE-HI(TH)

4601

4708

47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main47548-87501iNGC100202208

GRADE PACKAGE-HI(TH)

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47869RBUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-B1010iNGC100202208

GRADE PACKAGE-HI(TH)

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-BZ010iNGC100202208

GRADE PACKAGE-HI(TH)

47882COVER, DISC BRAKE DUST, REAR LH

main47882-BZ010iNGC100202208

GRADE PACKAGE-HI(TH)

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-BZ040iNGC100202208

GRADE PACKAGE-HI(TH)

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-BZ040iNGC100202208

GRADE PACKAGE-HI(TH)

4754787204PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-87204

47737B1050SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-B1050

47814B1010PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-B1010

47815B1010PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-B1010

47815B1020PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-B1020

9004A10309

main9004A-10309

90119T0220

main90119-T0220

27 parts on this diagram · 1 diagram in section
