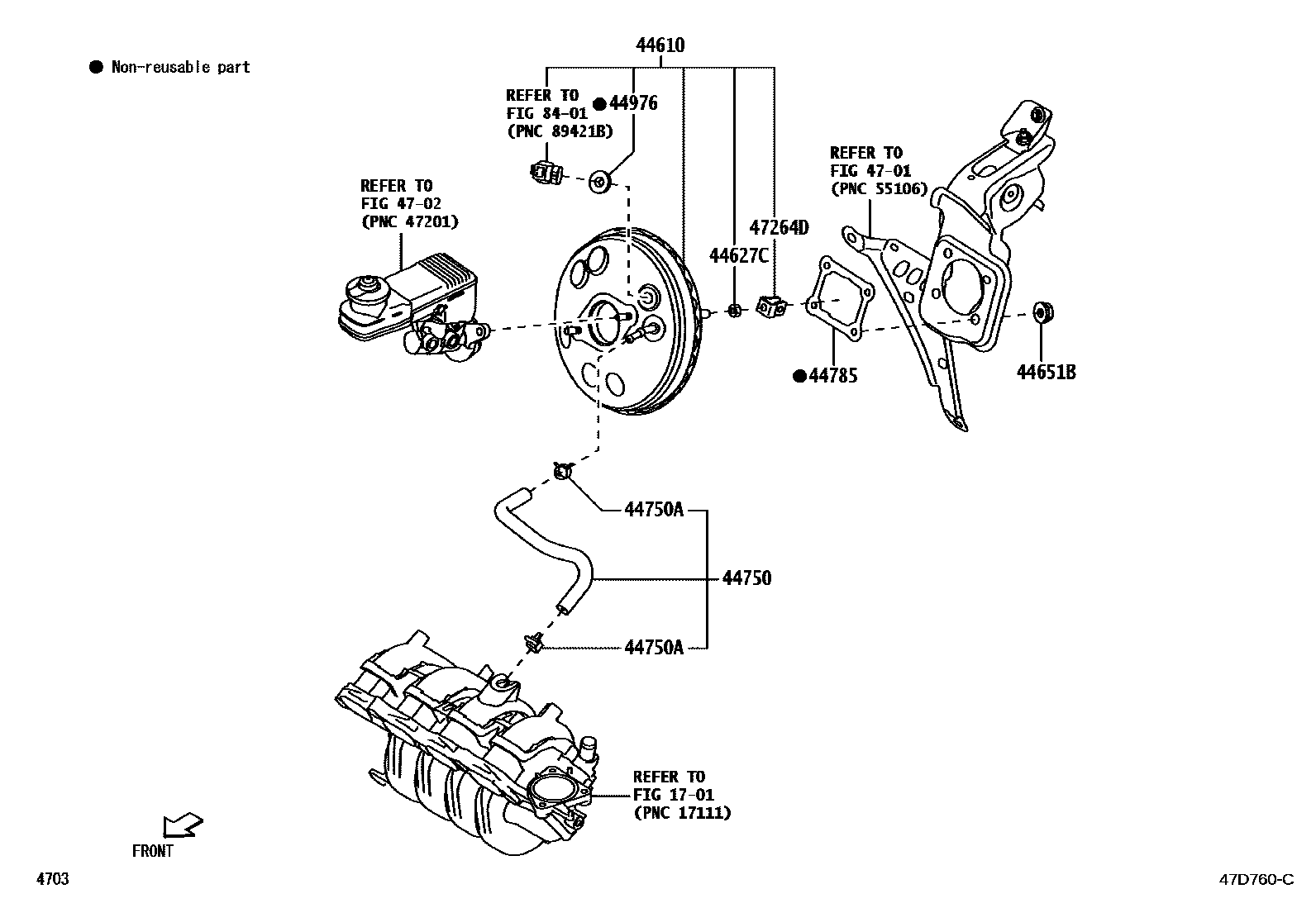

BRAKE BOOSTER & VACUUM TUBE

0001 1RHD 0002 1RHD EVP 0003 1LHD 0004 1LHD W/EJECTOR

1701

44610BOOSTER ASSY, BRAKE

main44610-BZB00iNGC101,102..RHD202208

main44610-BZB10iNGC102..5F..L;NGC101,102..LHD..M;NGC101,102..LHD..H..(GEN,PHL)202208

main44610-BZB20iNGC101..LHD..M..GEN202208-202310

MEXICO

main44610-BZB30iNGC100202208

44627CNUT, BOOSTER SLEEVE CYLINDER

main94130-01002iNGC10#202208

44651BNUT, BOOSTER

main90041-79300×4iNGC10#202208

44750HOSE ASSY, VACUUM

main44750-BZ510iNGC102..MA202303

main44750-BZ530iNGC101,102..RHD..GEN202208

main44750-BZ540iNGC102..5F..L;NGC101,102..LHD..M;NGC101,102..LHD..H..(GEN,PHL)202208

main44750-BZ560iNGC100202208

main44750-BZ610iNGC101..LHD..M..GEN202208-202310

MEXICO

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161iNGC101..LHD..M..GEN202208-202310

MEXICO

44785GASKET, BRAKE BOOSTER

main47275-BZ010iNGC10#202208

sub47278-87703

44976SEAL, BOOSTER

main44685-BZ030iNGC10#202208

4701

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ110iNGC10#202208

8401

12 parts on this diagram · 4 diagrams in section
