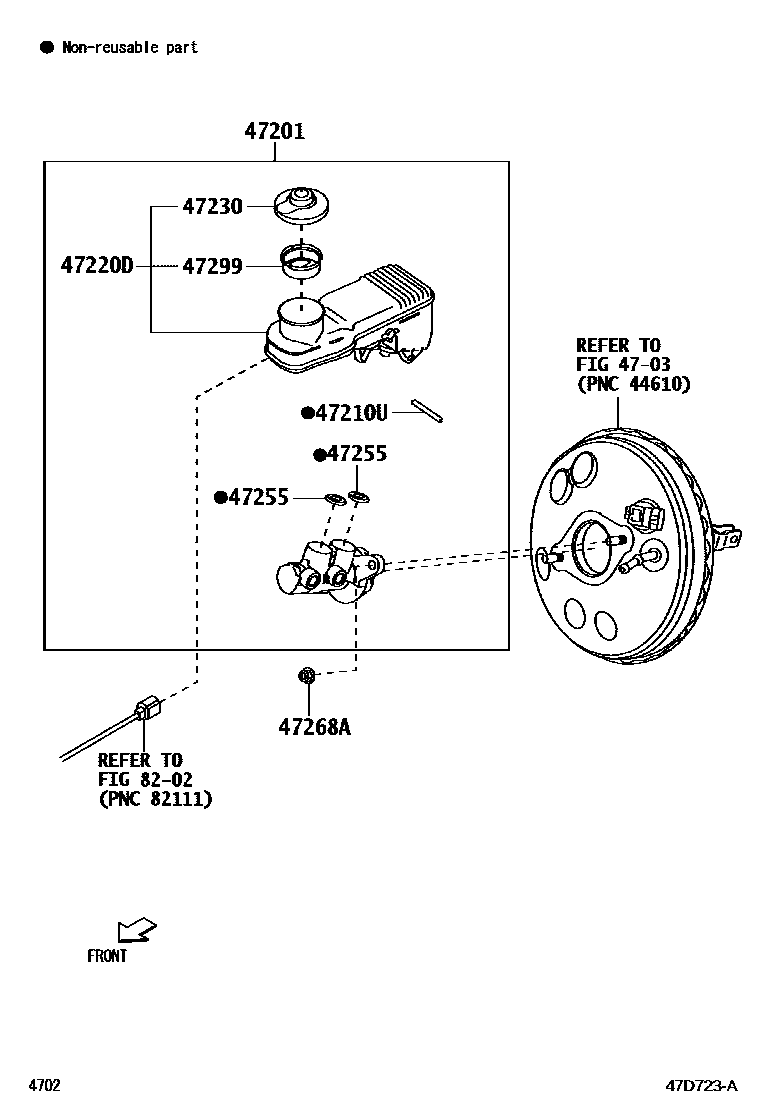

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZ860iNGC10#..RHD..CVT202208

main47201-BZ870iNGC102..5F..H202208

main47201-BZ880iNGC101,102..LHD..CVT202208

main47201-BZA00iNGC101,102..LHD..5F202208

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main9004A-24026iNGC10#202208

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-BZ540iNGC10#..RHD..CVT202208

main47220-BZ550iNGC102..5F..H202208

main47220-BZ560iNGC101,102..LHD..CVT202208

main47220-BZ570iNGC101,102..LHD..5F202208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ130iNGC10#202208

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ100iNGC10#202208

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124iNGC10#202208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ090iNGC10#202208

8202

9 parts on this diagram · 1 diagram in section
