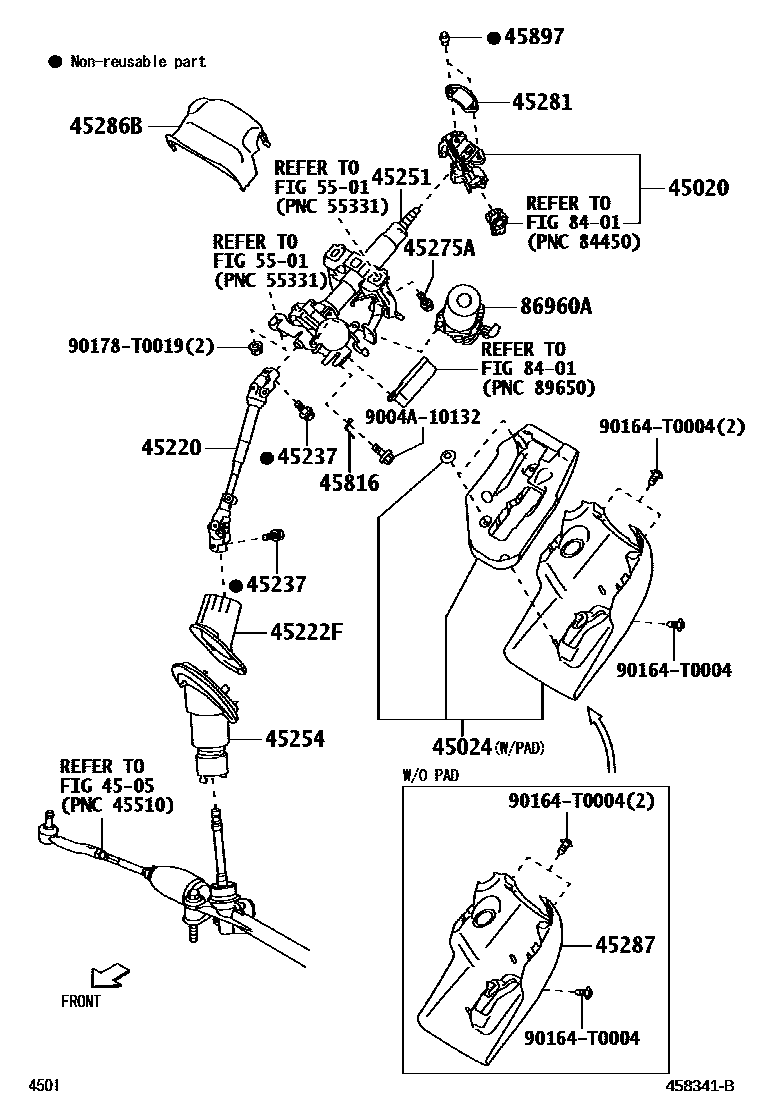

STEERING COLUMN & SHAFT

0001 1RHD KEY 0002 1RHD PUSH 0003 1RHD PUSH 0004 1LHD KEY 0005 1LHD PUSH

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-BZ400iNGC101,102..M..GCC;NGC101,102..CVT..L;NGC102..RHD..M..GEN202208

SINGAPORE

main45020-BZ410iNGC101,102..5F..(H,L)202208

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-BZ130-C0iNGC100202208

BLACK,TRIM2#

main45024-BZ130-C0iNGC100202208

LAOS,BLACK,TRIM2#,4#

main45024-BZ130-C0iNGC100202208

LAOS&LATIN NCAP PACKAGE,BLACK,TRIM2#,4#

main45024-BZ130-C0iNGC100202208

INDONESIA,BLACK,TRIM2#

main45024-BZ130-C0iNGC100202208

SINGAPORE,BLACK,TRIM2#

main45024-BZ130-C0iNGC100202208

LATIN NCAP PACKAGE,BLACK,TRIM2#,4#

main45024-BZ130-C0iNGC100202208

LATIN NCAP PACKAGE,BLACK,TRIM2#

main45024-BZ130-C0iNGC101..LHD..H..GEN202208

BLACK,TRIM2#,3#

main45024-BZ130-C0iNGC101..LHD..H..GEN202208

BLACK,TRIM2#,4#

main45024-BZ140-C0iNGC102..5F..H202208

BRUNEI&LATIN NCAP PACKAGE,BLACK,TRIM2#

main45024-BZ140-C0iNGC102..5F..H202208

BLACK,TRIM2#

main45024-BZ140-C0iNGC102..5F..H202208

LATIN NCAP PACKAGE,BLACK,TRIM2#

main45024-BZ140-C0iNGC101..CVT..L;NGC102..RHD..M..GEN202208

BRUNEI,BLACK,TRIM2#

main45024-BZ200-C0iNGC102..MA202303

BLACK,TRIM2#

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ520iNGC10#..RHD..THP202208

main45220-BZ530iNGC101,102,NYC100..LHD202208

main45220-BZ600iNGC102..MA202303

45222FCOVER, DUST

main45222-BZ240iNGC10#..RHD202208

main45222-BZ250iNGC101,102,NYC100..LHD202208

45237BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)

main90119-T0168iNGC10#202208

45251TUBE SET, STEERING COLUMN

main45251-B9350iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

main45251-B9360iNGC102..RHD..M..GEN202208

SINGAPORE

main45251-B9370iNGC100,101..PHL,TH;NGC101,102..THP..CVT..H202208

main45251-B9380iNGC102..M..MA202303

main45251-B9390iNGC102..H..MA202303

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ330iNGC10#..RHD202208

main45254-BZ340iNGC101,102,NYC100..LHD202208

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main9004A-11391iNGC10#202208

45281HOUSING, STEERING COLUMN

main45281-BZ160iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

SINGAPORE

45286BCOVER, STEERING COLUMN, UPR

main45286-BZ310-C0iNGC102..MA202303

BLACK,TRIM2#

main45286-BZ370-C0iNGC101,102..M..GCC;NGC101,102..RHD..M..GEN202208

BLACK,TRIM2#

main45286-BZ370-C0iNGC101..L;NGC102..5F..H;NGC101..LHD..M..GEN;NGC102..LHD..(L,M)..GEN202208

BLACK,TRIM2#,4#

main45286-BZ380-C0iNGC100202208

BLACK,TRIM2#

main45286-BZ380-C0iNGC100202208

BLACK,TRIM2#,3#

main45286-BZ380-C0iNGC100202208

BLACK,TRIM2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-BZ490-C0iNGC102,NYC100..LHD..H..GEN202208

MEXICO&W/O LATIN NCAP PACKAGE,BLACK,TRIM2#

main45287-BZ490-C0iNGC101,102..LHD..M..GEN202208

BLACK,TRIM2#,4#

main45287-BZ490-C0iNGC101,102..LHD..M..GEN202208

FIJI,BLACK,TRIM2#

main45287-BZ490-C0iNGC101..RHD..M;NGC101,102..H..GCC;NGC102..RHD..CVT..H..GEN202208

BLACK,TRIM2#

main45287-BZ500-C0iNGC101,102..L202208

BLACK,TRIM2#

main45287-BZ500-C0iNGC101,102..L202208

BLACK,TRIM2#,4#

45816BRACKET, WIRE HARNESS

main82715-BZE80iNGC10#202208

45897BOLT, STEERING LOCK SET

main45897-B2010iNGC101..L;NGC102..CVT..L;NGC102..5F..(H,L);NGC101,102..M..GCC;NGC102..RHD..M..GEN202208

SINGAPORE

5501

8401

86960AMOTOR SET, POWER STEERING

main80960-B9220iNGC10#202208

9004A10132

main9004A-10132

90164T0004

main90164-T0004

90178T0019

main90178-T0019

20 parts on this diagram · 5 diagrams in section
