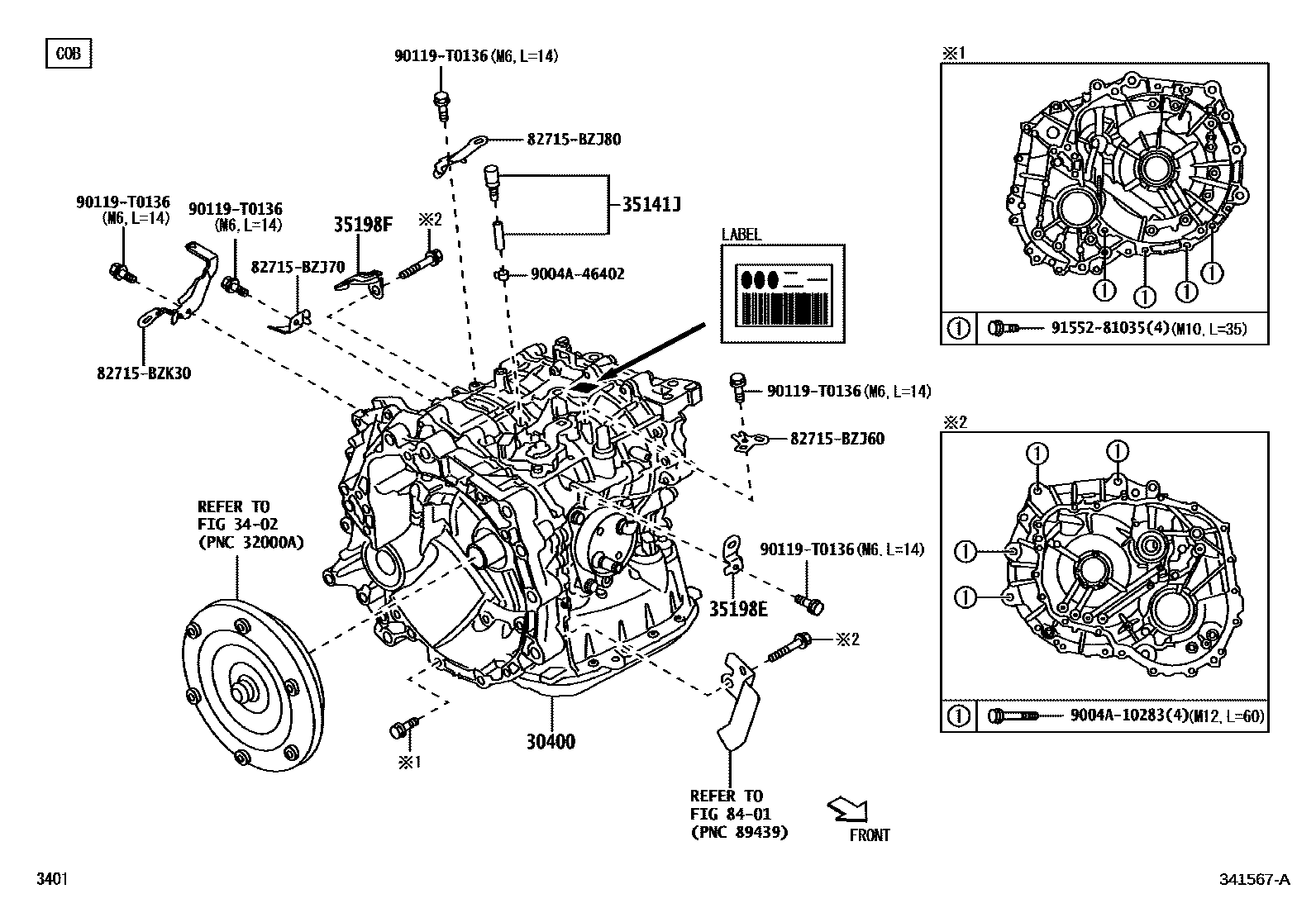

TRANSAXLE ASSY(CVT)

0001 1TRANSAXLE ASSY 0002 1INNER PARTS 0003 1VALVE BODY ASSY

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2B30iNGC100,101..CVT202208

UNIT.NO=A25K

main30400-B2B40iNGC102..THP..CVT202208

UNIT.NO=A27K

main30400-BZ040iNGC102..MA202303

LOCAL SOURCED PARTS

3402

35141JPLUG, BREATHER, NO.2(CVT)

main35120-BZ020iNGC10#..THP..CVT202208

IDN SOURCED PARTS

main35120-BZ050iNGC102..MA202303

MA SOURCED PARTS

35198EBRACKET, WIRE HARNESS CLAMP, NO.1

main82715-BZJ90iNGC10#..CVT202208

35198FBRACKET, WIRE HARNESS CLAMP

main82715-B2510iNGC10#..CVT202208

8401

82715BZJ60BRACKET,WIRING HARNESS CLAMP

main82715-BZJ60

82715BZJ70BRACKET,WIRING HARNESS CLAMP

main82715-BZJ70

82715BZJ80BRACKET,WIRING HARNESS CLAMP

main82715-BZJ80

82715BZK30BRACKET,WIRING HARNESS CLAMP

main82715-BZK30

9004A10283

main9004A-10283

9004A46402

main9004A-46402

90119T0136

main90119-T0136

9155281035

main91552-81035

14 parts on this diagram · 3 diagrams in section
