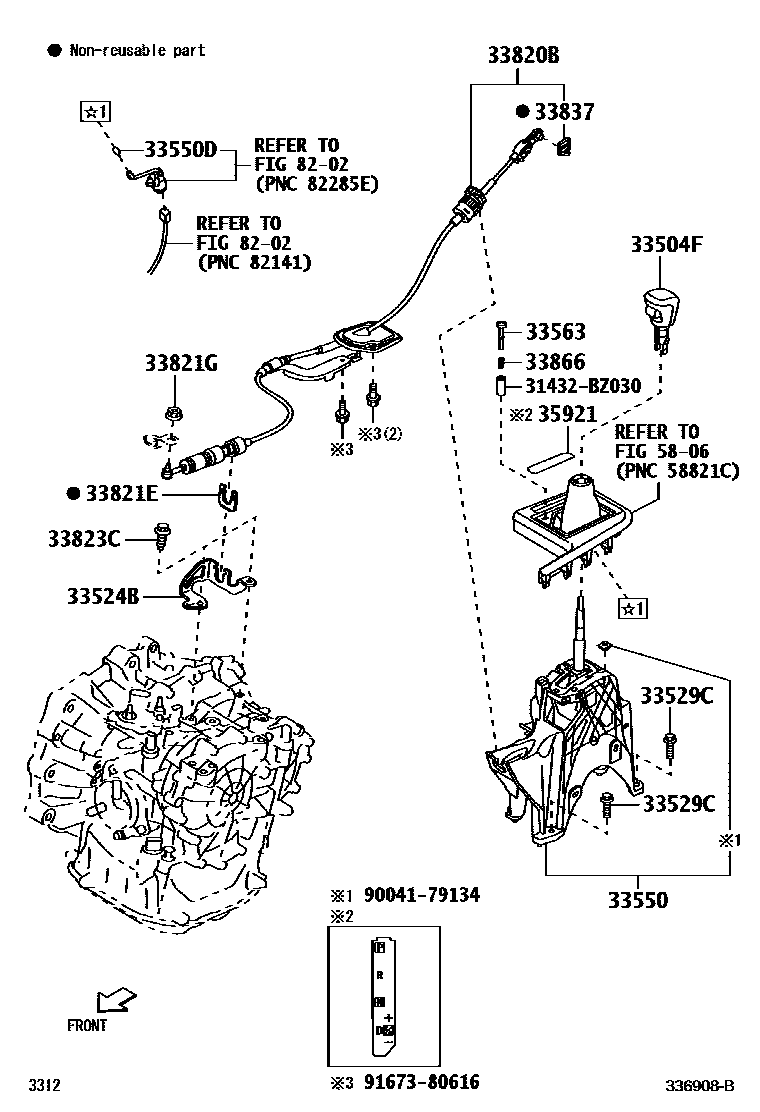

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D370-C1iNGC101..5F..M..GEN202208

BLACK,TRIM2#,4#

main33504-0D370-C1iNGC101..5F..M..GEN202208

MEXICO,BLACK,TRIM2#

main33504-0D370-C1iNGC101,102..5F..(H,L)202208

BLACK,TRIM2#

main33504-0D700-C1iNGC102..5F..M;NGC101..5F..PHL202208

BLACK,TRIM2#

main33504-BZ281-C1iNGC101,102..M..GCC;NGC101,102..RHD..M202208-202301

MEXICO,BLACK,TRIM2#

sub33504-BZ282

main33504-BZ281-C1iNGC101,102..CVT..L;NGC101..LHD..CVT..M..GEN202208-202301

BLACK,TRIM2#,3#

sub33504-BZ282

main33504-BZ281-C1iNGC101,102..CVT..L;NGC101..LHD..CVT..M..GEN202208-202301

BLACK,TRIM2#,4#

sub33504-BZ282

main33504-BZ281-C1iNGC101,102..CVT..L;NGC101..LHD..CVT..M..GEN202208-202301

BLACK,TRIM2#

sub33504-BZ282

main33504-BZ282-C1iNGC101,102..M..GCC;NGC101,102..RHD..M..GEN202302

BLACK,TRIM2#

main33504-BZ282-C1iNGC101,102..M..GCC;NGC101,102..RHD..M..GEN202302

MEXICO,BLACK,TRIM2#

main33504-BZ282-C1iNGC101,102..CVT..L;NGC100,102..M..(MA,TH);NGC101..LHD..CVT..M..GEN202302

BLACK,TRIM2#,4#

main33504-BZ291-C4iNGC101..RHD..H;NGC101..CVT..PHL;NGC102..LHD..CVT..(H,M)..(GEN,PHL)202208-202303

GRADE PACKAGE-HI(SRI LANKA),PIANO BLACK,TRIM2#,3#

sub33504-BZ292

sub33504-BZ293

main33504-BZ291-C4iNGC100202208-202303

PIANO BLACK,TRIM2#,4#

sub33504-BZ292

sub33504-BZ293

main33504-BZ291-C4iNGC100202208-202303

PIANO BLACK,TRIM2#

sub33504-BZ292

sub33504-BZ293

main33504-BZ291-C4iNGC100202208-202303

GRADE PACKAGE-HI(TH),PIANO BLACK,TRIM2#,3#

sub33504-BZ292

sub33504-BZ293

main33504-BZ293-C4iNGC101..RHD..H;NGC101..CVT..PHL;NGC102..H..(MA,PHL);NGC102..LHD..CVT..(H,M)..GEN202303-202304

PIANO BLACK,TRIM2#,4#

sub33504-BZ294

main33504-BZ293-C4iNGC101..LHD..H;NGC102..H..GCC;NGC102..RHD..CVT..H..GEN202303-202304

PIANO BLACK,TRIM2#

sub33504-BZ294

main33504-BZ293-C4iNGC101..LHD..H;NGC102..H..GCC;NGC102..RHD..CVT..H..GEN202303-202304

GRADE PACKAGE-HI(TH),PIANO BLACK,TRIM2#,3#

sub33504-BZ294

main33504-BZ293-C4iNGC101..LHD..H;NGC102..H..GCC;NGC102..RHD..CVT..H..GEN202303-202304

GRADE PACKAGE-HI(SRI LANKA),PIANO BLACK,TRIM2#,3#

sub33504-BZ294

main33504-BZ294-C4iNGC100202304

PIANO BLACK,TRIM2#,4#

main33504-BZ294-C4iNGC101..LHD..H;NGC102..H..GCC;NGC102..RHD..CVT..H..GEN202304

PIANO BLACK,TRIM2#

main33504-BZ294-C4iNGC101..LHD..H;NGC102..H..GCC;NGC102..RHD..CVT..H..GEN202304

GRADE PACKAGE-HI(TH),PIANO BLACK,TRIM2#,3#

main33504-BZ294-C4iNGC101..LHD..H;NGC102..H..GCC;NGC102..RHD..CVT..H..GEN202304

GRADE PACKAGE-HI(SRI LANKA),PIANO BLACK,TRIM2#,3#

33524BBRACKET, CONTROL CABLE

main33524-BZ070iNGC10#..CVT202208

33529CBOLT, SHIFT LEVER

main90041-20099iNGC10#202208

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ631-C0iNGC102..MA202303

BLACK,TRIM2#

main33550-BZ680iNGC10#..THP..CVT202208

main33550-BZ700iNGC101,102..5F202208

33550DBULB, POSITION INDICATOR LAMP

main35955-BZ070iNGC10#,NYC100..THP..CVT202208

main35955-BZ090iNGC102..MA202303

33563BUTTON, SHIFT LOCK RELEASE

main33563-BZ080-C0iNGC102..MA,PHL;NGC101..RHD..(H,L);NGC102..LHD..CVT..GEN;NGC101..LHD..CVT..M..(GEN,PHL)202208

BLACK,TRIM2#,3#

main33563-BZ080-C0iNGC102..MA,PHL;NGC101..RHD..(H,L);NGC102..LHD..CVT..GEN;NGC101..LHD..CVT..M..(GEN,PHL)202208

BLACK,TRIM2#,4#

main33563-BZ080-C0iNGC102..MA,PHL;NGC101..RHD..(H,L);NGC102..LHD..CVT..GEN;NGC101..LHD..CVT..M..(GEN,PHL)202208

BLACK,TRIM2#

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ460iNGC102..MA202303

main33820-BZ470iNGC10#..THP..CVT202208

main33820-BZ480iNGC101,102..5F202208

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010iNGC101,102..5F202208

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274iNGC10#..CVT202208

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ100iNGC101,102..5F202208

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90105-T0120iNGC10#,NYC100..THP202208

main91551-80820iNGC102..MA202303

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010iNGC10#..CVT202208

main90044-68076iNGC101,102..5F202208

33866SPRING, SHIFT LOCK RELEASE

main33866-BZ050iNGC10#..CVT202208

35921PLATE, CONTROL POSITION INDICATOR

main35921-BZ150iNGC10#..CVT202208

5806

8202

31432BZ030WASHER, CLUTCH RESERVOIR SET BOLT

main31432-BZ030

9004179134

main90041-79134

9167380616

main91673-80616

19 parts on this diagram · 2 diagrams in section
