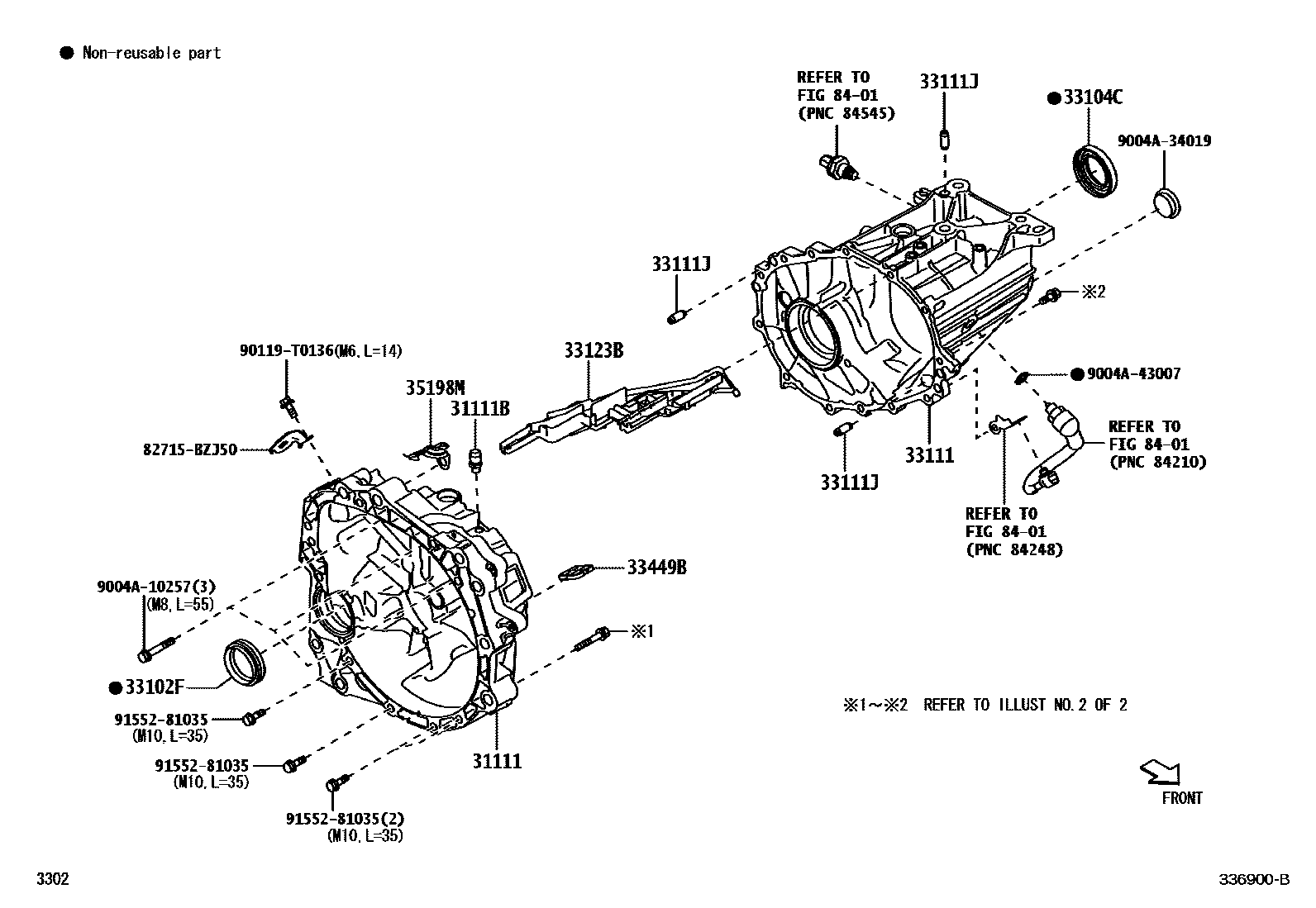

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31111HOUSING, CLUTCH
31111BPLUG(FOR CLUTCH HOUSING)
sub90049-15026
33102FSEAL, TYPE T OIL(FOR MANUAL TRANSMISSION CASE RH)
33104CSEAL, TYPE T OIL(FOR MANUAL TRANSMISSION CASE LH)
33111CASE, MANUAL TRANSMISSION
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=25,OD=10
33123BRECEIVER, CASE COVER OIL, NO.1(MTM)
33449BMAGNET, TRANSMISSION
35198MBRACKET, WIRE HARNESS CLAMP
8401
82715BZJ50BRACKET,WIRING HARNESS CLAMP
main82715-BZJ50
9004A10257
main9004A-10257
9004A34019
main9004A-34019
9004A43007
main9004A-43007
90119T0136
main90119-T0136
9155281035
main91552-81035
16 parts on this diagram · 2 diagrams in section
