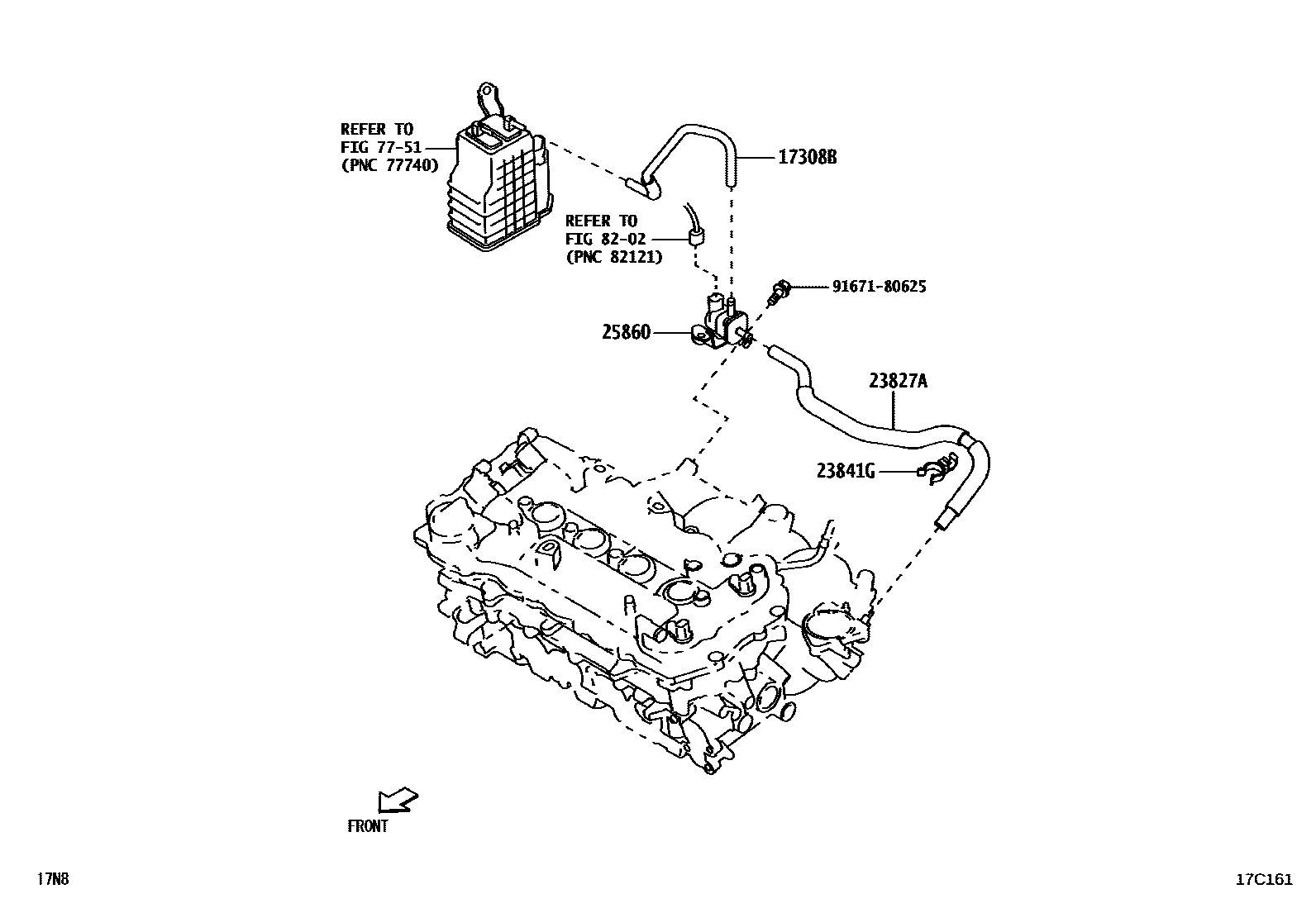

VACUUM PIPING

0001 1L/EJECTOR 0002 1W/EJECTOR 0003 1

17308BHOSE SUB-ASSY, VACUUM

main77754-BZ430i1NRVE,2NRVE..NGC101,102..RHD..GEN202208

main77754-BZ450i2NRVE..NGC102..MA202303

main77754-BZ460i1NRVE,2NRVE..NGC101,102..LHD202208

main77754-BZ480i3NRVE..NGC100202208

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-BZ130i1NRVE,2NRVE..NGC101,102202208

23841GCLAMP, FUEL HOSE

main9004A-46363i1NRVE,2NRVE..NGC101,102202208

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y190i3NRVE..NGC100202208

main25860-BZ050i1NRVE,2NRVE..NGC101,102202208

7751

8202

9167180625

main91671-80625

7 parts on this diagram · 3 diagrams in section
