MANIFOLD

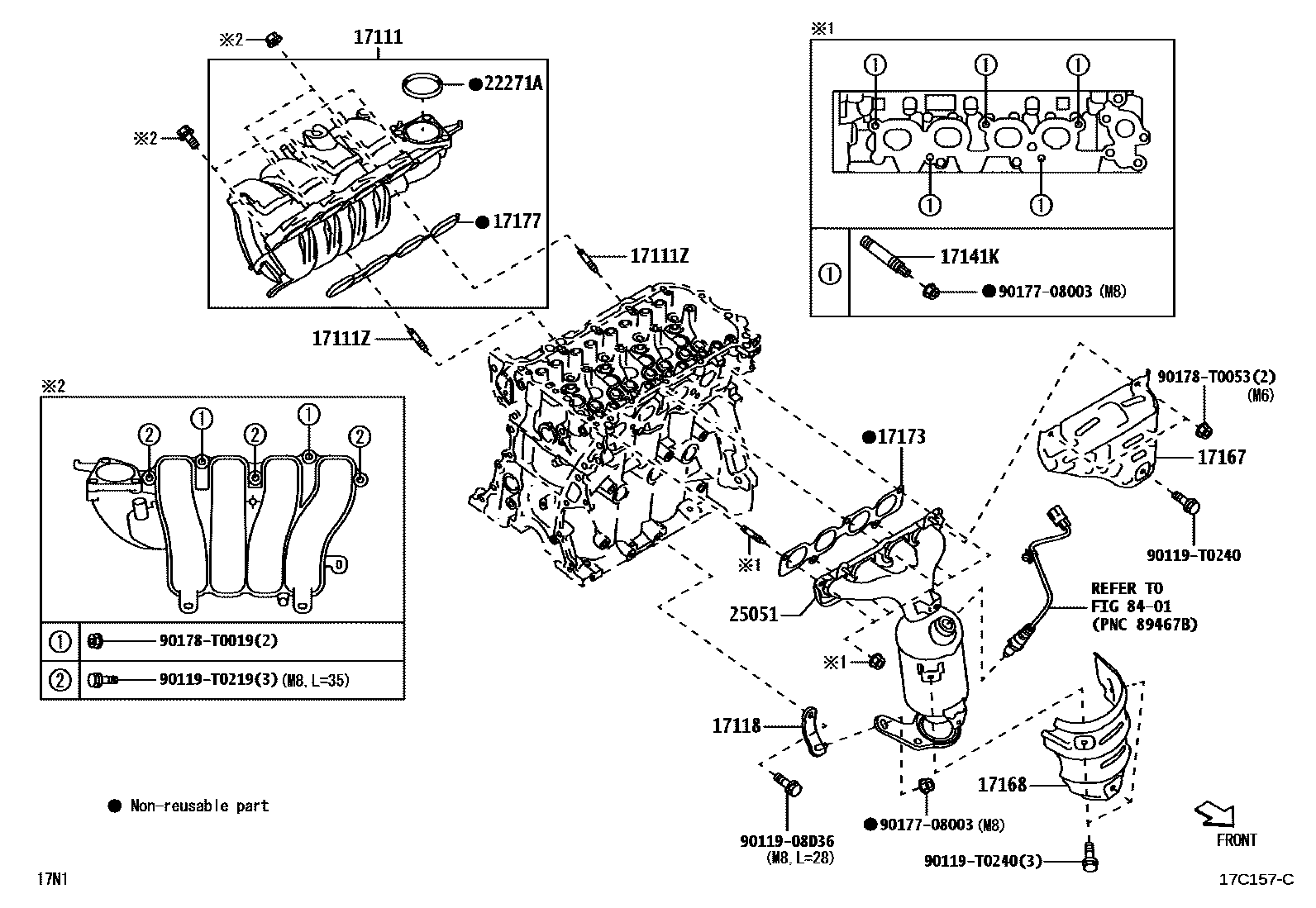

Parts diagram

17111MANIFOLD, INTAKE

main17120-0Y040i202208

main17120-0Y071i202208

main17120-BZ130i202303

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main9004A-12004i202303

main90126-T0019i202208

17118STAY, MANIFOLD

main17118-0Y031i202303

main17118-0Y061i202208

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08063i202208

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0Y020i202303

main17167-0Y050i202208

main17167-0Y060i202208

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0Y020i202303

main17168-0Y050i202208

main17168-0Y100i202208

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Y030i202303

main17173-0Y060i202208

main17173-47021i202208

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Y030i202208

22271AGASKET, THROTTLE BODY

main22271-0Y030i202208

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-BZ140i202208

main25051-BZ150i202208

MEXICO

main25051-BZ150i202208

FIJI

main25051-BZ150i202208

CHILE

main25051-BZ150i202208

COSTA RICA

main25051-BZ150i202208

SINGAPORE

main25051-BZ200i202208

8401

9011908D36

main90119-08D36

90119T0219

main90119-T0219

90119T0240

main90119-T0240

9017708003

main90177-08003

90178T0019

main90178-T0019

90178T0053

main90178-T0053

17 parts on this diagram · 3 diagrams in section
