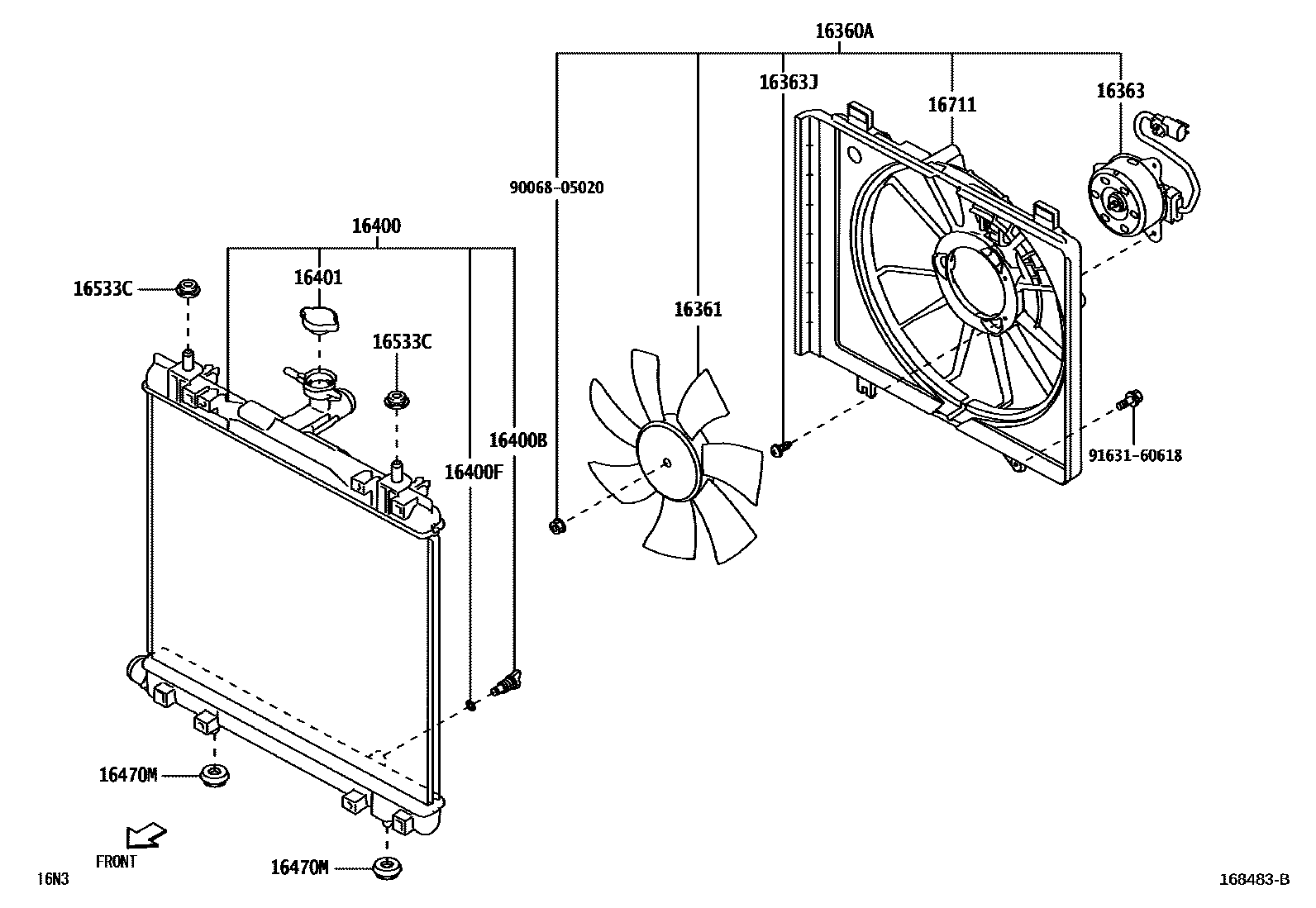

RADIATOR & WATER OUTLET

0001 1(80W) RADIATOR 0002 1(160W) RADIATOR 0003 1(80W) RADIATOR 0004 1(L/HEATER) HOSE, RESERVE TANK0005 1(L/HEATER) HOSE,RESERVETANK 0006 1(L/HEATER) HOSE, RESERVE TANK0007 1(W/HEATER) HOSE, RESERVE TANK0008 1(W/HEATER) HOSE, RESERVE TANK0009 1HOSE, RESERVE TANK

16360AFAN ASSY, W/MOTOR

main16360-BZ390i2NRVE..NGC102..MA202303

main16360-BZ460i1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..PHL;1NRVE,2NRVE..NGC101,102..RHD..GEN;1NRVE,2NRVE..NGC101,102..LHD..5F..GEN202208

PERU

main16360-BZ500i1NRVE..NGC101..RHD..M;2NRVE..NGC102..RHD..CVT..GEN202208-202403

BRUNEI

main16360-BZ501i1NRVE..NGC101..RHD..M;2NRVE..NGC102..RHD..CVT..GEN202404

BRUNEI

16361FAN

main16361-BZ180i2NRVEX..NYC100..GEN,PHL;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..PHL;1NRVE,2NRVE..NGC101,102..RHD..GEN;1NRVE,2NRVE..NGC101,102..LHD..5F..GEN202208

PERU

main16361-BZ190i1NRVE..NGC101..RHD..M;2NR#..NGC102,NYC100..RHD..CVT..(H,M)..GEN202208

BRUNEI

main16361-BZ200i2NRVE..NGC102..MA202303

16363MOTOR, COOLING FAN

main16363-BZ190i1NRVE..NGC101..RHD..M;2NRVE..NGC102..RHD..CVT..GEN202208-202404

BRUNEI

main16363-BZ191i1NRVE..NGC101..RHD..M;2NRVE..NGC102..RHD..CVT..GEN202404

BRUNEI

main16363-BZ210i1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..RHD;1NRVE,2NRVE..NGC101,102..PHL;1NRVE,2NRVE..NGC101,102..LHD..5F..GEN202208

PERU

16363JBOLT(FOR COOLING FAN MOTOR)

main90068-04056×3i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main90099-04119×3i2NRVE..NGC102..MA202303

16400RADIATOR ASSY

main16400-BZB70i1NRVE..NGC101..5F..GEN;2NRVEX..NYC100..GEN,PHL;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..PHL;1NRVE,2NRVE..NGC101,102..RHD..GEN202208

ECUADOR

main16400-BZB80i2NRVE..NGC102..MA202303

main16400-BZC20i1NRVE..NGC101..RHD..M;2NR#..NGC102,NYC100..RHD..CVT..(H,M)..GEN202208

BRUNEI

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1NRVE,2NRVE,3NRVE..NGC10#202208

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main16492-21050i2NRVE..NGC102..MA202303

16401CAP SUB-ASSY, RADIATOR

main16401-BZ190i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main16401-BZ200i2NRVE..NGC102..MA202303

16470TANK ASSY, RADIATOR RESERVE

main16470-BZ350i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main16470-BZ430i2NRVE..NGC102..MA202303

16470MGROMMET

main90044-80592×2i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main9004A-48033×2i2NRVE..NGC102..MA202303

16533CGROMMET(FOR RADIATOR SUPPORT)

main9004A-48017×2i1NRVE,2NRVE,3NRVE..NGC10#202208

16711SHROUD, FAN

main16711-BZ230i1NRVE,2NRVE,3NRVE..NGC10#..THP202208

main16711-BZ240i2NRVE..NGC102..MA202303

9006805020

main90068-05020

9163160618

main91631-60618

14 parts on this diagram · 9 diagrams in section
