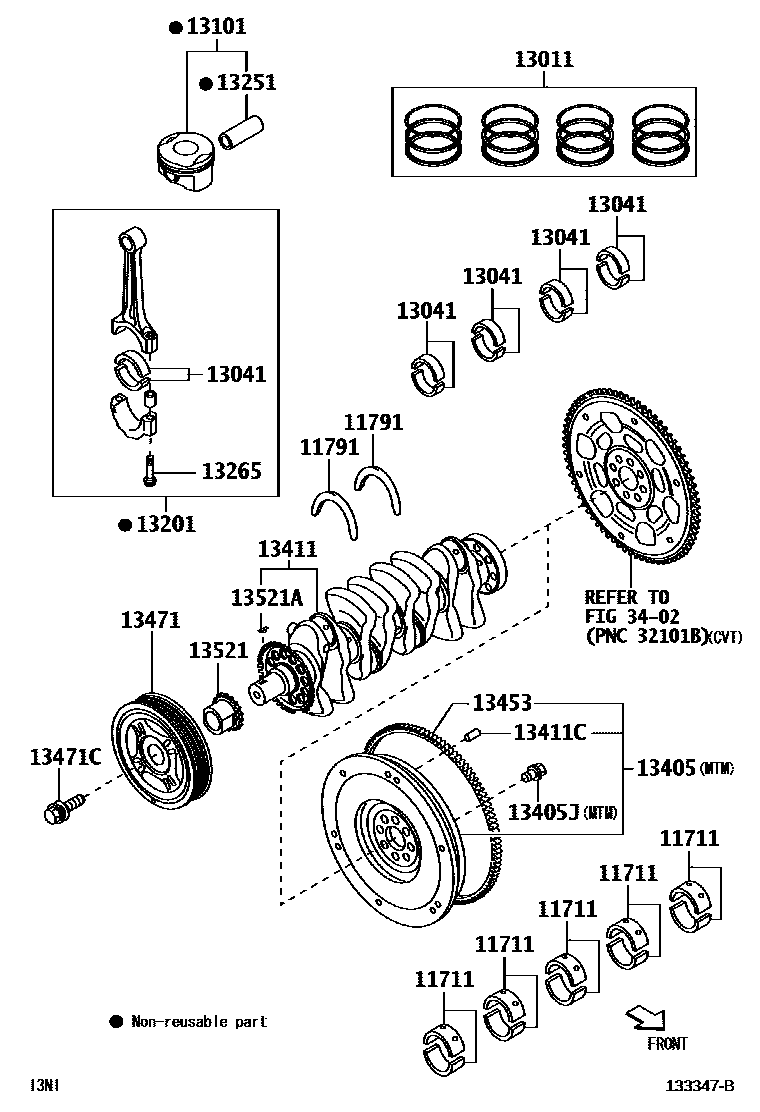

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-0Y030-02×5i1NRVE,2NRVE..NGC101,102202208

MARK2

main11701-0Y030-03×5i1NRVE,2NRVE..NGC101,102202208

MARK3

main11701-0Y030-04×5i1NRVE,2NRVE..NGC101,102202208

MARK4

main11701-0Y030-05×5i1NRVE,2NRVE..NGC101,102202208

MARK5

main11701-0Y040-02×5i3NRVE..NGC100202208

MARK2

main11701-0Y040-03×5i3NRVE..NGC100202208

MARK3

main11701-0Y040-04×5i3NRVE..NGC100202208

MARK4

main11701-0Y040-05×5i3NRVE..NGC100202208

MARK5

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-47031×2i2NRVEX,3NRVE..NGC100,NYC100..THP202208

STD

main11791-B0010×2i1NRVE,2NRVE..NGC101,102202208

STD

13011RING SET, PISTON

main13011-0Y030i1NRVE,2NRVE..NGC101,102202208

STD

main13011-0Y130i3NRVE..NGC100202208

STD

13041BEARING, CONNECTING ROD

main13041-0Y040-01×4i1NRVE,2NRVE,3NRVE..NGC10#202208

MARK1

main13041-0Y040-02×4i1NRVE,2NRVE,3NRVE..NGC10#202208

MARK2

main13041-0Y040-03×4i1NRVE,2NRVE,3NRVE..NGC10#202208

MARK3

13101PISTON SUB-ASSY, W/PIN

main13101-0Y070×4i3NRVE..NGC100202208

STD

main13101-0Y120×4i2NRVE..NGC102202208

STD

main13101-0Y130×4i1NRVE..NGC101202208

STD

13201ROD SUB-ASSY, CONNECTING

main13201-09C60×4i2NR#..NGC102,NYC100..THP202208

main13201-09C70×4i1NRVE,3NRVE..NGC100,101202208

main13201-B9095×4i2NRVE..NGC102..MA202303

13251PIN, PISTON

main13251-0Y060i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

13265BOLT, CONNECTING ROD

main13265-0Y010×2i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main13265-0Y020×8i2NRVE..NGC102..MA202303

13405FLYWHEEL SUB-ASSY

main13405-BZ150i1NRVE,2NRVE..NGC101,102..5F202208

13405JBOLT(FOR FLYWHEEL)

main90913-01029×8i1NRVE,2NRVE..NGC101,102..5F202208

13411CRANKSHAFT

main13401-0Y150i2NR#..NGC102,NYC100..THP202208

main13401-0Y160i3NRVE..NGC100202208

main13401-0Y170i1NRVE..NGC101202208

main13401-BZ100i2NRVE..NGC102..MA202303

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main9004A-25035×3i1NRVE,2NRVE..NGC101,102..5F202208

13453GEAR, FLYWHEEL RING

main13453-87Z03i1NRVE,2NRVE..NGC101,102..5F202208

13471PULLEY, CRANKSHAFT

main13470-0Y020i2NRVE..NGC102..MA202303

main13470-0Y030i1NRVE,2NRVE..NGC101,102..THP202208

main13470-0Y040i3NRVE..NGC100202208

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-T0444i1NRVE,2NRVE,3NRVE..NGC10#202208

sub90119-T0529

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0Y070i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main13521-BZ040i2NRVE..NGC102..MA202303

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04001i1NRVE,2NRVE,3NRVE..NGC10#202208

3402

18 parts on this diagram · 1 diagram in section
