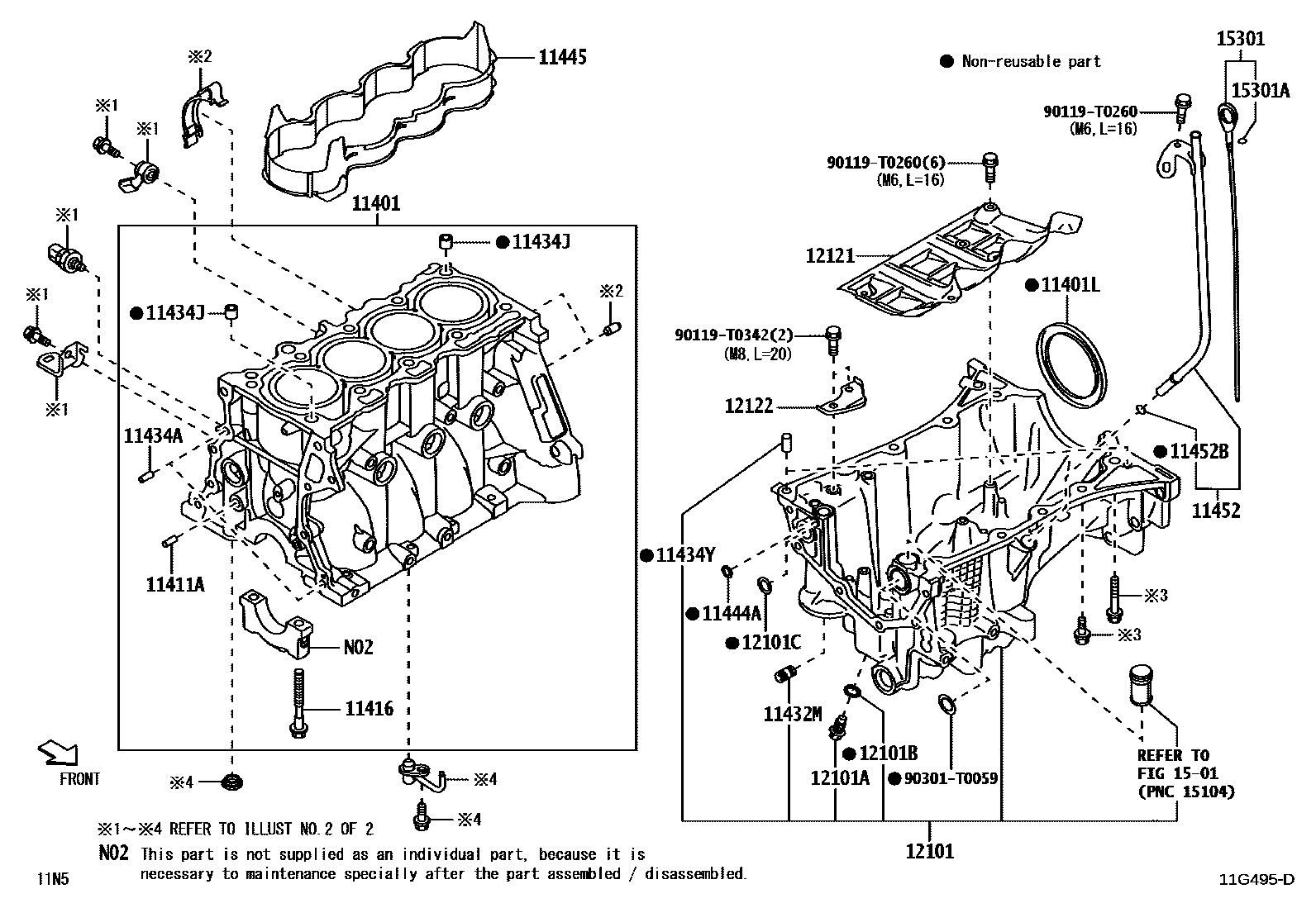

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
11411APIN, RING(FOR CYLINDER BLOCK NO.1 )
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
LOCAL SOURCED PARTS
11432MUNION(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11444ARING, O
11445SPACER, CYLINDER BLOCK WATER JACKET
INTAKE SIDE
EXHAUST SIDE
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
12121PLATE, OIL PAN BAFFLE, NO.1
12122PLATE, OIL PAN BAFFLE, NO.2
TYPE B
TYPE A
TYPE A
TYPE B
1501
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
90119T0260
main90119-T0260
90119T0342
main90119-T0342
90301T0059
main90301-T0059
24 parts on this diagram · 5 diagrams in section
