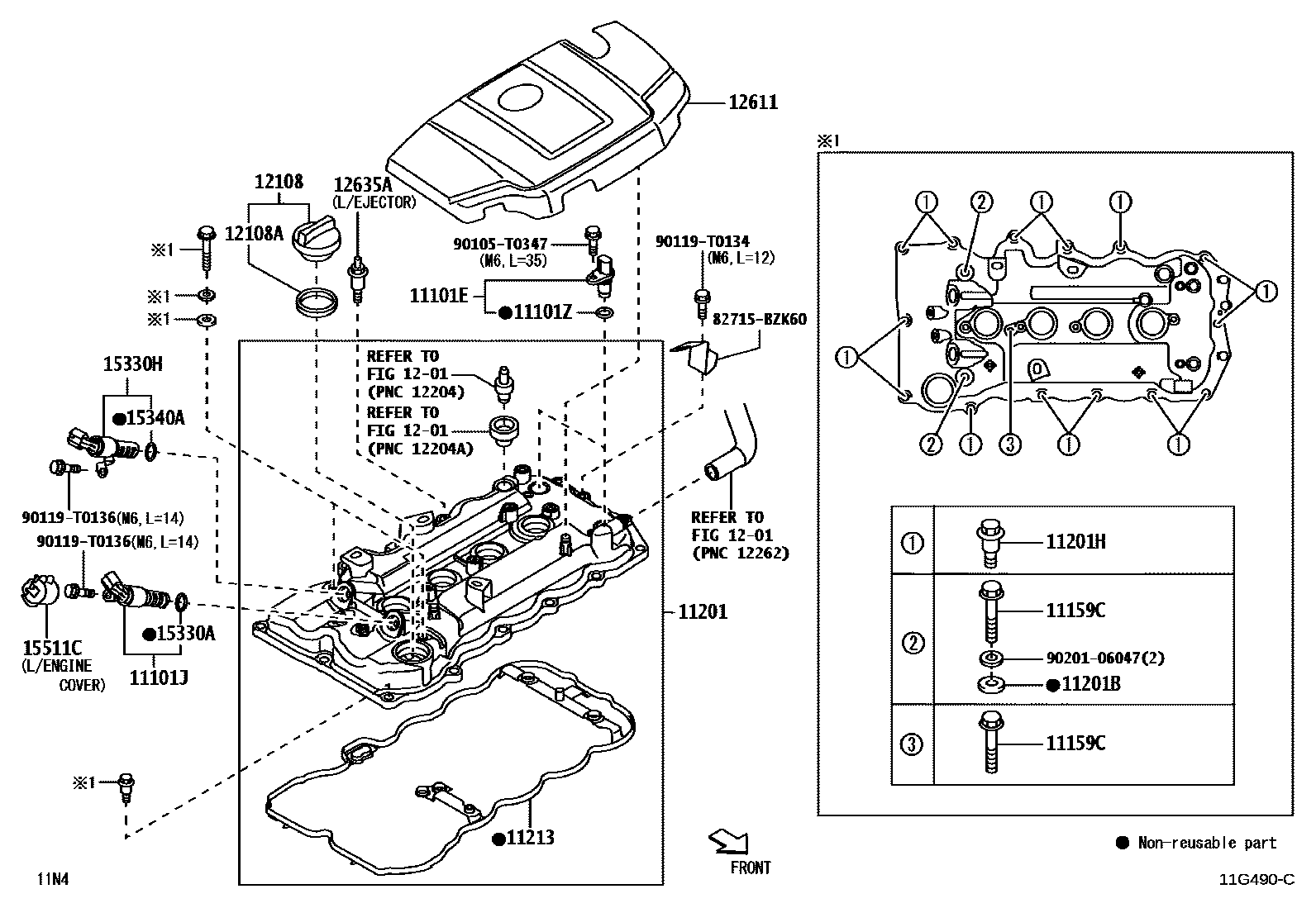

CYLINDER HEAD

0001 1CYLINDER HEAD COVER 0002 1CYLINDER HEAD COVER 0003 1CYLINDER HEAD 0004 1CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-09610i1NRVE..NGC101..GCC,GEN;2NRVE..NGC102..LHD..(GCC,GEN)202208

NEPAL

main11101-09610i2NRVE..NGC102..RHD..CVT..H..GEN202208

BANGLADESH

main11101-09830i3NRVE..NGC100202208

main11101-B9641i2NRVE..NGC102..MA202303

main11101-B9645i2NRVE..NGC102..RHD..GEN;1NRVE,2NRVE..NGC101,102..PHL202208

11101ESENSOR, CAM POSITION

main90919-T5002i1NRVE,2NRVE,3NRVE..NGC10#202208

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y060i1NRVE,2NRVE,3NRVE..NGC10#202208

11101ZO RING, CAM POSITION SENSOR

main9004A-30059i2NRVE..NGC102..MA202208

11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-T0347i1NRVE,2NRVE,3NRVE..NGC10#202208

M6,L=35

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0Y040i3NRVE..NGC100202208

main11201-BZ160i1NRVE,2NRVE..NGC101,102202208

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-T0001i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

main90210-T0002i2NRVE..NGC102..MA202303

11201HBOLT(FOR CYLINDER HEAD COVER)

main90109-T0055i1NRVE,2NRVE..NGC101,102202208

M6,L=23.5

11213GASKET, CYLINDER HEAD COVER

main11213-0Y010i3NRVE..NGC100202208

main11213-BZ110i1NRVE,2NRVE..NGC101,102202208

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1NRVE,2NRVE,3NRVE..NGC10#202208

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i1NRVE,2NRVE,3NRVE..NGC10#202208

12611COVER, ENGINE, NO.1

main12611-BZ010i3NRVE..NGC100202208

main12611-BZ020i1NRVE..NGC101..CVT..L202208

BRUNEI

main12611-BZ020i2NRVE..NGC102..RHD..GEN;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..GCC,MA,PHL202208

LAOS

main12611-BZ020i2NRVE..NGC102..RHD..GEN;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..GCC,MA,PHL202208

NEPAL

main12611-BZ020i2NRVE..NGC102..RHD..GEN;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..GCC,MA,PHL202208

BANGLADESH

main12611-BZ020i2NRVE..NGC102..RHD..GEN;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..GCC,MA,PHL202208

NICARAGUA

12635AJOINT, ENGINE COVER

main12635-BZ010i2NRVE..NGC102..RHD;2NRVE..NGC102..PHL;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..M..(GCC,PHL)202208

LAOS

main12635-BZ010i2NRVE..NGC102..RHD;2NRVE..NGC102..PHL;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..M..(GCC,PHL)202208

NEPAL

main12635-BZ010i2NRVE..NGC102..RHD;2NRVE..NGC102..PHL;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..M..(GCC,PHL)202208

BRUNEI

main12635-BZ010i2NRVE..NGC102..RHD;2NRVE..NGC102..PHL;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..M..(GCC,PHL)202208

BANGLADESH

main12635-BZ010i2NRVE..NGC102..RHD;2NRVE..NGC102..PHL;1NRVE..NGC101..LHD..H..GEN;1NRVE,2NRVE..NGC101,102..M..(GCC,PHL)202208

NICARAGUA

main12635-BZ010i1NRVE,2NRVE..NGC101,102..H..GCC202310

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i1NRVE,2NRVE,3NRVE..NGC10#202208

15330HVALVE ASSY, CAM TIMING OIL CONTROL

main15330-0Y050i1NRVE,2NRVE..NGC101,102202208

15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i1NRVE,2NRVE..NGC101,102202208

15511CCOVER, OIL CONTROL VALVE

main15511-BZ010i1NRVE..NGC101..RHD;2NRVE..NGC102..LHD..GEN;1NRVE..NGC101..LHD..(L,M)..GEN202208

LAOS

main15511-BZ010i1NRVE..NGC101..RHD;2NRVE..NGC102..LHD..GEN;1NRVE..NGC101..LHD..(L,M)..GEN202208

NEPAL

main15511-BZ010i1NRVE..NGC101..RHD;2NRVE..NGC102..LHD..GEN;1NRVE..NGC101..LHD..(L,M)..GEN202208

BRUNEI

main15511-BZ010i1NRVE..NGC101..RHD;2NRVE..NGC102..LHD..GEN;1NRVE..NGC101..LHD..(L,M)..GEN202208

BANGLADESH

main15511-BZ010i1NRVE..NGC101..RHD;2NRVE..NGC102..LHD..GEN;1NRVE..NGC101..LHD..(L,M)..GEN202208

NICARAGUA

82715BZK60BRACKET,WIRING HARNESS CLAMP

main82715-BZK60

90105T0347

main90105-T0347

90119T0134

main90119-T0134

90119T0136

main90119-T0136

9020106047

main90201-06047

23 parts on this diagram · 4 diagrams in section
