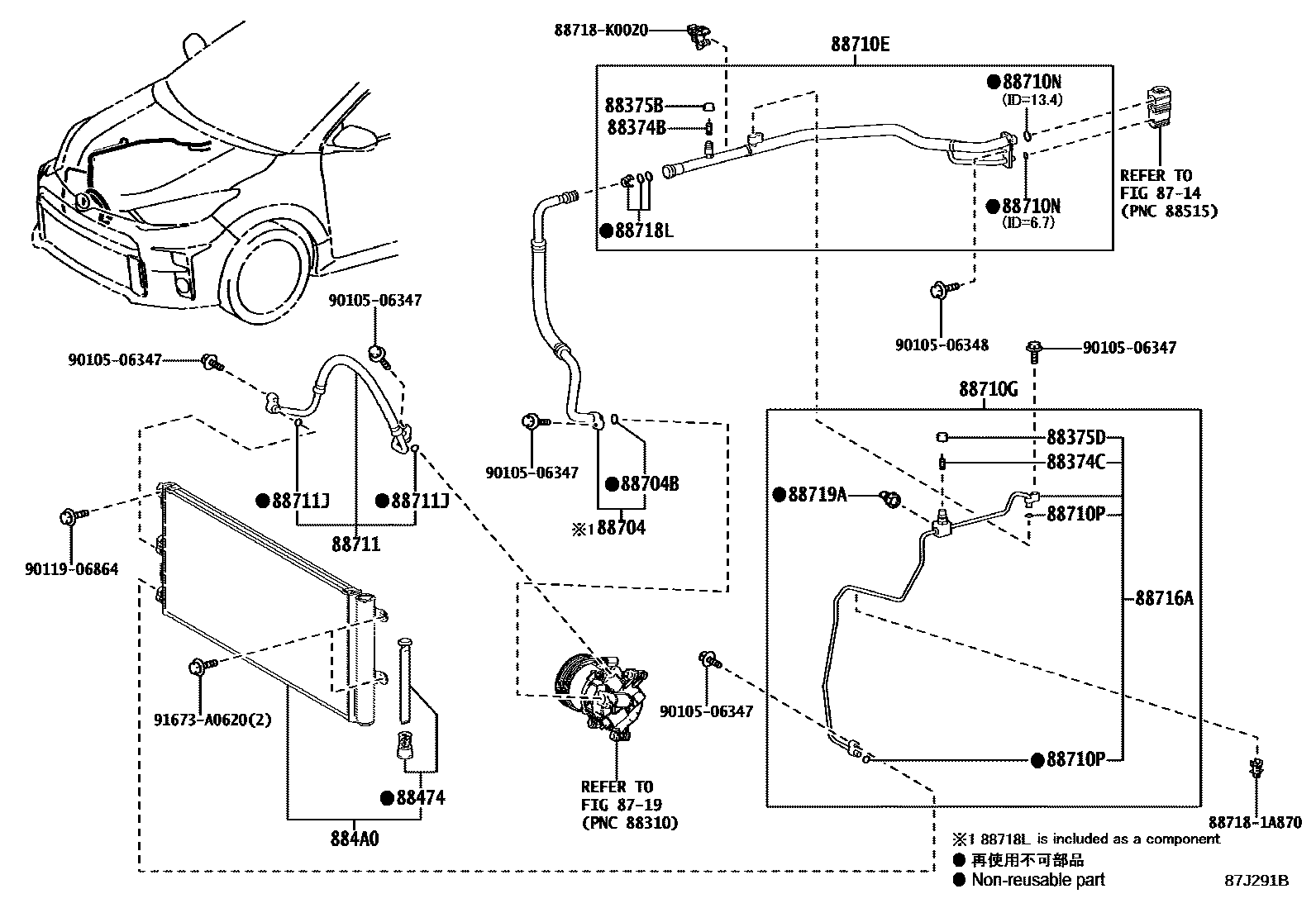

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
MALAYSIA SPEC
88375DCAP, SERVICE VALVE, NO.2
MALAYSIA SPEC
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
MALAYSIA SPEC
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=13.4,OD=18.2
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88716APIPE, COOLER REFRIGERANT LIQUID, A
88718LCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
887181A870PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-1A870
88718K0020PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-K0020
9010506347
main90105-06347
9010506348
main90105-06348
9011906864
main90119-06864
91673A0620
main91673-A0620
25 parts on this diagram · 2 diagrams in section
