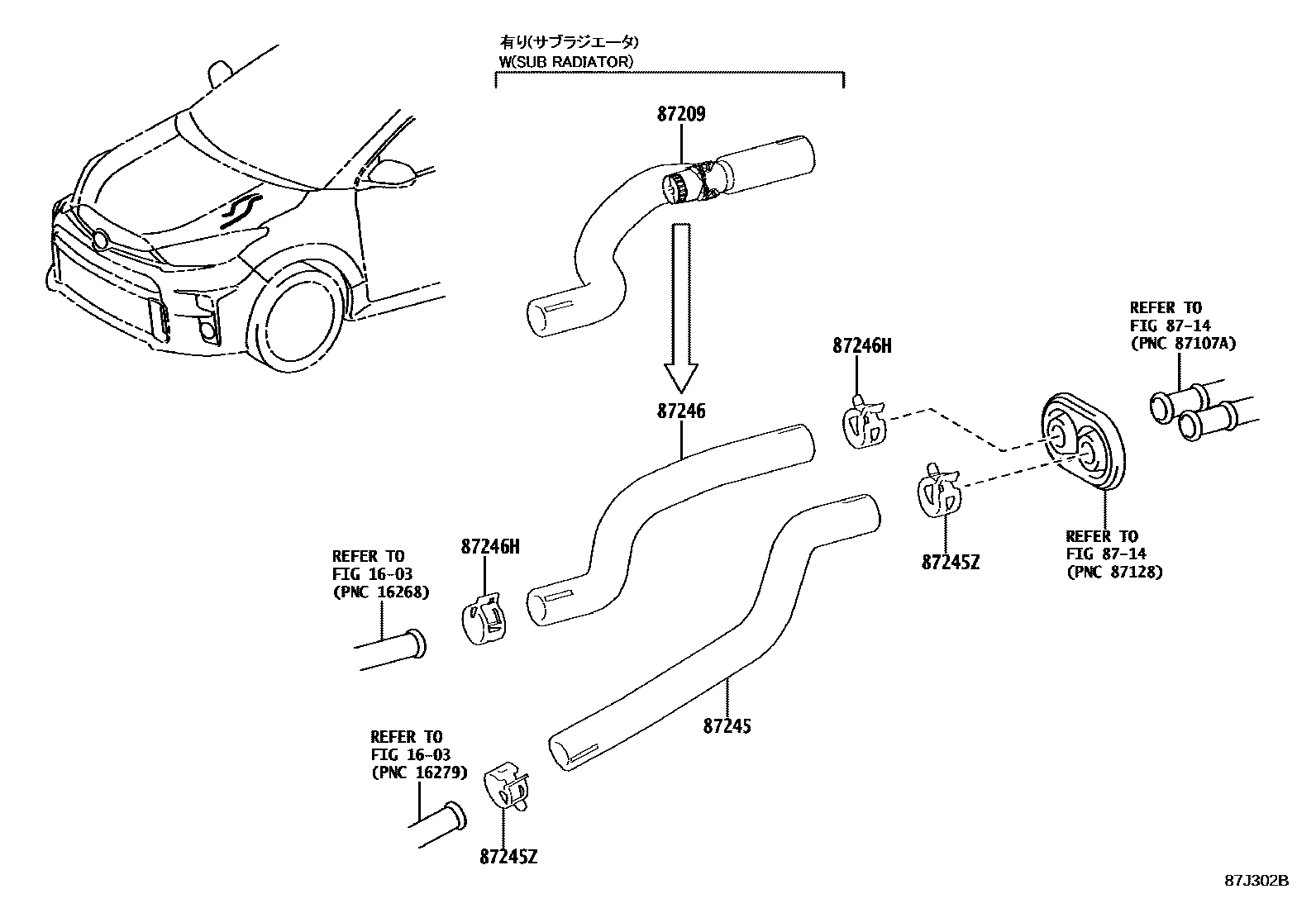

HEATING & AIR CONDITIONING - WATER PIPING

1603

8714

87209HOSE SUB-ASSY, WATER

main87209-52390iGXPA16..6F..(ARL,EUR)202404

SUB RADIATOR-WITH

87245HOSE, HEATER WATER, INLET

main87245-52320iGXPA16202008-202404

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501iGXPA16202008-202404

87246HOSE, HEATER WATER, OUTLET

main87245-52370iGXPA16202008-202404

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96138-42501iGXPA16202008-202404

7 parts on this diagram · 1 diagram in section
