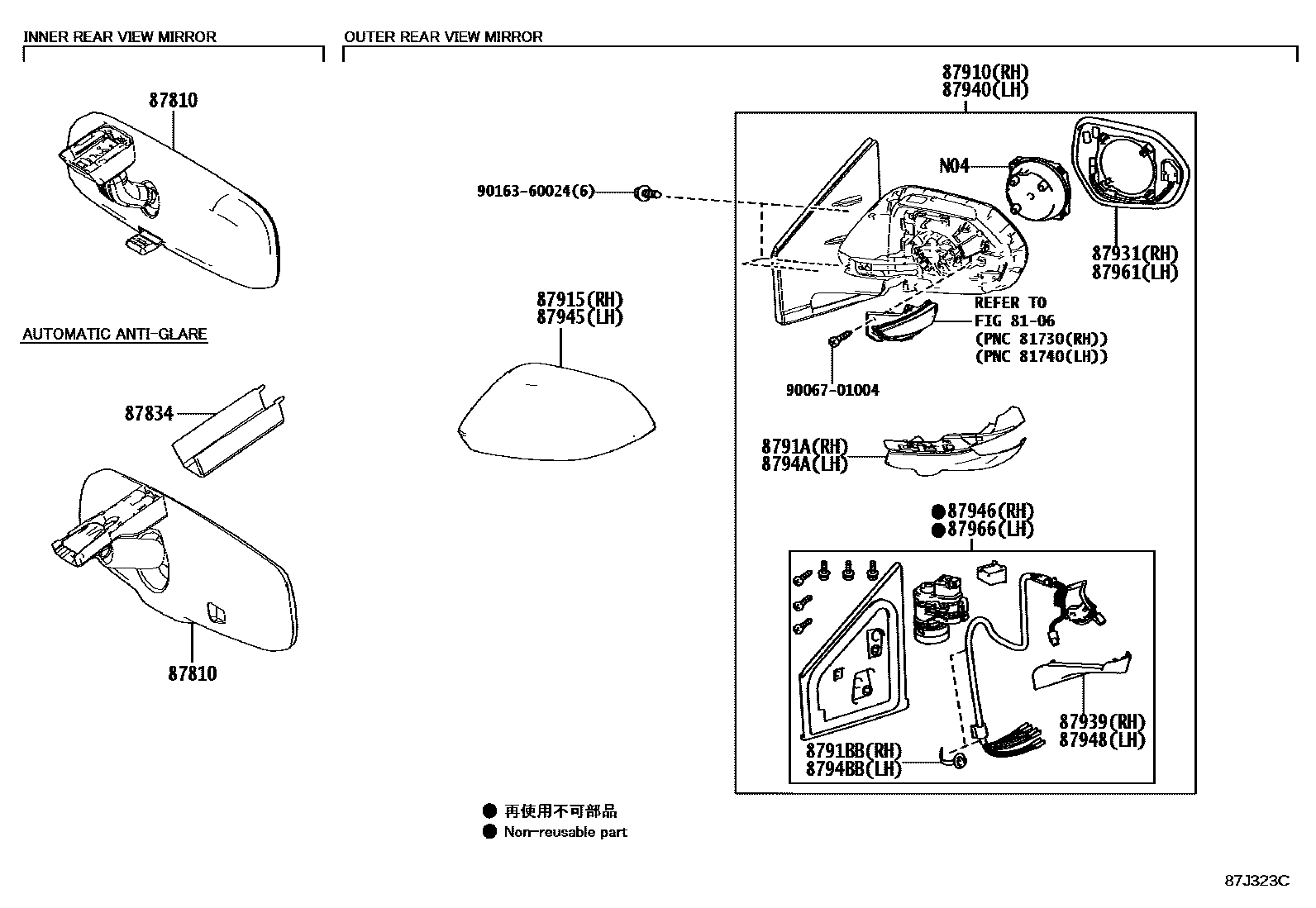

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0C011
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
BLACK,040 ,062 ,089 ,219 ,3U5
BLACK,040 ,089 ,1L5 ,219 ,3U5 ,6X9
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),BLACK,040 ,089 ,1L5 ,1M8 ,219 ,228 ,3U5,6X9 ,9BF
8791ACOVER, OUTER MIRROR, RH NO.2
NO PAINT REQ.
8791BBSTAY, OUTER MIRROR, RH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST),BLACK,040 ,089 ,1L5 ,1M8 ,219 ,228 ,3U5,6X9 ,9BF
BLACK,040 ,089 ,1L5 ,219 ,3U5 ,6X9
BLACK,040 ,062 ,089 ,219 ,3U5
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
NO PAINT REQ.
8794BBSTAY, OUTER MIRROR, LH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
9006701004
main90067-01004
9016360024
main90163-60024
19 parts on this diagram · 1 diagram in section
