ELECTRONIC FUEL INJECTION SYSTEM

89420SENSOR ASSY, VACUUM

main89421-60050iGXPA16..CHI202412

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iGXPA16202008-202404

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-12170iGXPA16..ARL,EUR202404

main89421-78010iGXPA16202008-202404

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-12170iGXPA16..CHI202412

main89421-78010iGXPA16202008-202404

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iGXPA16..CHI202412

89458SENSOR, FUEL PRESSURE

main89458-33030iGXPA16202008-202404

main89458-78030iGXPA16..CHI202412

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iGXPA16..RHD202008-202206

main89458-33042supersedes 89458-33042iGXPA16..ARL,EUR202404

89571COMPUTER, FUEL PUMP CONTROL

main89571-58020iGXPA16..CHI202412

main89571-K0010iGXPA16202008-202404

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-52090iGXPA16..ARL,EUR202404

main89573-K0010iGXPA16202008-202404

89661COMPUTER, ENGINE CONTROL

main89661-5CD90iGXPA16202310-202404

DENSO

main89661-5CJ50iGXPA16..8FC202404

DENSO

main89661-5CL70iGXPA16..6F..EUR202404-202505

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52400iGXPA16..6F..EUR202404-202505

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52420iGXPA16202008-202404

9011906958

main90119-06958

9011906A06

main90119-06A06

9015350015

main90153-50015

9017906274

main90179-06274

9167180614

main91671-80614

9167180616

main91671-80616

9415180600

main94151-80600

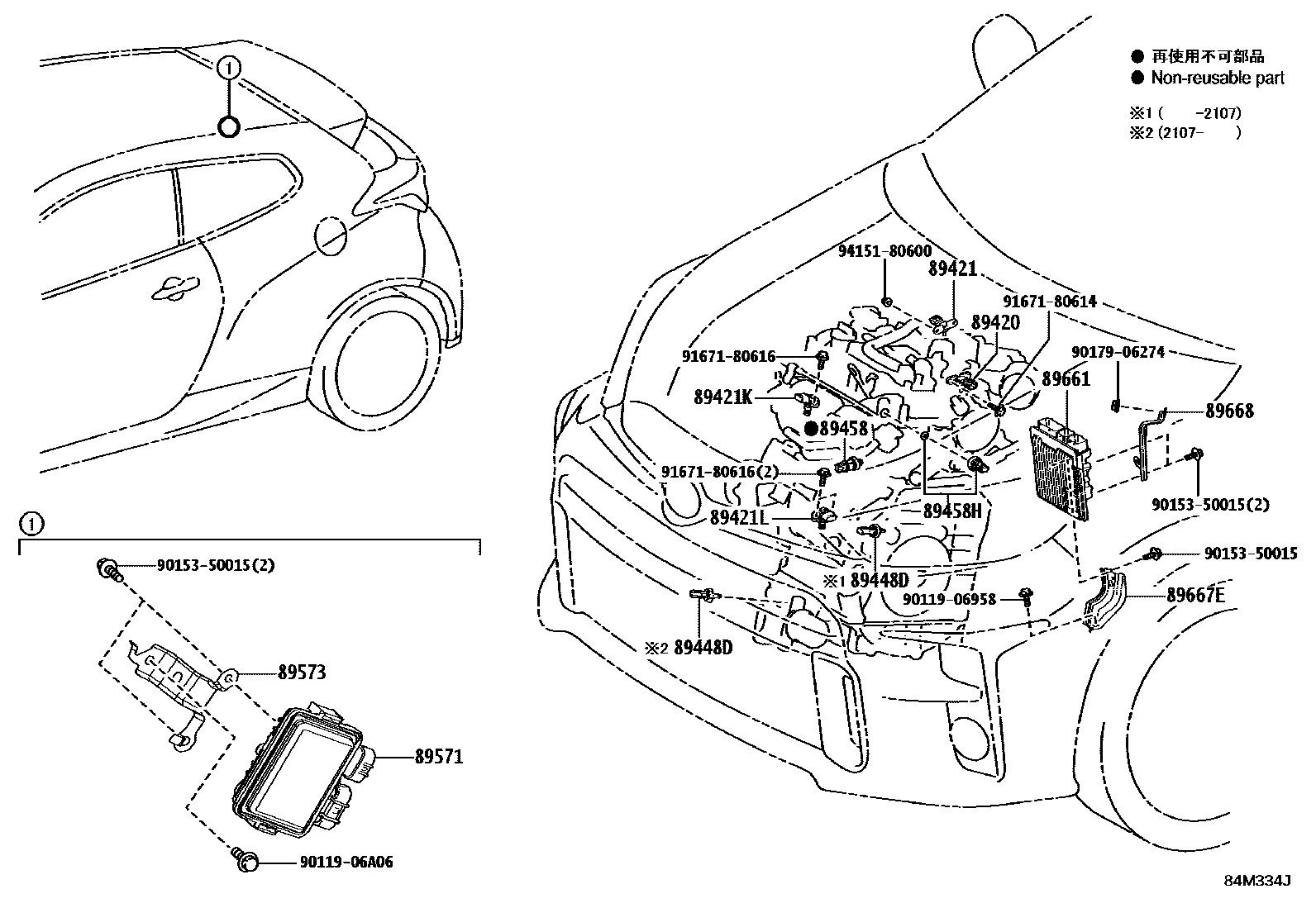

19 parts on this diagram · 1 diagram in section
