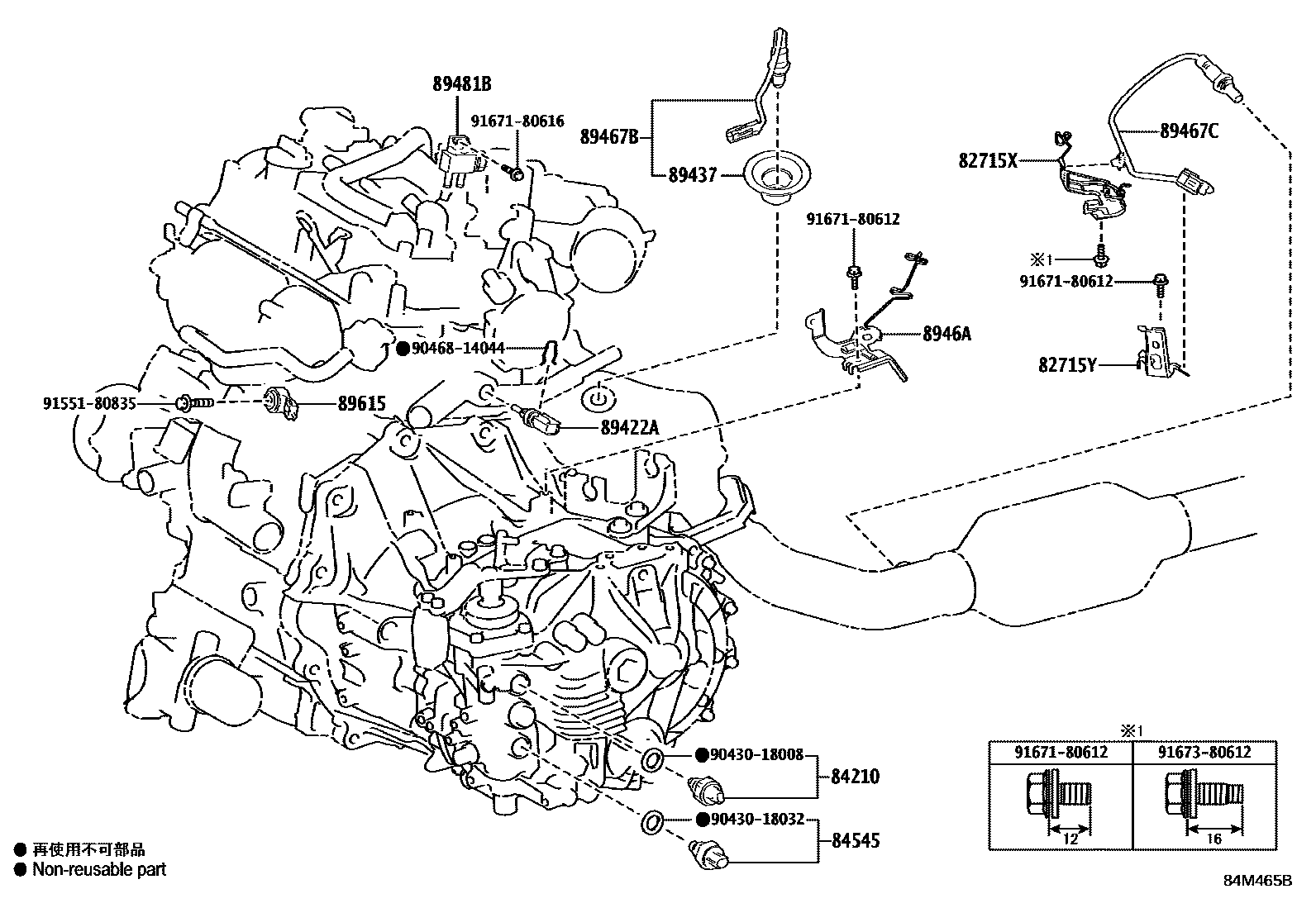

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1CONSOLE BOX 0012 1CONSOLE BOX 0013 1STEERING 0014 1STEERING 0015 1DOOR & ROOF 0016 1DOOR & ROOF 0017 1FLOOR & BACK DOOR

82715BRACKET,WIRING HARNESS CLAMP

main82715-K0490iGXPA16..LHD202008-202404

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-47390iGXPA16..ARL,EUR202008-202404

main82715-76291iGXPA16..CHI202412

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-K0080iGXPA16..CHI202008-202404

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iGXPA16..6F..(ARL,EUR)202008-202404

84545SWITCH, NEUTRAL POSITION

main84545-52010iGXPA16..6F202404-202406

ACTIVE SAFETY PACKAGE-WITHOUT

main84545-52010iGXPA16202008-202404

main84545-52010iGXPA16..6F..EUR202404

"HIGH PERFORMANCE"*(H)OR*(I)&ACTIVE SAFETY PACKAGE-WITHOUT

89422ASENSOR, WATER TEMPERATURE

main89422-33040iGXPA16..ARL,EUR202008-202404

89437COVER, SENSOR

main89437-52020iGXPA16..CHI202008-202404

89467BSENSOR, AIR FUEL RATIO

main89467-52300iGXPA16..CHI202008-202404

main89467-52350iGXPA16..8FC202404

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-52310iGXPA16202008-202404

main89467-52340iGXPA16..CHI202412

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-52050iGXPA16202008-202404

main8946A-52110iGXPA16..8FC202404

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGXPA16..LHD202310-202404

380NM CONVEX D0WN (DOP)

main89481-71010iGXPA16..LHD202310-202404

380NM (DOP)

main89481-71010iGXPA16..EUR202310-202404

TAIWAN SPEC&360NM CONVEX UP (DOP)

main89481-71010iGXPA16..EUR202310-202404

TAIWAN SPEC&360NM CONVEX D0WN (DOP)

main89481-71010iGXPA16..EUR202310-202404

380NM CONVEX UP (DOP)

main89481-71010iGXPA16..EUR202008-202404

89615SENSOR, KNOCK CONTROL

main89615-20090iGXPA16202008-202404

9043018008

main90430-18008

9043018032

main90430-18032

9046814044

main90468-14044

9155180835

main91551-80835

9167180612

main91671-80612

9167180616

main91671-80616

9167380612

main91673-80612

19 parts on this diagram · 17 diagrams in section
