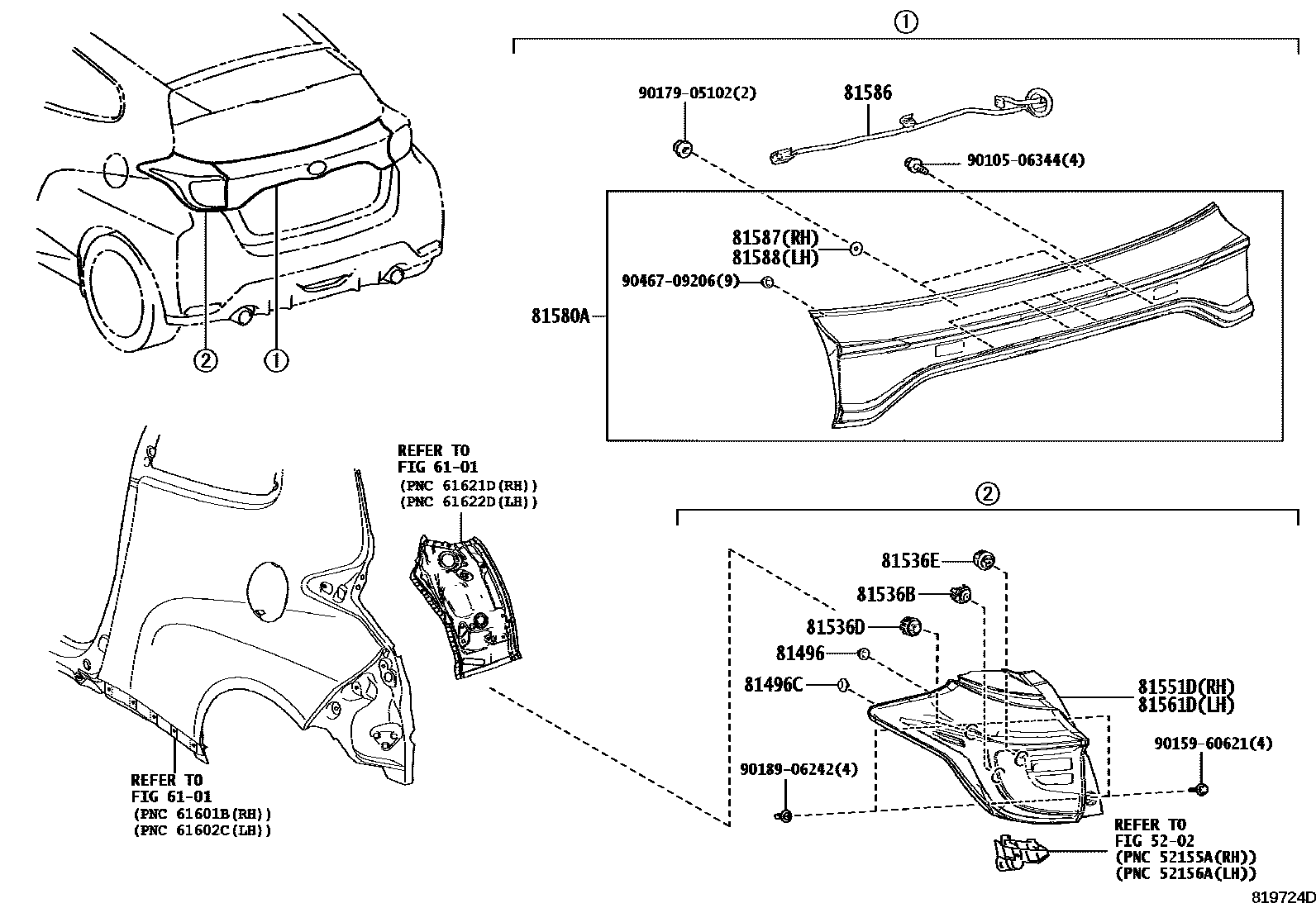

REAR COMBINATION LAMP

5202

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iGXPA16202008-202404

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iGXPA16202008-202404

81536BLED, REAR TURN SIGNAL LAMP

main81536-12D30iGXPA16202008-202404

main81965-48030iGXPA16..ARL,EUR202404

81536DLED, TAILLAMP

main8158A-0D610iGXPA16202008-202404

main81965-70010iGXPA16..ARL,EUR202404

81536ELED, STOP LAMP

main81536-15120iGXPA16202008-202404

main81965-40010iGXPA16..ARL,EUR202404

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52F90iGXPA16..ARL,EUR202404

main81551-K0020iGXPA16202008-202404

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52B40iGXPA16..ARL,EUR202404

main81561-K0020iGXPA16202008-202404

81580ALAMP ASSY, REAR

main81580-52500iGXPA16..RHD202404

main81580-52510iGXPA16..LHD..EUR202404

81586CORD, REAR LAMP

main81935-52040iGXPA16..ARL,EUR202404

81587PROTECTOR, REAR LAMP, RH

main81558-24040iGXPA16..ARL,EUR202404

81588PROTECTOR, REAR LAMP, LH

main81558-24040iGXPA16..ARL,EUR202404

9010506344

main90105-06344

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

9046709206

main90467-09206

18 parts on this diagram · 1 diagram in section
