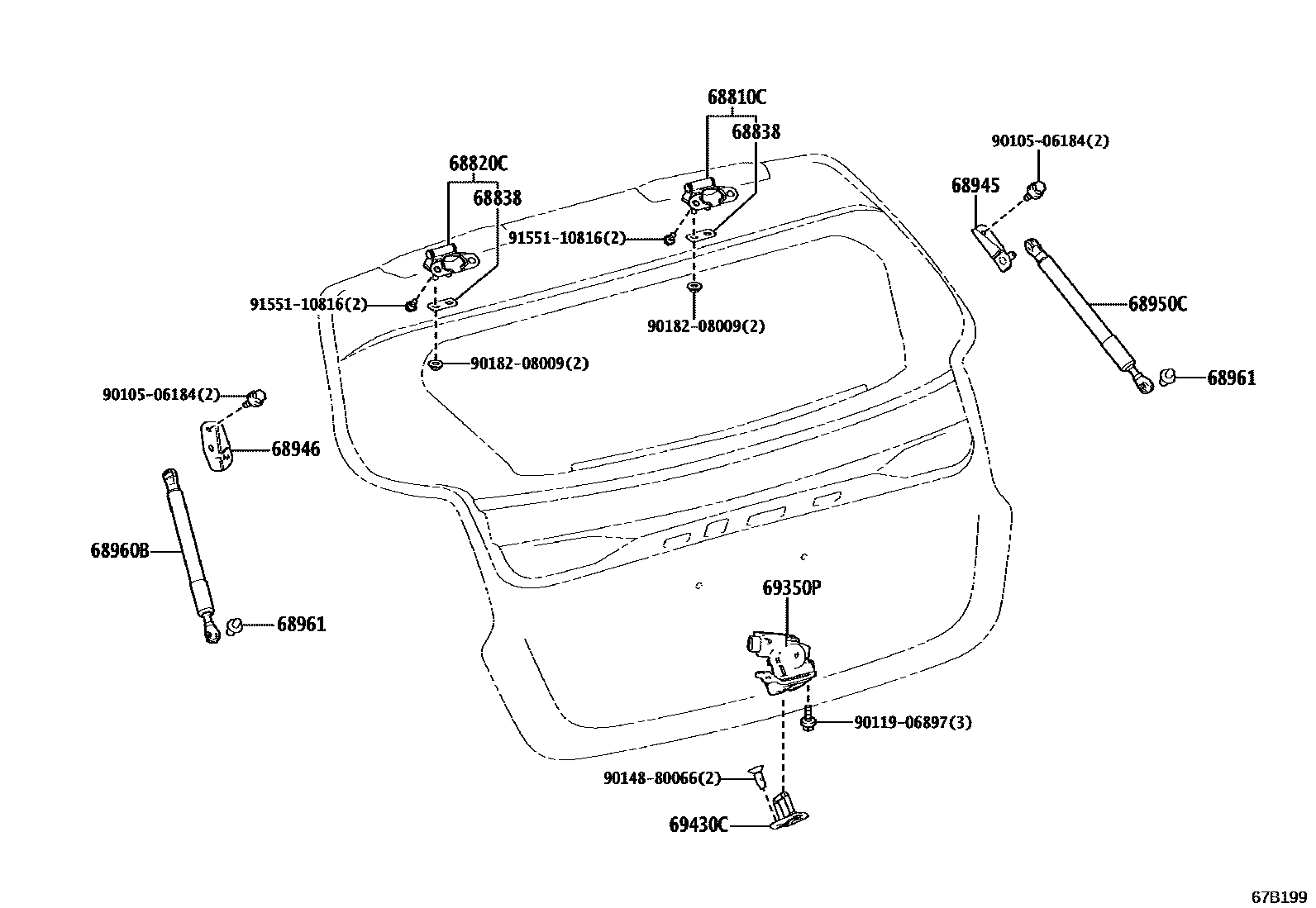

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-42110iGXPA16..ARL,EUR202008-202404

68820CHINGE ASSY, BACK DOOR, LH

main68810-42110iGXPA16202008-202404

68838PAD, BACK DOOR HINGE, NO.1

main68838-47010iGXPA16..ARL,EUR202008-202404

T=1.0

main68838-47020iGXPA16202008-202404

T=1.5

main68838-47030iGXPA16202008-202404

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68946-13081iGXPA16..CHI202008-202404

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-13081iGXPA16202008-202404

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WD20iGXPA16202008-202404

main68950-0WP60iGXPA16..ARL,EUR202404

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WD20iGXPA16202008-202404

main68960-0WP60iGXPA16..ARL,EUR202404

68961BOLT, BACK DOOR STAY

main68961-52020iGXPA16202008-202404

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42090iGXPA16202008-202404

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iGXPA16202008-202404

9010506184

main90105-06184

9011906897

main90119-06897

9014880066

main90148-80066

9018208009

main90182-08009

9155110816

main91551-10816

15 parts on this diagram · 1 diagram in section
