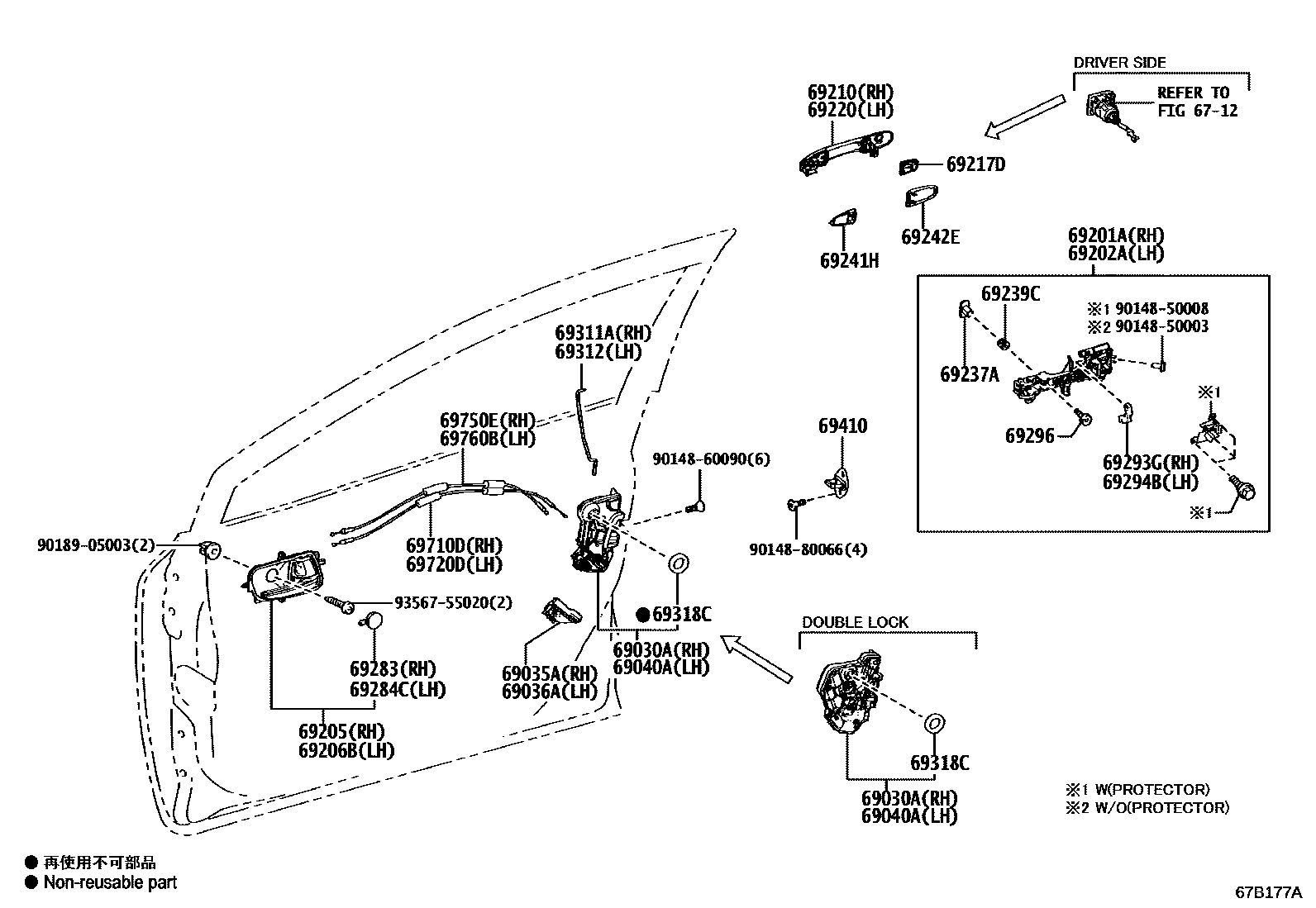

FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-52540iGXPA16..LHD202008-202404

main69030-60290iGXPA16..CHI202412

main69030-76011iGXPA16..RHD..EUR202008-202404

MALTA SPEC

main69030-76011iGXPA16..RHD..EUR202008-202404

IRELAND, CYPRUS SPEC

main69030-76011iGXPA16..ARL202410

main69030-76021iGXPA16..RHD..EUR202008-202404

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iGXPA16202008-202404

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iGXPA16..CHI202008-202404

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-52460iGXPA16..ARL202112-202404

main69040-52470iGXPA16..ARL202008-202112

main69040-76021iGXPA16..RHD..EUR202008-202404

main69040-76031iGXPA16..CHI202008-202404

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iGXPA16..ARL;GXPA16..LHD..EUR202404

IRELAND,CYPRUS SPEC&DIGITAL KEY-WITH

main69201-47070iGXPA16..LHD;GXPA16..ARL202008-202404

IRELAND, CYPRUS SPEC

main69201-47070iGXPA16..LHD;GXPA16..ARL202008-202404

MALTA SPEC

main69201-47070iGXPA16..ARL;GXPA16..LHD..EUR202404

IRELAND,CYPRUS SPEC

main69201-47070iGXPA16..ARL;GXPA16..LHD..EUR202404

MALTA SPEC&DIGITAL KEY-WITH

main69201-47070iGXPA16..CHI202412

main69201-52190iGXPA16..RHD..EUR202008-202404

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iGXPA16202008-202404

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52160-C0iGXPA16202008-202404

BLACK,TRIM2#

main69205-52220-C0iGXPA16..CHI202404

BLACK,TRIM2#,3#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52160-C0iGXPA16202008-202404

BLACK,TRIM2#

main69206-52220-C0iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-K0010-A0iGXPA16..RHD202008-202404

SUPER WHITE 2,040

main69210-K0010-A3iGXPA16..RHD..EUR202008-202404

PLATINUM WHITE PEARL MC.,089

main69210-K0010-C2iGXPA16..ARL202008-202404

PRECIOUS BLACK,219

main69210-K0010-D5iGXPA16..ARL202008-202404

EMOTIONAL RED 2,3U5

main69210-K0010-P0iGXPA16..RHD202404

PRECIOUS METAL,1L5

main69210-K0020-A0iGXPA16..LHD202008-202404

SUPER WHITE 2,040

main69210-K0020-A3iGXPA16..CHI202008-202404

PLATINUM WHITE PEARL MC.,089

main69210-K0020-A3iGXPA16..LHD..8FC202404

PLATINUM WHITE PEARL MC.,089 ,9BF

main69210-K0020-C2iGXPA16..LHD..EUR202008-202404

PRECIOUS BLACK,219

main69210-K0020-D5iGXPA16..CHI202008-202404

EMOTIONAL RED 2,3U5

main69210-K0020-P0iGXPA16..LHD..EUR202404

PRECIOUS METAL,1L5

main69210-K0020-P6iGXPA16..LHD..6F..EUR202404

MATTE STEALTH GRAY,1M8

main69211-33120-A0iGXPA16..ARL202008-202112

SUPER WHITE 2,040

main69211-33120-A1iGXPA16..ARL202008-202112

PLATINUM WHITE PEARL MC.,089

main69211-33120-C4iGXPA16..ARL202008-202112

PRECIOUS BLACK,219

main69211-33120-D4iGXPA16..ARL202008-202112

EMOTIONAL RED 2,3U5

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-47020iGXPA16202008-202404

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-K0010-A0iGXPA16..LHD..EUR202008-202404

SUPER WHITE 2,040

main69210-K0010-A3iGXPA16..LHD..6F..EUR202404

PLATINUM WHITE PEARL MC.,089 ,9BF

main69210-K0010-A3iGXPA16..CHI202008-202404

PLATINUM WHITE PEARL MC.,089

main69210-K0010-C2iGXPA16..CHI202008-202404

PRECIOUS BLACK,219

main69210-K0010-D5iGXPA16..CHI202008-202404

EMOTIONAL RED 2,3U5

main69210-K0010-P0iGXPA16..CHI202404

PRECIOUS METAL,1L5

main69210-K0010-P6iGXPA16..LHD..6F..EUR202404

MATTE STEALTH GRAY,1M8

main69210-K0020-A0iGXPA16..RHD202008-202404

SUPER WHITE 2,040

main69210-K0020-A3iGXPA16..RHD..EUR202008-202404

PLATINUM WHITE PEARL MC.,089

main69210-K0020-C2iGXPA16..ARL202008-202404

PRECIOUS BLACK,219

main69210-K0020-D5iGXPA16..ARL202008-202404

EMOTIONAL RED 2,3U5

main69210-K0020-P0iGXPA16..RHD202404

PRECIOUS METAL,1L5

main69211-47021-A0iGXPA16..ARL202008-202112

SUPER WHITE 2,040

main69211-47021-A2iGXPA16..ARL202008-202112

PLATINUM WHITE PEARL MC.,089

main69211-47021-C4iGXPA16..ARL202008-202112

PRECIOUS BLACK,219

main69211-47021-D6iGXPA16..ARL202008-202112

EMOTIONAL RED 2,3U5

69237ANUT, FRONT DOOR HANDLE

main69237-62010iGXPA16..CHI202008-202404

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iGXPA16202008-202404

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-52030iGXPA16202008-202404

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-52040iGXPA16202008-202404

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-52010-C1iGXPA16202008-202404

BLACK,TRIM2#

main69283-52010-C1iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-52010-C1iGXPA16202008-202404

BLACK,TRIM2#

main69283-52010-C1iGXPA16..ARL,EUR202404

BLACK,TRIM2#,3#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iGXPA16202008-202404

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iGXPA16202008-202404

69296SCREW, DOOR INSIDE HANDLE

main69296-30010iGXPA16202008-202212

main90148-50006iGXPA16202212-202404

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-52270iGXPA16202008-202404

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-52240iGXPA16202008-202404

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGXPA16202008-202404

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-60030iGXPA16202008-202404

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-52250iGXPA16202008-202404

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-52250iGXPA16202008-202404

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-52180iGXPA16202008-202404

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-52180iGXPA16202008-202404

9014850003

main90148-50003

9014850008

main90148-50008

9014860090

main90148-60090

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

35 parts on this diagram · 1 diagram in section
