INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

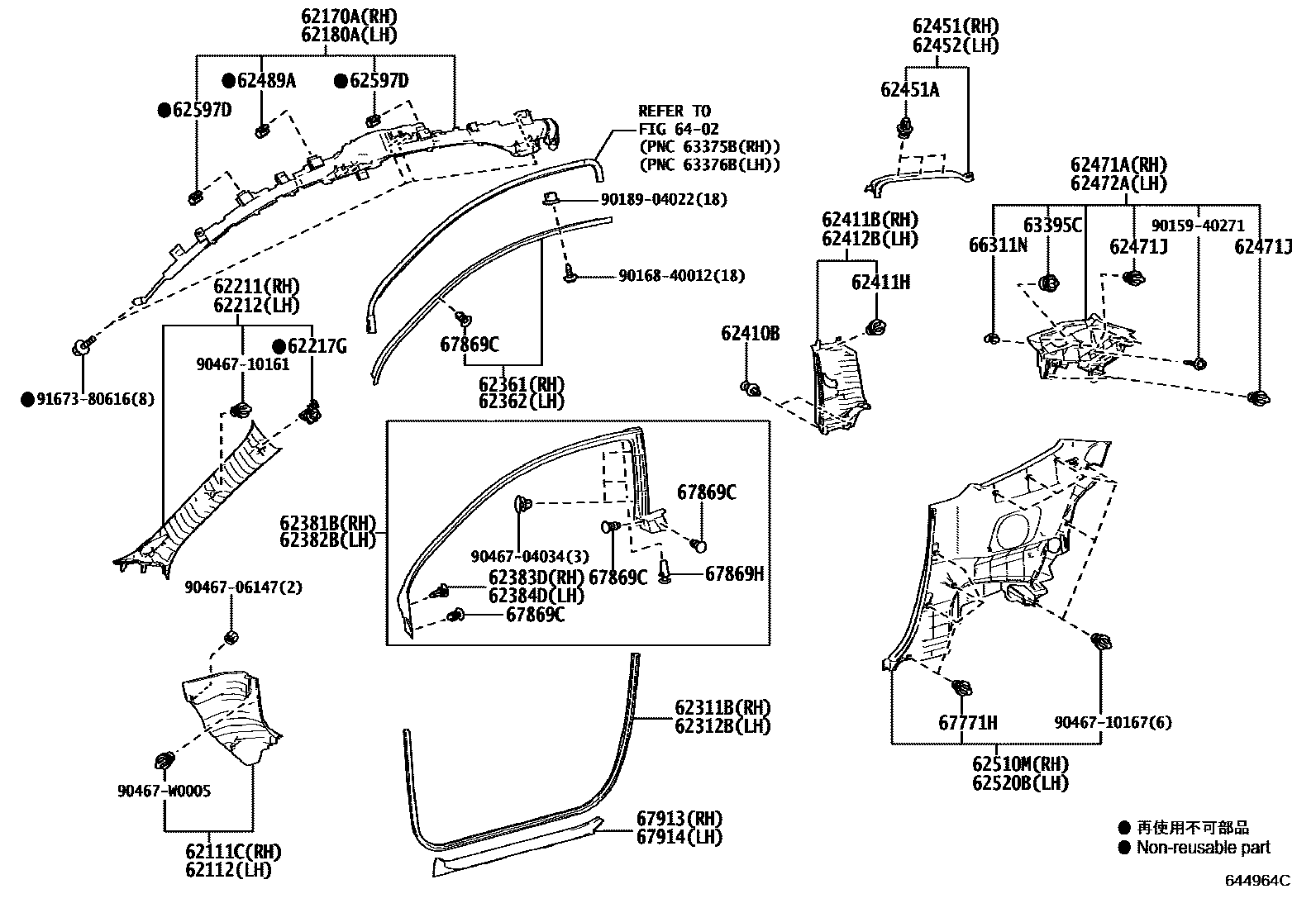

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-K0010-C0i202008-202404
BLACK,TRIM2#
main62111-K0010-C0i202404
BLACK,TRIM2#,3#
main62111-K0030-C1i202404
BLACK,TRIM2#,3#
main62111-K0030-C1i202008-202404
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-K0020-C0i202008-202404
BLACK,TRIM2#
main62112-K0020-C0i202404
BLACK,TRIM2#,3#
main62112-K0050-C1i202404
BLACK,TRIM2#,3#
main62112-K0050-C1i202008-202404
BLACK,TRIM2#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-52180i202008-202207
sub62170-52181
main62170-52181i202208-202404
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-52180i202008-202207
sub62180-52181
main62180-52181i202208-202404
62211GARNISH, FRONT PILLAR, RH
main62211-52420-C0i202008-202112
BLACK,TRIM2#
main62211-52430-C0i202112-202212
BLACK,TRIM2#
sub62211-52430
main62211-52430-C0i202112-202212
HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52430
main62211-52430-C0i202008-202112
HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52430
main62211-52430-C1i202212-202404
BLACK,TRIM2#
sub62211-52430
main62211-52430-C1i202212-202404
HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52430
main62211-52430-C1i202404
SPEAKER-8SPEAKER(JBL),BLACK,TRIM2#,3#
sub62211-52430
main62211-52430-C1i202410
BLACK,TRIM2#,3#
sub62211-52430
main62211-52440-C0i202008-202112
COSTA RICA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
GUATEMALA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
TAIWAN SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
INDONESIA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
PHILIPPINES SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
MALAYSIA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
KENYA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
SOUTH AFRICA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
MEXICO SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
THAILAND SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
SINGAPORE SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
CHILE SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
ARGENTINA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
PERU SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202112
URUGUAY SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202010-202112
NEW CALEDONIA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202008-202212
BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
MEXICO SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
THAILAND SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
SINGAPORE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
CHILE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
ARGENTINA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
PERU SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
URUGUAY SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
COSTA RICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
GUATEMALA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
TAIWAN SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
INDONESIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
PHILIPPINES SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
MALAYSIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
KENYA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
SOUTH AFRICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C0i202112-202212
NEW CALEDONIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
SOUTH AFRICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
SINGAPORE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
CHILE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
ARGENTINA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
PERU SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
URUGUAY SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
COSTA RICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
GUATEMALA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
TAIWAN SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
INDONESIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
PHILIPPINES SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
MALAYSIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
KENYA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
NEW CALEDONIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
MEXICO SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202212-202404
THAILAND SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62211-52440
main62211-52440-C1i202404
BLACK,TRIM2#,3#
sub62211-52440
62212GARNISH, FRONT PILLAR, LH
main62212-52430-C0i202008-202112
BLACK,TRIM2#
main62212-52440-C0i202008-202112
HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52440
main62212-52440-C0i202112-202212
BLACK,TRIM2#
sub62212-52440
main62212-52440-C0i202112-202212
HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52440
main62212-52440-C1i202212-202404
HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52440
main62212-52440-C1i202212-202404
BLACK,TRIM2#
sub62212-52440
main62212-52440-C1i202404
SPEAKER-8SPEAKER(JBL),BLACK,TRIM2#,3#
sub62212-52440
main62212-52440-C1i202410
BLACK,TRIM2#,3#
sub62212-52440
main62212-52450-C0i202008-202112
CHILE SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
MEXICO SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
THAILAND SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
SINGAPORE SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
ARGENTINA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
PERU SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
URUGUAY SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
COSTA RICA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
GUATEMALA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
TAIWAN SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
INDONESIA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
PHILIPPINES SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
MALAYSIA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
KENYA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202112
SOUTH AFRICA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202010-202112
NEW CALEDONIA SPEC&HI GRADE PACKAGE&ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202008-202212
BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
MEXICO SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
THAILAND SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
SINGAPORE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
CHILE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
ARGENTINA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
PERU SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
URUGUAY SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
COSTA RICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
GUATEMALA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
TAIWAN SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
INDONESIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
PHILIPPINES SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
MALAYSIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
KENYA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
SOUTH AFRICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C0i202112-202212
NEW CALEDONIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
THAILAND SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
SINGAPORE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
CHILE SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
ARGENTINA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
PERU SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
URUGUAY SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
COSTA RICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
GUATEMALA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
TAIWAN SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
INDONESIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
PHILIPPINES SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
MALAYSIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
KENYA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
SOUTH AFRICA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
NEW CALEDONIA SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202212-202404
MEXICO SPEC&HI GRADE PACKAGE,BLACK,TRIM2#
sub62212-52450
main62212-52450-C1i202404
BLACK,TRIM2#,3#
sub62212-52450
62217GCLIP, FRONT PILLAR GARNISH
main62217-42050i202008-202404
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-52260i202008-202404
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62311-52260i202008-202404
62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
main62361-52010i202008-202404
62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
main62362-52010i202008-202404
62381BWEATHERSTRIP, ROOF SIDE RAIL, RH
main62381-52050i202008-202404
62382BWEATHERSTRIP, ROOF SIDE RAIL, LH
main62382-52050i202008-202404
62383DRETAINER, ROOF SIDE RAIL, RH
main67867-50050i202008-202404
62384DRETAINER, ROOF SIDE RAIL, LH
main67867-50050i202008-202404
62410BCLIP
main90467-10216i202008-202404
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-52250-C0i202008-202404
BLACK,TRIM2#
main62411-52250-C0i202404
BLACK,TRIM2#,3#
62411HCLIP
main90467-10167i202008-202404
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-52250-C0i202008-202404
BLACK,TRIM2#
main62412-52250-C0i202404
BLACK,TRIM2#,3#
62451GARNISH, ROOF SIDE INNER, RH
main62451-52040-C0i202008-202404
BLACK,TRIM2#
main62451-52040-C0i202404
BLACK,TRIM2#,3#
62451ACLIP, SIDE GARNISH
main90467-10167i202008-202404
62452GARNISH, ROOF SIDE INNER, LH
main62452-52050-C0i202008-202404
BLACK,TRIM2#
main62452-52050-C0i202404
BLACK,TRIM2#,3#
62471AGARNISH, ROOF SIDE, INNER RH
main62471-52470-C0i202008-202404
BLACK,TRIM2#
main62471-52470-C0i202404
BLACK,TRIM2#,3#
62471JCLIP (FOR ROOF SIDE GARNISH)
main67771-28150i202008-202404
62472AGARNISH, ROOF SIDE, INNER LH
main62472-52540-C0i202008-202404
BLACK,TRIM2#
main62472-52540-C0i202404
BLACK,TRIM2#,3#
62489ACLIP, ROOF SIDE INNER GARNISH
main62489-28010i202008-202404
62510MPANEL ASSY, QUARTER TRIM, RH
main62510-52140-C0i202008-202112
BLACK,TRIM2#
main62510-52150-C0i202008-202112
ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
main62510-52150-C0i202008-202404
BLACK,TRIM2#
main62510-52150-C0i202404
BLACK,TRIM2#,3#
62520BPANEL ASSY, QUARTER TRIM, LH
main62520-52110-C0i202008-202112
BLACK,TRIM2#
main62520-52120-C0i202008-202112
ACTIVE NOISE CONTROL-WITH,BLACK,TRIM2#
main62520-52120-C0i202008-202404
BLACK,TRIM2#
main62520-52120-C0i202404
BLACK,TRIM2#,3#
62597DCLIP
main90467-18017i202008-202404
63395CCLIP(FOR ROOF SIDE INNER GARNISH)
main63395-12150i202008-202404
6402
66311NHOOK, ROPE
main66311-10010-C0i202008-202404
BLACK,TRIM2#
main66311-10010-C0i202404
BLACK,TRIM2#,3#
67771HRETAINER, DOOR TRIM
main67771-28150i202008-202404
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
main67869-20030i202008-202404
67869HCLIP, ROOF SIDE RAIL WEATHERSTRIP
main67869-20070i202008-202404
67913PLATE, FRONT DOOR SCUFF, RH
main67913-52210-C0i202008-202404
BLACK,TRIM2#
main67913-52210-C0i202404
BLACK,TRIM2#,3#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-52280-C0i202008-202404
BLACK,TRIM2#
main67914-52280-C0i202404
BLACK,TRIM2#,3#
9015940271
main90159-40271
9016840012
main90168-40012
9018904022
main90189-04022
9046704034
main90467-04034
9046706147
main90467-06147
9046710161
main90467-10161
9046710167
main90467-10167
90467W0005
main90467-W0005
9167380616
main91673-80616

46 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
