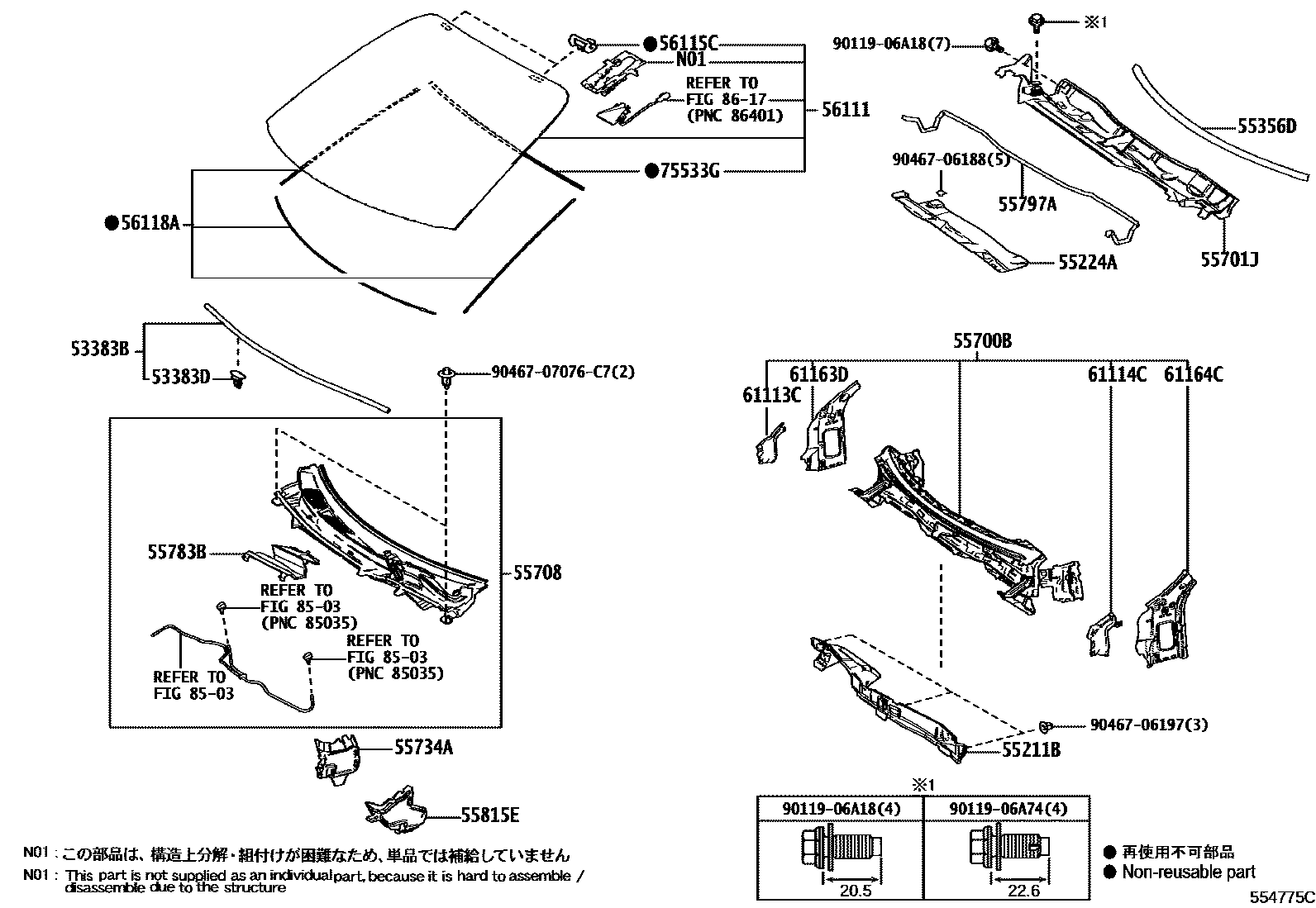

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-K0010iGXPA16202008-202404

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7iGXPA16..CHI202412

55211BSILENCER, FRONT PANEL

main55211-K0020iGXPA16..LHD202008-202404

main55211-K0050iGXPA16..RHD202008-202404

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-52050iGXPA16202008-202404

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-K2010iGXPA16..CHI202412

55700BCOWL ASSY

main55700-52460iGXPA16..RHD202008-202404

main55700-52470iGXPA16..LHD202008-202404

main55700-52520iGXPA16..RHD202404

main55700-52530iGXPA16..CHI202412

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52420iGXPA16..RHD202008-202404

main55701-52430iGXPA16..LHD202008-202404

main55701-52480iGXPA16..RHD202404

main55701-52490iGXPA16..CHI202412

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0W010iGXPA16..CHI202412

main55708-K0010iGXPA16..RHD202008-202404

main55708-0W020supersedes 55708-0W010iGXPA16..LHD202008-202202

CROATIA SPEC

55734APLATE, WATER GUARD, RH

main55735-52170iGXPA16..CHI202412

main55735-K0020iGXPA16..LHD202008-202404

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-K0010iGXPA16..RHD202404

main55783-K0020iGXPA16..CHI202412

55797ASEAL, COWL WATER EXTRACT

main55797-52100iGXPA16..ARL,EUR202404

main55797-K0010iGXPA16202008-202404

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-K0020iGXPA16..LHD..EUR202404

main55815-K0060iGXPA16..RHD202404

56111GLASS, WINDSHIELD

main56101-52W30iGXPA16..LHD..EUR202404

main56101-52W50iGXPA16..RHD202404

main56101-52W70iGXPA16..CHI202412

main56101-52K70iGXPA16..RHD..EUR202008-202404

ENTRY PACKAGE

main56101-52K90iGXPA16..RHD..EUR202008-202404

GUADELOUPE SPEC&HEAD UP DISPLAY-WITH

main56101-52L00supersedes 56101-52K80iGXPA16..EUR202008-202404

HEAD UP DISPLAY-WITH

main56101-5C380iGXPA16..LHD..6F..EUR202404

SEBASTIEN OGIER EDITION *(S)

main56101-5C390iGXPA16..RHD..6F..EUR202404

SEBASTIEN OGIER EDITION *(S)

56115CSTOPPER, WINDSHIELD GLASS

main56115-50100×2iGXPA16..CHI202412

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-64010iGXPA16..ARL,EUR202404

*D,L=1234 OR 650,KALLE ROVANPERA EDITION *(K)

61113CPANEL, SIDE, INNER RH

main61113-K0010iGXPA16202008-202404

61114CPANEL, SIDE, INNER LH

main61114-K0010iGXPA16202008-202404

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-52060iGXPA16202008-202404

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-52070iGXPA16202008-202404

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-52310iGXPA16202008-202404

8503

8617

9011906A18

main90119-06A18

9011906A74

main90119-06A74

9046706188

main90467-06188

9046706197

main90467-06197

9046707076C7

main90467-07076C7

27 parts on this diagram · 2 diagrams in section
