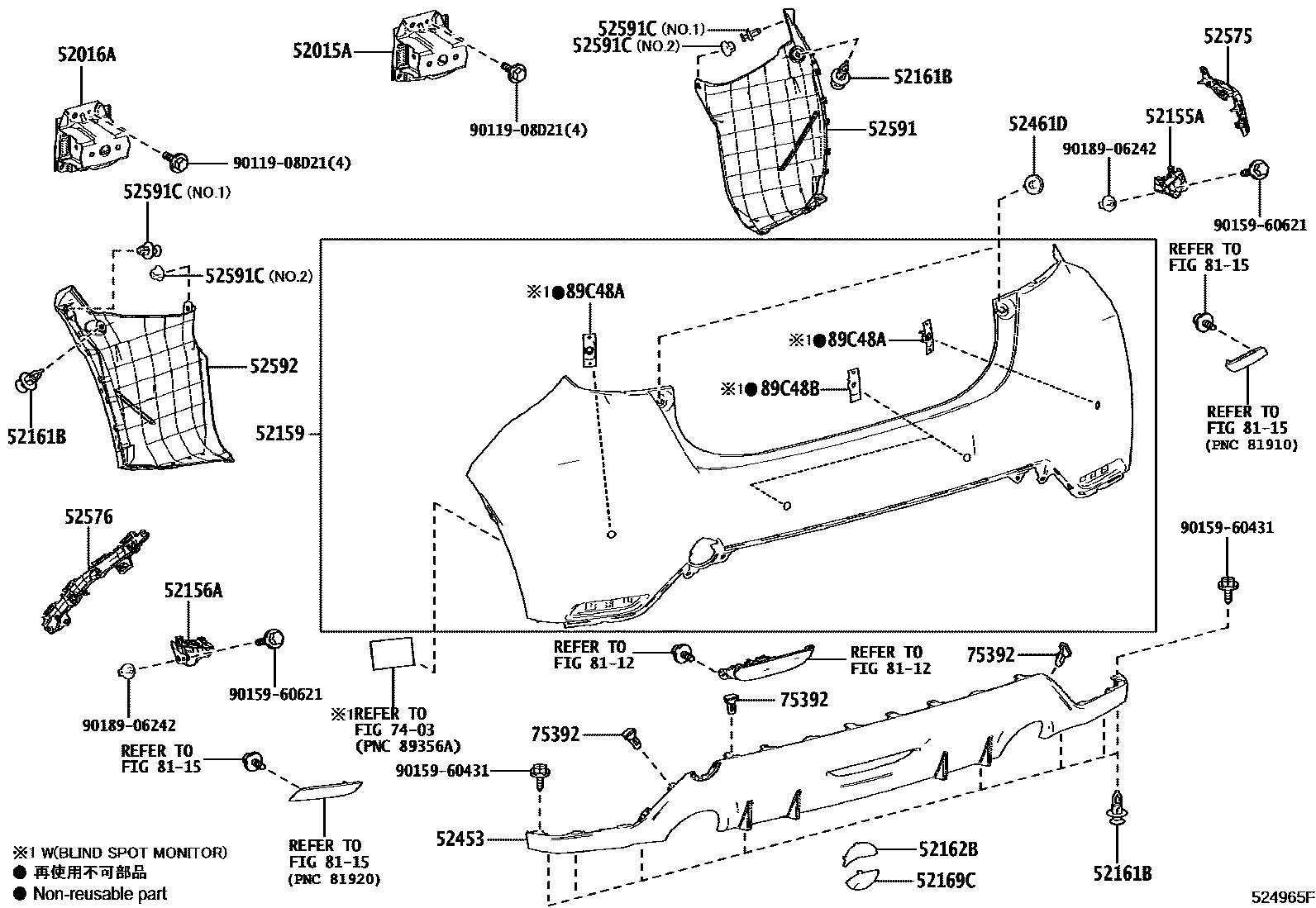

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52156ASUPPORT, REAR BUMPER SIDE, LH
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52159COVER, REAR BUMPER
PAINT REQ.,ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
PAINT REQ.,ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52162BPLATE, REAR BUMPER, NO.1
NEW CALEDONIA SPEC&CLEARANCE & BACK SONAR-WITH
NEW CALEDONIA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
MEXICO SPEC&CLEARANCE & BACK SONAR-WITH
MEXICO SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH
TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH
TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
INDONESIA SPEC&CLEARANCE & BACK SONAR-WITH
PHILIPPINES SPEC&CLEARANCE & BACK SONAR-WITH
PHILIPPINES SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH
SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH
BURNEI SPEC&CLEARANCE & BACK SONAR-WITH
DIGITAL KEY-WITH&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
KALLE ROVANPERA EDITION *(K)&"HIGH PERFORMANCE"*(H)OR*(I)&DIGITAL KEY-WITH&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
THAILAND SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
INDONESIA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
BURNEI SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
DIGITAL KEY-WITH
DIGITAL KEY-WITH&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
NO PAINT REQ.
NO PAINT REQ.,ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52453GUARD, REAR BUMPER, CENTER
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52461DCUSHION, REAR BUMPER
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52575RETAINER, REAR BUMPER SIDE, RH
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52576RETAINER, REAR BUMPER SIDE, LH
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52591SEAL, REAR BUMPER SIDE, RH
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
52591CCLIP, REAR BUMPER SIDE SEAL
NO.1:REFER ILLUST.
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),NO.1:REFER ILLUST.
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA),NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
52592SEAL, REAR BUMPER SIDE, LH
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
7403
75392RETAINER, OUTSIDE MOULDING
ARGENTINA SPEC&SEBASTIEN OGIER EDITION *(S)&REAR SPOILER-WITH(FOR GR(RALLY))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
ARGENTINA SPEC&KALLE ROVANPERA EDITION *(K)&REAR SPOILER-WITH(FOR GR(CIRCUIT))&CLEARANCE & BACK SONAR-WITH & WITH(*RCTA)
8112
8115
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011908D21
9015960431
9015960621
9018906242
25 parts on this diagram · 2 diagrams in section
